HC PL APO 40x/1,25 GLYC motCORR CS2

Article Number 11506423
Correction Ring (CORR) motCORR
Coverglass With
Exit Pupil Position/DIC prism E
Field of View (FOV in mm) 24
Free Working Distance (WD in mm) 0.35
Immersion GLYC
Iris Diaphragm Without
Magnification 40⨉
Contrasting Methodes TL-BF, TL-DIC, FLUO
Numerical Aperture 1.25
Objective Thread M25
Objective Type PLAN APO
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques CS2, MotCorr
Transmission UV (340nm)
FigureHC PL APO 40x/1,25 GLYC motCORR CS2

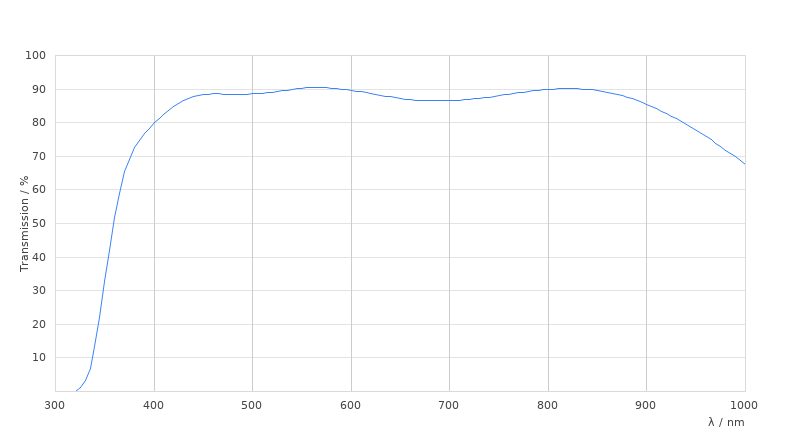

Transmission CurveHC PL APO 40x/1,25 GLYC motCORR CS2
Dimension SheetHC PL APO 40x/1,25 GLYC motCORR CS2
