| Article Number | 11556036 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | With & without |
| Exit Pupil Position/DIC prism | - |
| Field of View (FOV in mm) | 20 |
| Free Working Distance (WD in mm) | 11.2 |
| Immersion | Dry |
| Iris Diaphragm | Without |
| Magnification | 2.5⨉ |
| Contrasting Methodes | TL-BF, TL-P, TL-POL, IL-BF, IL-P, IL-POL, FLUO |
| Numerical Aperture | 0.07 |
| Objective Thread | M25 |
| Objective Type | N PLAN |
| Spring Loaded | No |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | IL, POL |
| Transmission | UV (365nm) |
Figure

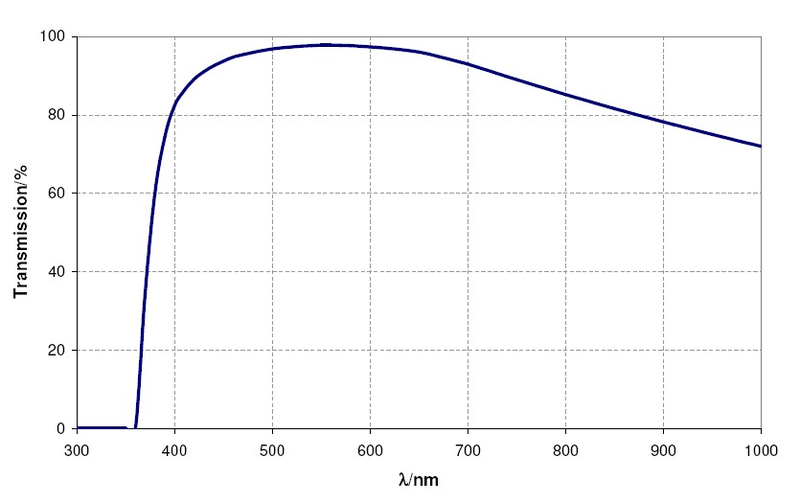

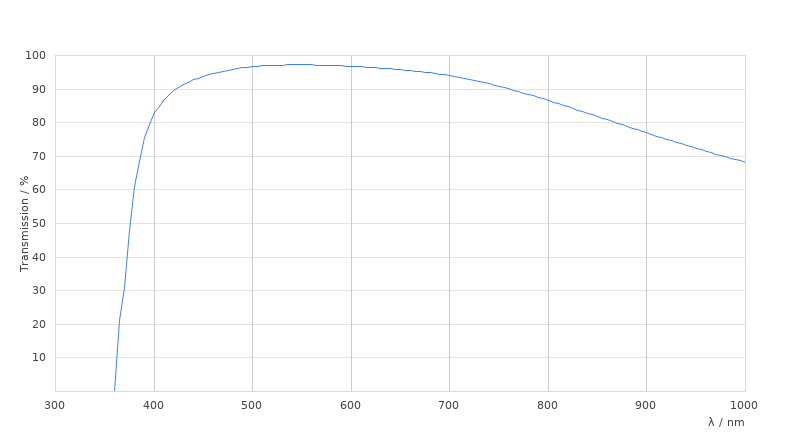

Transmission Curve

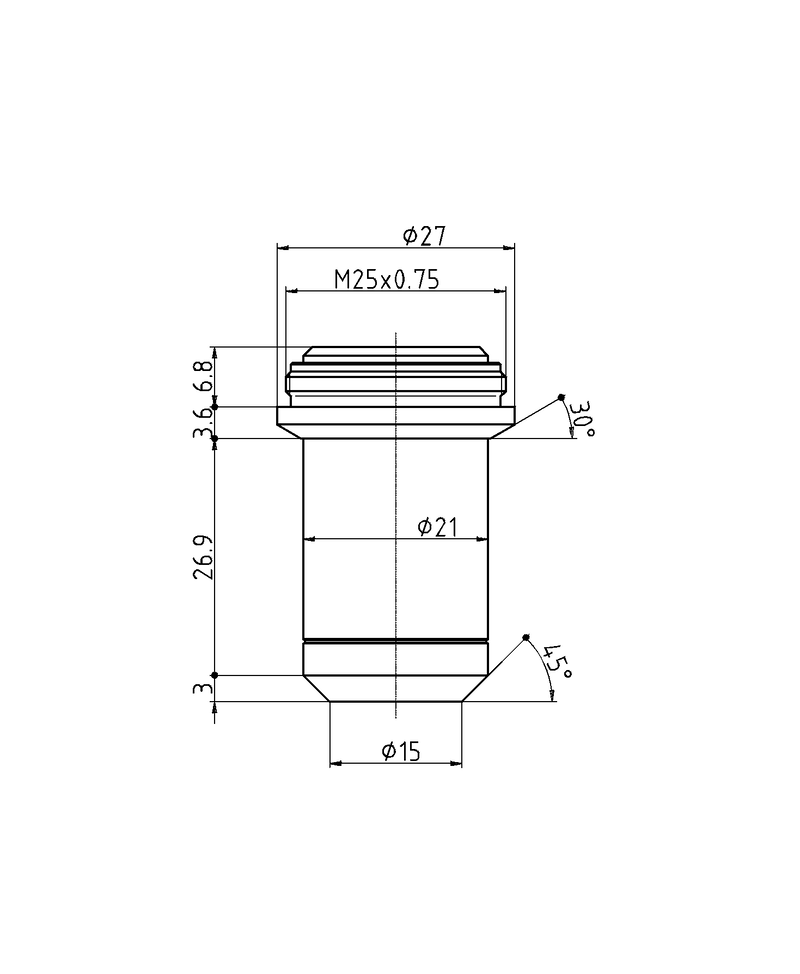

Dimension Sheet
