HC PL FLUOTAR 20x/0,50

Article Number 11566500
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism D
Field Number (FN) 25
Free Working Distance (WD in mm) 1.27
Immersion Dry
Iris Diaphragm Without
Magnification 20⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-DF, IL-BF, IL-DIC, IL-P, FLUO
Numerical Aperture 0.5
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques IL
Transmission UV (340nm)

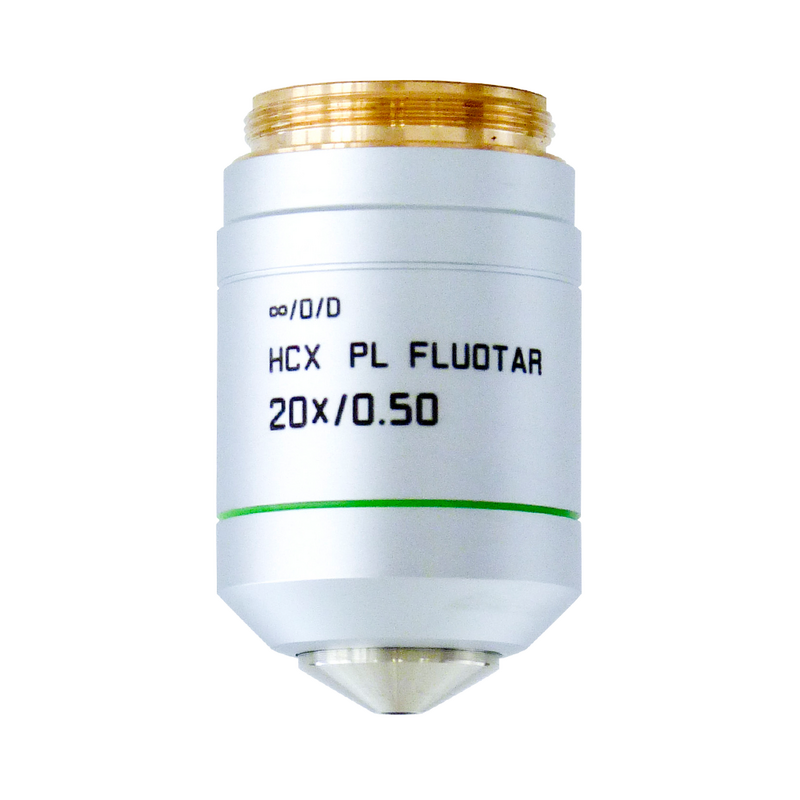

Figure

HC PL FLUOTAR 20x/0,50

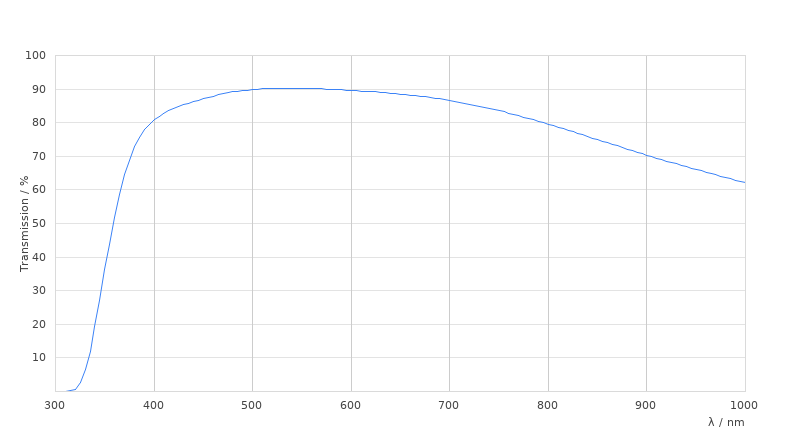

Transmission Curve

HC PL FLUOTAR 20x/0,50

Dimension Sheet

HC PL FLUOTAR 20x/0,50
