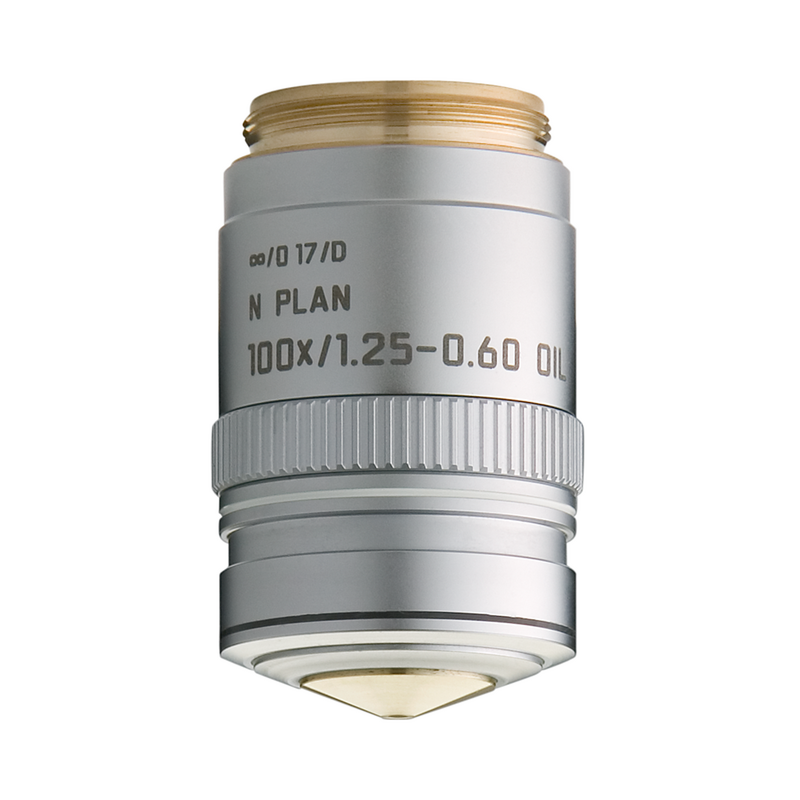

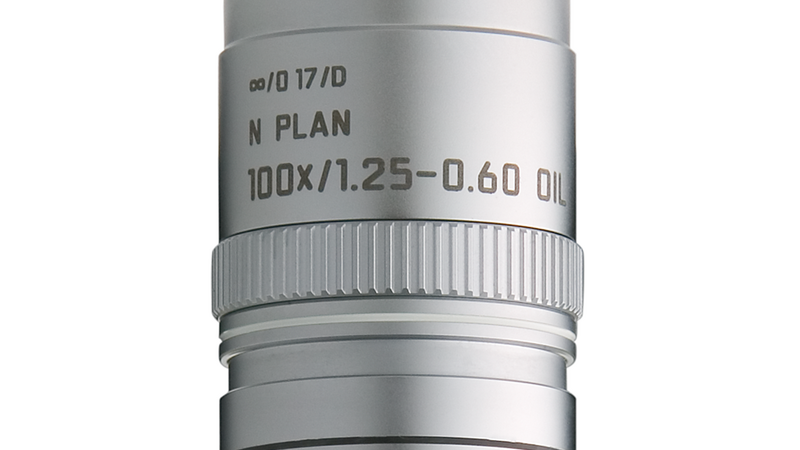

N PLAN 100x/1,25-0,60 OIL

N PLAN 100x/1,25-0,60 OIL
Numerical Aperture 1.25
Suitable for AFC (Adaptive Focus Control) NO
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism D
Field of View (FOV in mm) 22
Immersion OIL
Iris Diaphragm 0.6
Spring Loaded YES
Transmission UV (340nm)
Magnification 100
Objective Thread M25
Free Working Distance (WD in mm)0.12
Objective Type N PLAN
Article Number 11506207
