Microscope Objective HI PLAN CY 10x/0,25 SL

<p>Objective HI PLAN CY 10x/0,25 SL has a magnification of 10X and a numerical aperture of 0.25mm. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 17.7mm and a FN of 25.</p>

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.

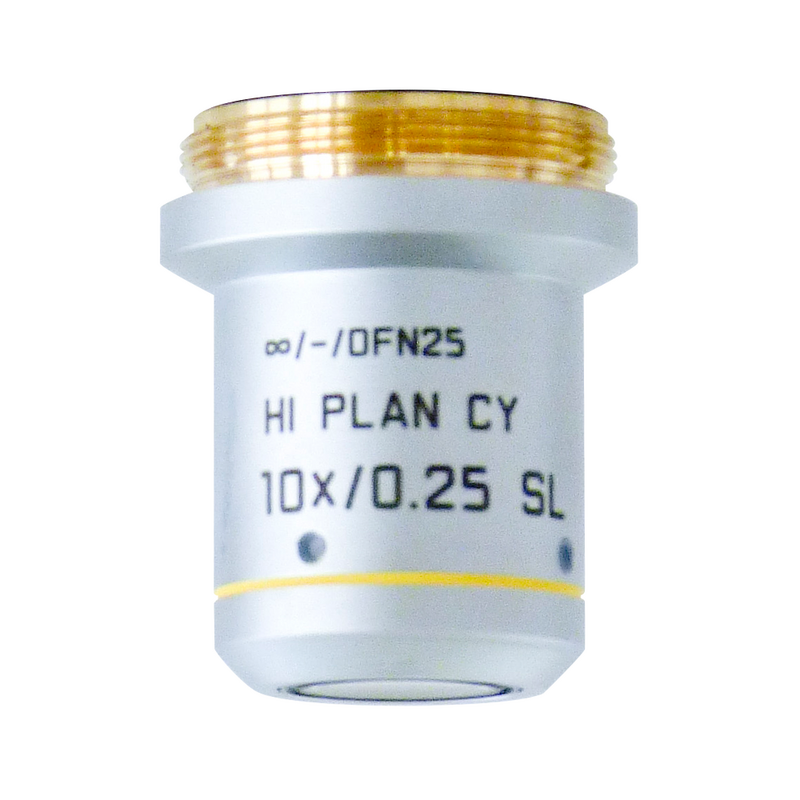

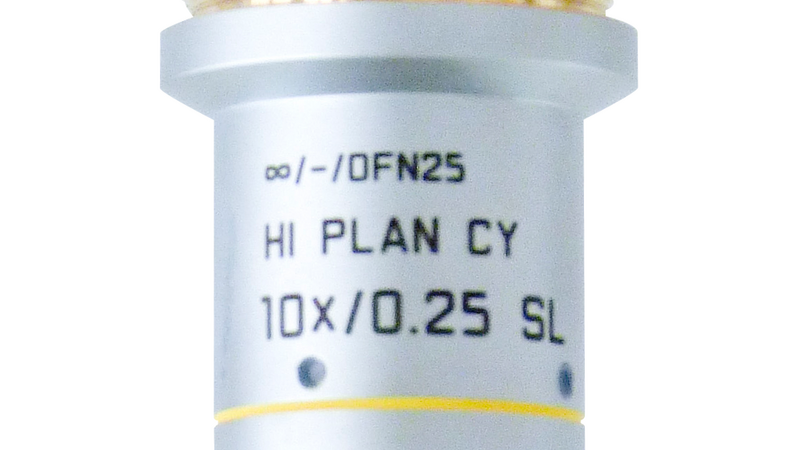

HI PLAN CY 10x/0,25 SL
HI PLAN CY 10x/0,25 SL
HI PLAN CY 10x/0,25 SL
HI PLAN CY 10x/0,25 SL

Technical Specs

Article Number 11506401
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 25
Free Working Distance (WD in mm) 17.7
Immersion Dry
Iris Diaphragm Without
Magnification 10⨉
Contrasting Methodes TL-BF, TL-DF, FLUO
Numerical Aperture 0.25
Objective Thread M25
Objective Type HI PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques SL
Transmission -
