Leica DM4 M & DM6 M Upright Materials Microscopes

All Set and Remembered



Leica DM4 M

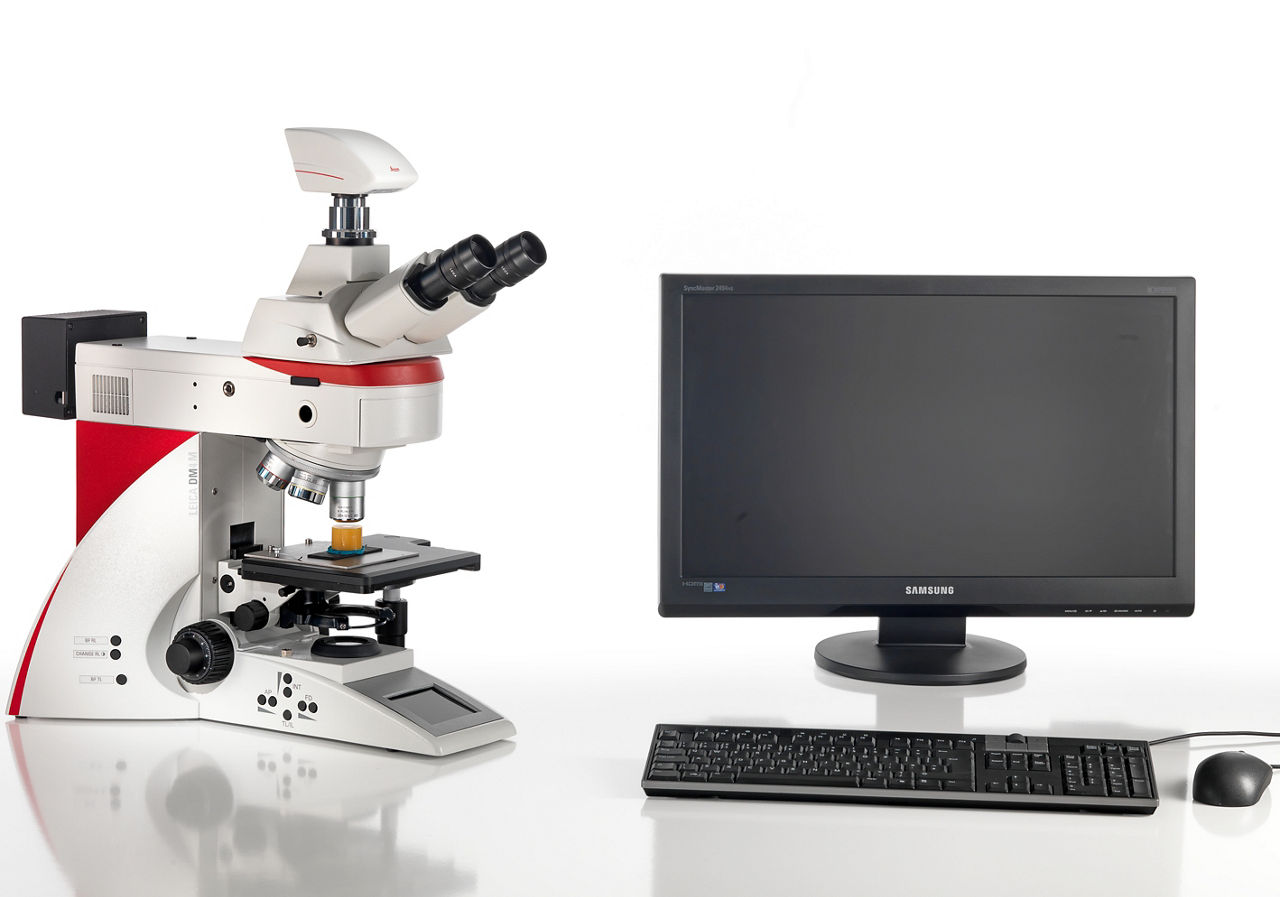

Leica DM6 M

Stand

Power supply Integrated within stand within electronics box CTR6 or CTR6 LED
  Display Information display Leica SmartTouch with information and controls
  Interfaces 1 x USB 2.0, 1 x I2C 2 x USB 2.0, 2 x I2C

Operation

Focus Mechanical Motorized
    2-ratio gearbox (coarse/fine) 5 electronic ratios
      includes parfocal function
      switch between coarse and fine mode
      memory locations for two z-positions
  Objective turret Absolute coded Motorized
    – 6x M32 thread includes dry and immersion mode
    – 7x M25 thread (optional) 6x M32 thread, 7x M25 thread (optional)
  Stage Mechanical Motorized (optional)
    ceramic-coated with stepper motor
    y-drive with belt switch between fast and precision mode
    removable stage drive with adjustable torque includes memory location for up to
    110° swivel 5 stage positions
    left-handed version optionally available Mechanical
      ceramic-coated
      y-drive with belt
      removable stage drive with adjustable torque
      110° swivel
      left-handed version optionally available
  Controls 6 programmable function buttons 6 programmable function buttons
      SmartMove
      controls for z (focus) movement and x,y (stage) movement
      4 programmable function buttons
      Leica STP8000
      controls for z (coarse and fine focus) and x,y (stage) movement
      11 programmable function buttons
      touchpanel with information and control panels
  Specimen overview tool No Yes

Transmitted light axis

Illumination LED either 12 V 100 W halogen lamp or LED
  Automation
  Light manager: automatic Köhler light management sets the best values for aperture, field diaphragm, and light intensity Yes Yes
  Contrast manager: switch from one contrast method to another with one push of a button Yes Yes
  Constant Color Intensity Control: maintains a constant color temperature (3200 K) Not necessary for LED Yes for Halogen versions
      Not necessary for LED
  Contrast method BF, PH, DF, ICT, POL BF, PH, DF, POL
      DIC (fully automatic)

Incident light axis

Motorized filter cube turret 4-fold and 5-fold 4-fold and 5-fold
  Illumination LED lamphousing LED lamphousing
    Halogen illumination with external power supply Halogen illumination with external power supply
  Automation
  Illumination Manager: Objective related setting of light intensity and aperture diaphragm Yes Yes
  Contrast manager: switch from one contrast method to another with one push of a button Yes Yes
  Round and square illuminated field diaphragms for ocular and camera observation (motorized) Yes Yes

Condensers

Automation condenser head, motorized condenser head, motorized
    7x condenser disk, motorized (optional) 7x condenser disk, motorized (optional)
    polarizer, motorized (optional) polarizer, motorized (optional)
