Confidence in your results

Software platform for industry LAS X Industry

For industrial quality control and materials research your goal is to deliver accurate and reliable results. You need a software that enables you to work with speed, efficiency, and precision and facilitates your daily tasks.

The Leica Application Suite X (LAS X) software allows you to do straightforward imaging and documentation for industrial applications.

  • Observe your sample over the full screen
  • Configure the microscope system with individual user profiles
  • Make streamlined and flexible measurements when doing analysis
  • Enhance your imaging with stitching in X, Y, and Z
  • Acquire and recall reliable and reproducible results
  • Customize report templates for your needs

Efficient operation and image analysis

You can achieve your goals quickly with the LAS X software thanks to a cleverly laid out user interface where relevant tools are only one click away. Get to your results even faster by using measurement templates that reduce manual steps.

And there are more capabilities that ensure efficiency for everyday use including:

  • Enhanced imaging with stitching in X, Y, and Z even for large sample areas
  • Batch import for large data sets
  • Recalibration for imported images for flexibility across systems

LAS X software tools

Clear, comprehensive, customizable

Software should make your standard tasks faster, easier, and more efficient; not more complicated. LAS X has a tidy user interface and navigation that makes workflows intuitive and easy for anyone to learn.

Use the full screen to view your sample

  • Observe your sample in full-screen size
  • Activate all relevant functions (e.g. for illumination settings, camera, measurements) with a few clicks
  • Automatically store images on a regular basis with functionalities like autosave

Customizable user access

The software can handle multiple users who have different levels of microscope skills and diverse tasks to accomplish.

Profiles according to user’s skills

The LAS X software enables you to create profiles according to the skills and tasks of individual users – from microscopy beginner to expert. It helps you to get reliable results.

User configuration

Reliable and reproducible results

Being able to reproduce your image data is important for many applications.

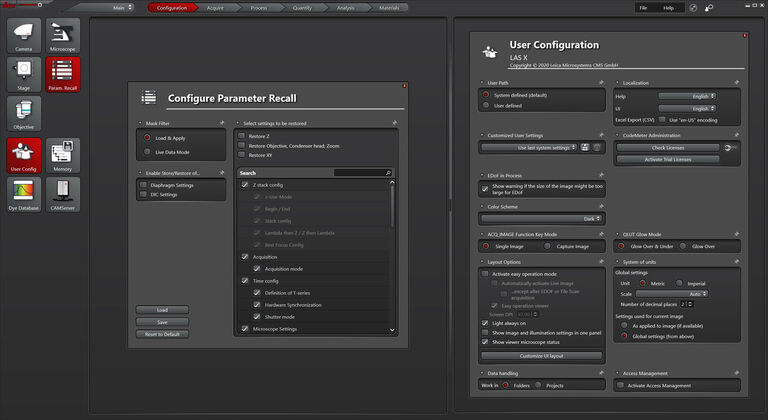

Store and Recall

With a few clicks or by opening an acquired image, you can easily reproduce previous microscope settings and imaging parameters.

Store and Recall

Create customized reports to meet your needs

You can customize the report templates according to your needs and share these templates with others for their usage to ensure consistency.

Various templates for efficient report generation

Creating customized reports of measurement results is straightforward.

  • Adapt quickly the report templates to suit your needs
  • Just a few clicks to export the reports

Report templates of LAS X software platform

LAS X Software Modules for Industrial Applications

Microscopy tasks for quality control and assurance, failure analysis, research and development, as well as materials science and forensics, are varied and diverse. From image acquisition to reporting, software plays an integral part every step of the way.

For your specific application needs, Leica Microsystems offers a range of software modules that complement LAS X.

Contact your local Leica representative to find out which module is best suited to your needs.


Extend LAS X capabilities for image acquisition and documentation of single images

Name Description
LAS X User Management Create user groups with different access levels. Allow or restrict individual functionalities for respective access levels.
LAS X Extended Annotation Annotate your images with text in various fonts and colors, graphics, or measurements.
LAS X Measurements Measure parameters, such as the length, area, diameter, angle, or perimeter of objects you mark with adjustable tracing lines, drawing directly in the live images. Add labels for easy analysis. Apply measurements to several images to determine statistical trend and compare data in measurement templates. Apply long-distance measurements that span more than a single field of view.
LAS X Reticule Display digital reticules, such as grain size, lines, circles, cross hairs and counting grids, on real-time images as electronic overlays for inspection, measurement, point counting, and comparison. Unlike eyepiece reticules, digital reticules adjust to the magnification or zoom of the microscope.
LAS X Live Stream Movie Capture images at set time intervals automatically to create movies to stream. Download as individual images or AVI files.
Image taken with LAS X Extended Annotation

Extend LAS X capabilities for image acquisition, measurement and analysis in 2D and 3D

Name Description
LAS X Live Image Builder Create images that are bigger than a single field of view. Obtain a single in-focus image, if shallow depth of field provides only a partly focused image.
LAS X Z-Control & SW Autofocus Create a single sharp image by capturing a stack of images at different focus positions and combining them automatically into an Extended Depth of Focus (EDOF) image.
LAS X Extended Depth of Field Create sharp 2D images from several partially in-focus images. In connection with the 3D Surface Viewer, creation of 3D images is also possible.
LAS X Stitching Create 2D images from multiple tiled images captured automatically. Obtain a spiral scan to capture only the region which interests you most. Single images can be retrieved and analyzed with LAS X 2D Analysis.
LAS X 3D Surface Viewer View 3D surfaces created from LAS X Extended Depth of Field.
LAS X 3D Surface Measurements Measure 3D surfaces created from LAS X Extended Depth of Field in the LAS X 3D Surface Viewer.

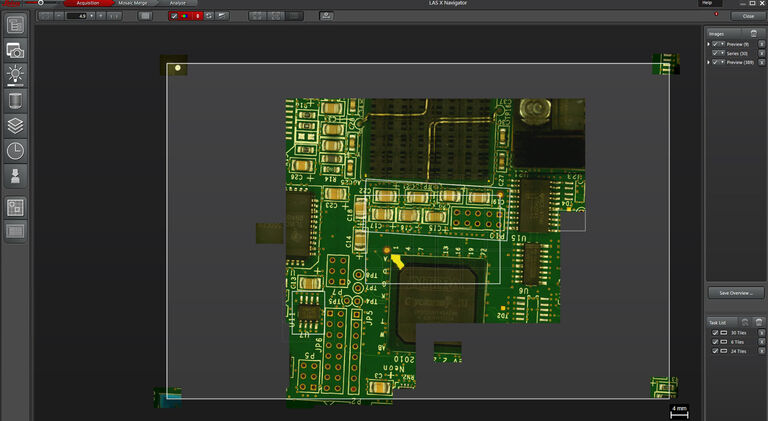

Image taken with LAS X Stitching

Extend LAS X capabilities for metallography

Name Description
LAS X Nodular Cast Iron Expert Assess cast iron, adhering to industry standards including ASTM E247, ISO 945-2 and JIS5502. Use this software module for ductile irons to identify graphite nodules and place them into shape and size classes. Assess the ferrite and pearlite content and combine the results from these separate analyses.
LAS X Decarburization Expert Identify and analyze the depth of decarburization in non- or low-alloyed steel. Automatically calculate the functional decarburization depth as a function of the amount present in the unaffected interior and your product specifications.
LAS X Metallography Toolbox Assess, analyze, and measure metals, alloys, layers and coatings, adhering to laboratory requirements by incorporating analysis methods utilized in industry standards. Document your results in a Microsoft Excel report.
LAS X Grain Expert Evaluate the properties of materials by analyzing grain size to help determine the characteristics of the final product. The incorporation of industry standards ensures your analyses conform to your laboratory requirements.
LAS X Phase Expert Measure multi-phase microstructures identified by their distinctive color or contrast in materials and metallurgy laboratories. For example, reflectivity of components in oil-shale; polarization colors of constituents in a thin rock section for modal analysis. Determine the occurrence of these phases with reference to the overall image or to one of the selected phases.
LAS X 2D Analysis Detect, measure, and evaluate features and particles of powders, fiber cross-sections, pigments using a wide range of parameters. Use histograms, pie charts, and statistics to illustrate results that can be exported to Microsoft Excel.
Image taken with LAS X Grain Expert
