The contrast is clear. Lifetime imaging in an instant.

    FLIM Microscope STELLARIS 8 FALCON

    STELLARIS 8 FALCON (FAst Lifetime CONtrast) is the future of functional imaging. Harness the power of fluorescence lifetime to investigate cellular physiology and explore dynamics in living cells. STELLARIS 8 FALCON is a fully integrated solution for Fluorescence Lifetime Imaging (FLIM) and enables video-rate lifetime imaging acquisition for rapid kinetic studies in live cells.

    The STELLARIS 8 FALCON FLIM microscope adds a new dimension of contrast to your imaging, opening the door to biosensing and tracking of interactions between proteins. FLIM information is now available for all modalities of the STELLARIS 8 system.

    Now you can:

    • Follow fast molecular interactions via FLIM-FRET (Förster Resonance Energy Transfer)
    • Use biosensors to detect changes in metabolic state and microenvironment
    • Apply lifetime contrast to separate multiple fluorophores
    • Acquire FLIM data with minimal training

    STELLARIS 8 FALCON

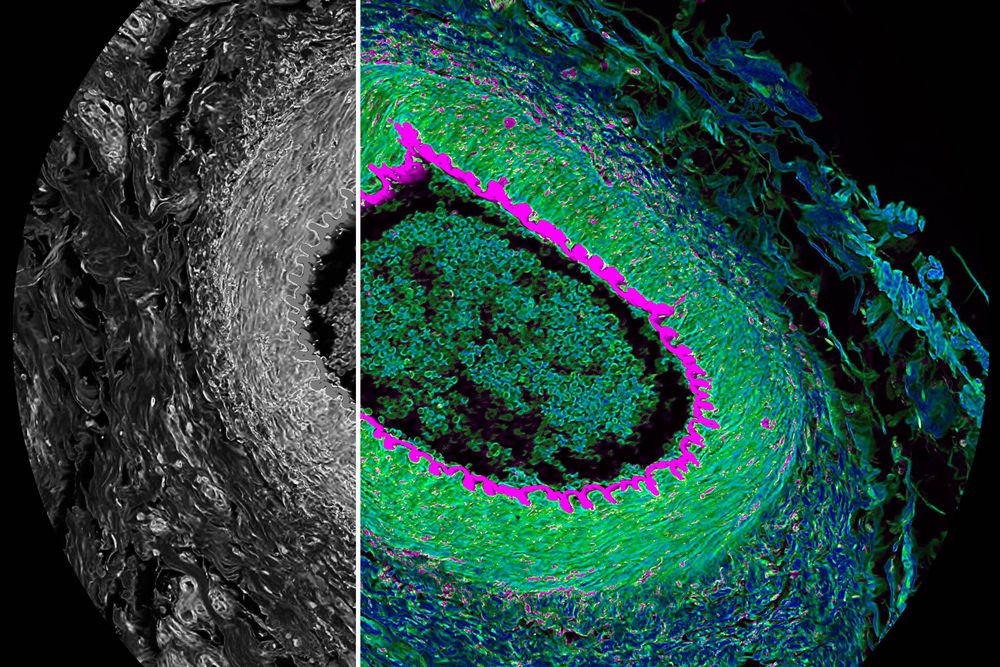

    Histological section from cat eye. Simultaneous spectral (gray) and FLIM (color) confocal imaging reveals more contrast with lifetime. Acquisition and visualization using STELLARIS 8 FALCON and LAS X software.

    Follow molecular interactions with FLIM-FRET

    Modern research investigates how molecules interact to accomplish vital tasks. FLIM-FRET is the gold standard to explore these interactions.

    STELLARIS 8 FALCON sets a new speed standard for FLIM imaging.

    It enables FRET in highly dynamic cellular events. You can acquire and interpret FRET data in your daily experiments.

    Caged cAMP in HeLa cells expressing the EPAC mT2-dVenus FRET sensor. EPAC response to UV-mediated cAMP uncaging (central area). Movie recorded at 4 fps. Image size: 256 x256 pixels. Color bar scale (lifetime): ns. Courtesy: Kees Jalink, Bram van den Broek, NKI Amsterdam, Netherlands.

    Calcium oscillations after stimulation with thrombin activating peptide. The response in individual cells is recorded as a change in lifetime. Movie acquired at 4 pfs. Image size: 256 x 256 pixels. Color bar scale (lifetime): ns. Courtesy: Kees Jalink, Bram van den Broek, NKI Amsterdam, Netherlands.

    Monitor subtle and fast changes with biosensors

    Biosensors are powerful reporters for metabolic activity, signaling mechanisms, pH, and microenvironment changes.

    The STELLARIS 8 FALCON FLIM microscope provides access to information contained in fluorescence lifetime, even for ultrafast events such as membrane potential dynamics. This information complements the spectral fluorescent intensity imaging and TauSense modes provided by the STELLARIS 8 system.

    More reliable and sensitive metabolic imaging

    Autofluorescence can be an issue in conventional imaging. STELLARIS 8 FALCON turns it into valuable information. You can now transform autofluorescence into a reporter for metabolic status, cell differentiation, and cancer development.

    Moreover, the STELLARIS 8 FALCON FLIM microscope enables imaging contrast in living tissue, where fluorescence labeling is often unspecific or destroys physiological conditions.

    Autofluorescence in mammalian cells at non-physiological conditions (pH 8.5). The signal correlates with changes in the NAD/NADH endogenous pool. The development of oxidative stress reads out as decrease of fluorescence lifetime over time. Original image size: 512 x 512 pixels. Color bar scale (lifetime): ns.
    Intensity
    FLIM

    Fluorophore separation beyond the spectral options

    Fluorescence labeling is the standard way to differentiate intracellular structures. Spectral separation is very powerful, but sometimes limited when the emission spectra are too close.

    With STELLARIS 8 FALCON, you can exploit the full potential of fluorescence lifetime imaging to separate multiple fluorescent probes using exponential fitting, pattern fitting and the new FLIM phasor separation analysis.

    Interactive image: Cytoskeleton structures distinguished by lifetime contrast. Vimentin immunolabeled with Alexa Fluor 555 (green), and tubulin immunolabeled with Alexa Fluor 546 (blue). The fluorophores are spectrally very similar, but they are separated using the fluorescence lifetime information. Image size: 512 x 512 pixels.

    STELLARIS 8 FALCON FLIM microscope for fast lifetime imaging

    The STELLARIS 8 FALCON FLIM microscope overcomes the speed limitation of lifetime imaging and opens the door to fast lifetime data.

    Up to now, functional information extracted from fluorescence lifetime data of fast processes was hard to get due to the technical constraints of FLIM. FLIM acquisition speed was at least 10 times slower than recording the confocal intensity.

    Using STELLARIS 8 FALCON fast lifetime contrast imaging, you can follow dynamic processes in cells at the appropriate pace. These tasks are possible thanks to a new way to measure time using TCSPC (Time-Correlated Single Photon Counting) together with intelligent algorithms for data handling and analysis.

    Application note in Nature: SP8 FALCON: a novel concept in fluorescence lifetime imaging enabling video-rate confocal FLIM

    Single channel image of fluorescent beads (magenta) in a solution containing Alexa Fluor 555 (green). Fluorophore separation based on fluorescence lifetime is possible at various speeds, for example 16 fps (top), 27 fps (video-rate, middle), and 83 fps (ultra-fast, bottom). Using lifetime information for dye separation is significantly more advantageous than intensity (gray scale). The movies show pixel-by-pixel fitting of the lifetime components. Frame size: 512 x 64 pixels. Scale bar: 10 µm.

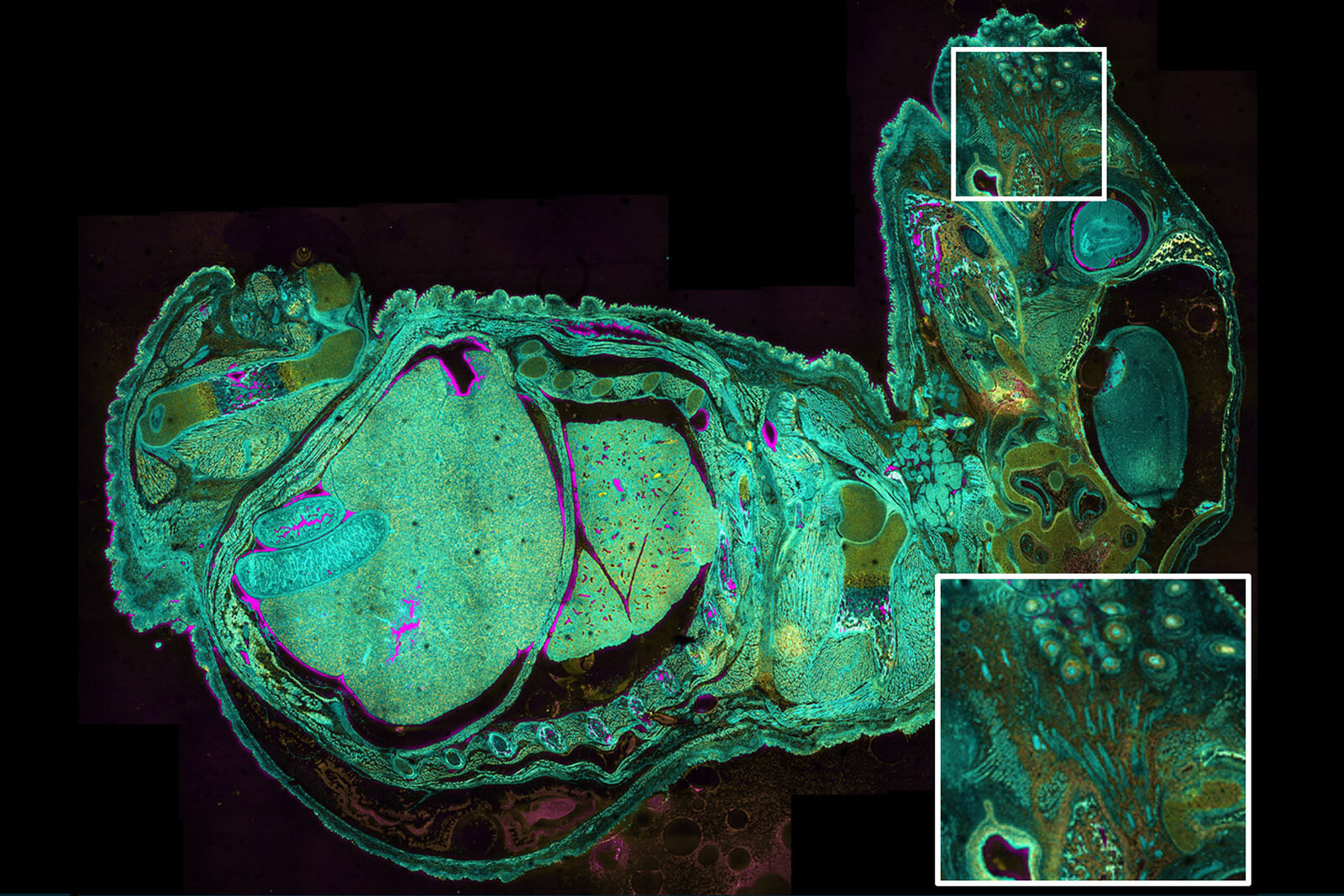

    Straightforward acquisition of complex samples. High-resolution mouse-embryo mosaic image composed of 722 tiles and containing 190 megapixels. FLIM data fitted with four characteristic fluorescence lifetimes (color coded). Acquisition: 1:23 h. Analysis: 1:00 h

    All-in-one multimodal imaging

    Combining FLIM with other modalities was never as easy as with the STELLARIS 8 FALCON. Until now, researchers had to cope with complex wiring and cumbersome file transfer tasks. With STELLARIS 8 FALCON, you can integrate lifetime information into your standard confocal workflow.

    The STELLARIS 8 FALCON FLIM microscope is fully integrated with the LAS X acquisition and analysis software. It can record FLIM in four spectral channels simultaneously. STELLARIS 8 FALCON gives you access to lifetime contrast in 3D-stacks, time-lapse sequences, and even large mosaic-tiling formats.

    With LAS X NAVIGATOR, you can expand your viewing area up to 10,000 times, saving precious time in identifying your regions of interest and exploring your samples in a whole new way.

    Straightforward lifetime definition with phasors

    Analysis with STELLARIS 8 FALCON using FLIM phasors provides a 2D visualization of lifetime components. With FLIM phasors you can follow microenvironmental changes, select components to multiplex signal, and determine FRET efficiency.

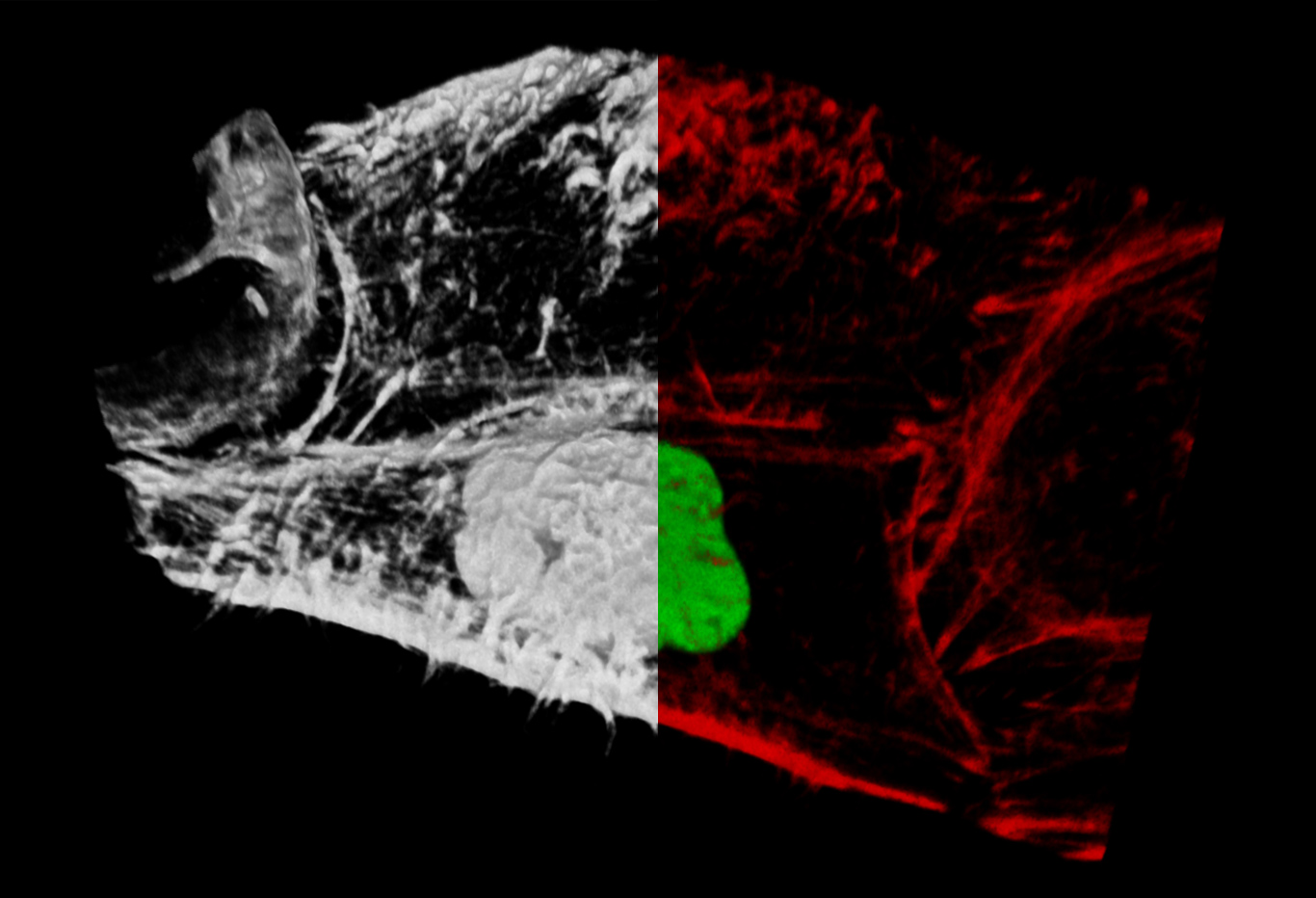

    Cells labeled with Alexa555-Phalloidin and H2B mCherry. Separation performed using FLIM phasors. The phasor plot clearly shows two distributions. Courtesy: Dr. Martin Stöckl, Department of Biology, University Konstanz, Germany.
    1-click philosophy to focus on your science: STELLARIS 8 FALCON controlled by the LAS X software.

    The results you need – with one click

    The LAS X software enables FLIM with a click and the same philosophy as routine spectral imaging.

    Even if you use microscopy as a complementary technique, you can find the essentials and start imaging right away.

    More specialized functions are accessible as workflows and allow automation for your convenience.
