Leica DVM2500 PC-based Digital Microscope with High Degree of Magnification

Archived Product
Replaced by DVM6

Digital Microscopy Image Galleries

One of the main features of a digital microscope is the speed and ease with which it enables digital images and surface models to be created of macroscopic and microscopic structures.

Find example images galleries here for: Electronics, Forensic, Material Science, Semiconductor

Using the VZ700 C zoom lens with Leica DVM microscopes

This video demonstrates how to use the specific features of the VZ700 C zoom lens for the digital microscope Leica DVM. This includes the focus adjustment over the entire zoom range, the application of illumination modes and the enhanced contrasting using the slide-in adapters.

Using the rotary head for sample documentation

For some zoom lenses the digital Leica DVM microscopes can be equipped with a rotary head to analyze the sample topography from different viewing angles or take a movie. The setup of the rotary head requires only a few simple steps as shown in this video.

Using the BGA lens with the Leica DVM

For inspection of BGA devices on printed circuit boards, a special BGA lens can be used with the digital microscopes of the Leica DVM line.

Using the inclinable stand for Leica DVM

The inclinable stand enables an oblique view of the sample at any angle from -90° to +90°. This video illustrates the few steps required to setup the stand so that the sample stays in center and focused at any viewing angle.

Adjusting parfocality with Leica DVM2500

All zoom lenses for the digital microscope Leica DVM2500 are parfocal, i.e. the sample is in focus throughout the magnification range of the zoom. It only takes a few steps if the camera has to be adjusted to a specific zoomlens.

Installation of the Leica DVM2500 camera

Only a few simple steps are required to mount the Leica DVM2500 camera firmly to all of the DVM zoom bodies.

Live Image Builder – Preparing for operation

This video shows how to make the vital image adjustments so that you are immediately ready for Live Building.

Live Image Builder XY Stitching

Rapidly creates large images exceeding the normal field of view. This software automatically detects XY movement of the sample and compiles the information to one large image.

Accessories for the VZ80 RC to change contrast

The VZ80 RC zoom lenses for Leica DVM digital microscopes can be used with a variety of adapters. The video shows some examples of how simple the contrast can be changed with each different snap-on adapter.

Investigation of bond-wire short-circuits after encapsulation in semiconductor packaging

Corrosion-test on blade surface of hydro-turbine

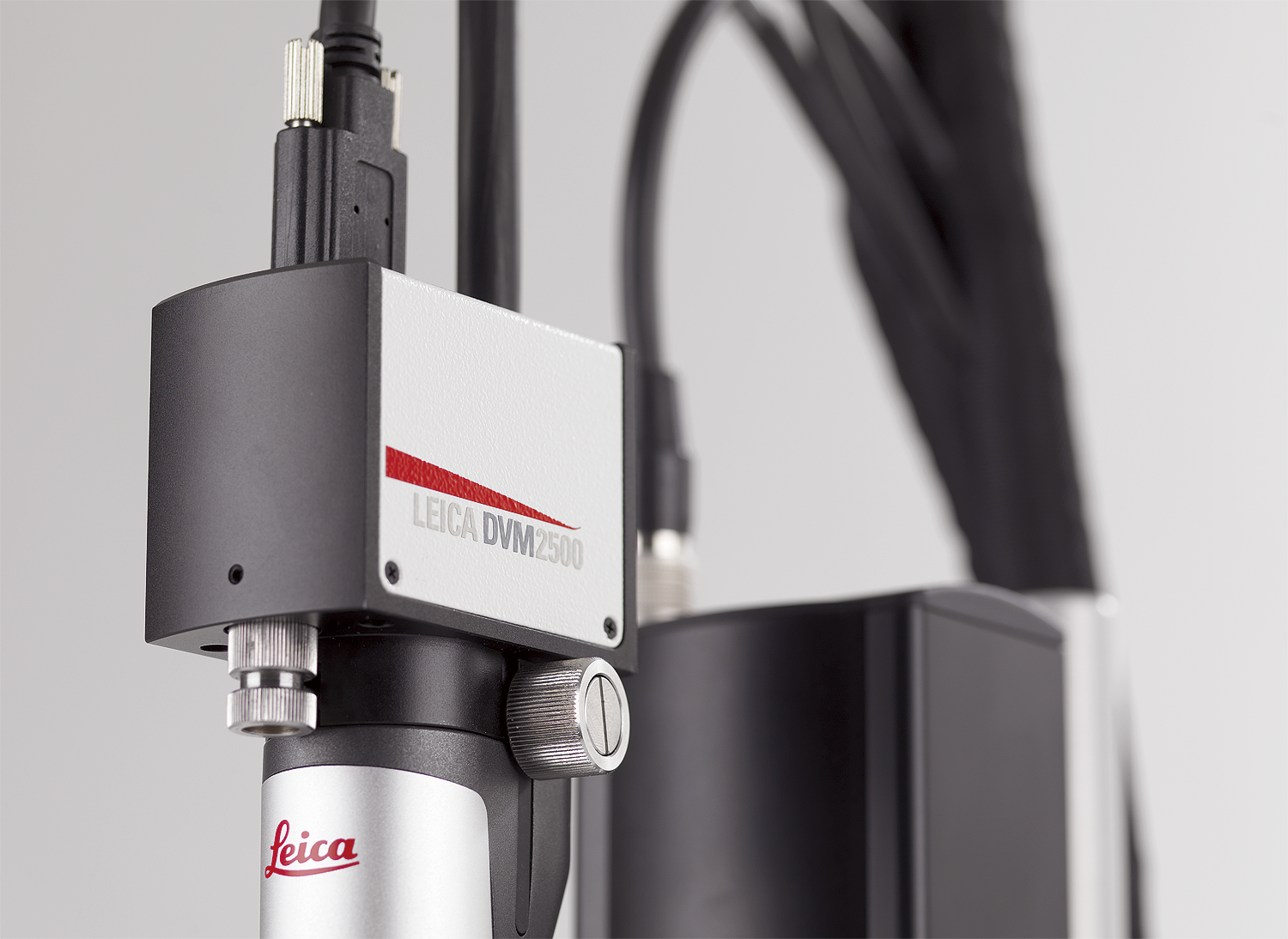

Leica DVM2500 Camera

The Leica DVM2500 CCD camera is compatible with all digital microscope VZ zoom lenses.

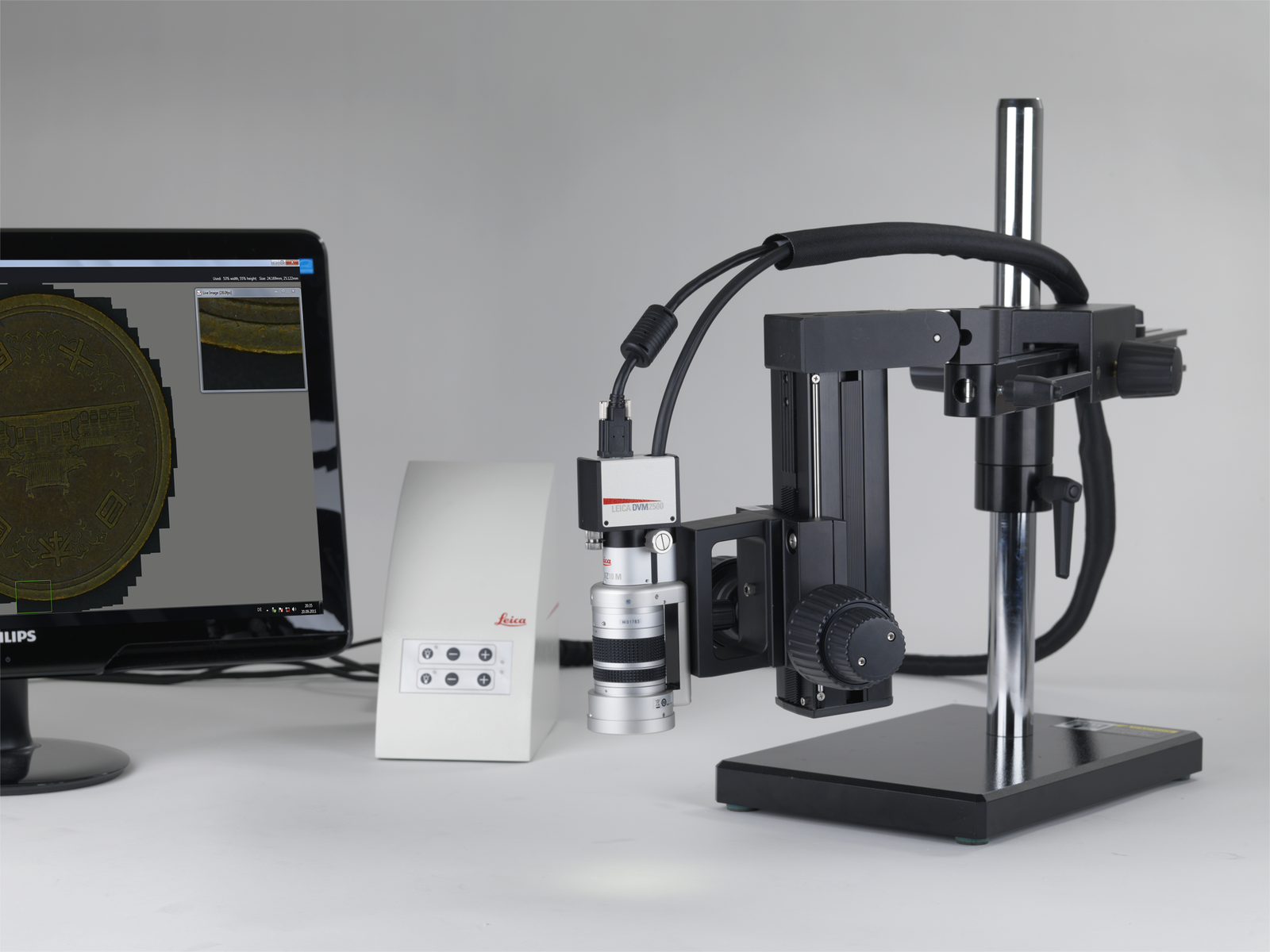

Leica Digital and Versatile Microscopes

Using components from the large Leica product portfolio, the digital microscope is flexible to adapt to your application requirement

Natural Colors

The LED light source of the DVM2500 is optimized for natural color reproduction.

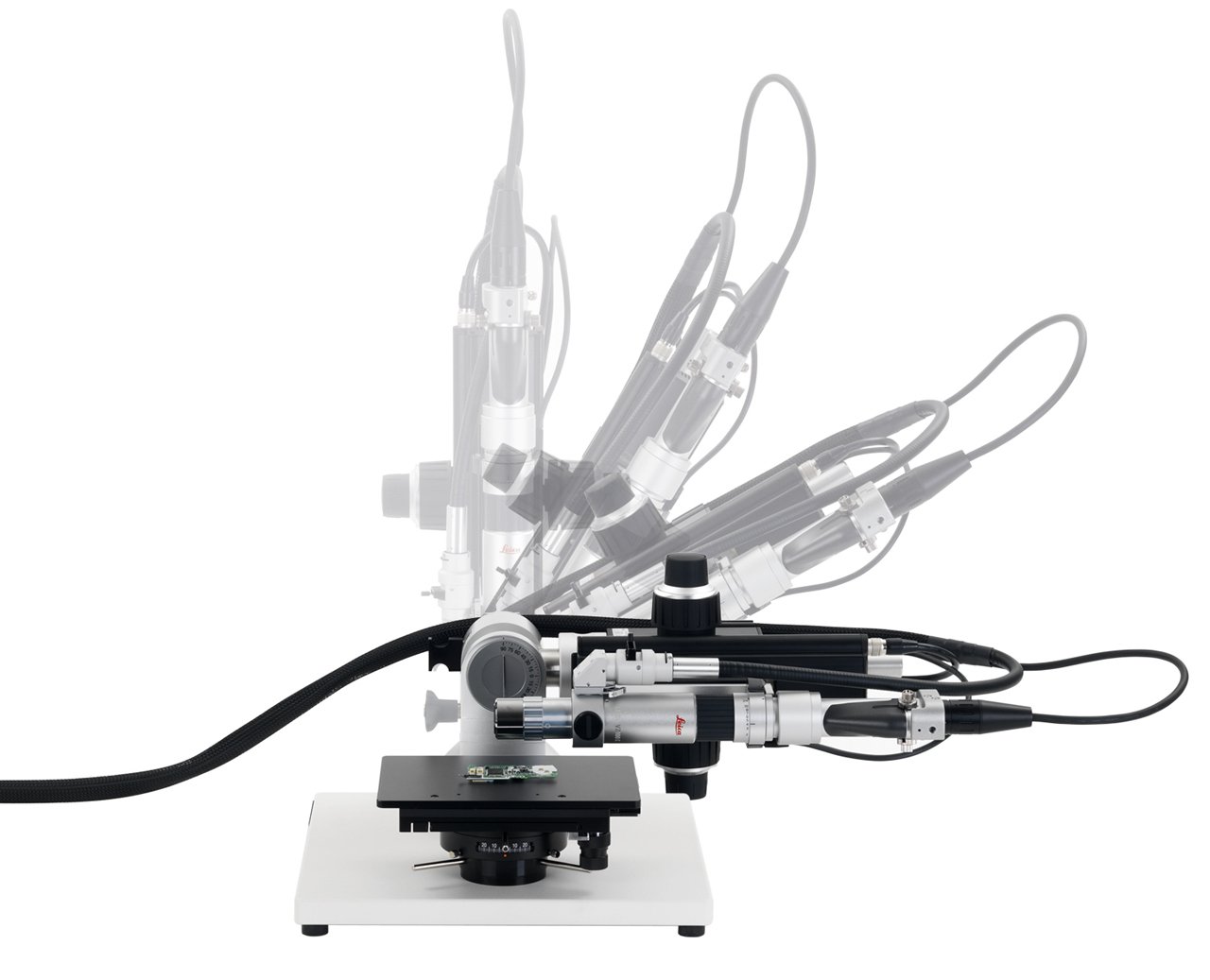

Viewed from every side

When it comes to examining the tiniest structures on inclined or vertical sample surfaces, conventional microscopes reach their limits. For Leica Digital Microscopes viewing even previously inaccessible sample areas are not a problem.

The flexible tilting stand, combined with revolving x/y-stage,…

The xy stage allows convenient positioning of the sample.

Documentation of a scratch defect in the protective polyimide film on semiconductor surface.

Investigation of soldering in hybrid PCB manufacturing.

Documentation of moss-groth rate in botanical institute

Live Image Builder – Extended Focus Image

Get sharp images within seconds from a sample with shallow depth of field using extended focus in Live Image Builder. By changing the focus manually the software detects and adds the parts that are in focus into one sharp crisp image.
