DVM5000 HD All-In-One Digital Microscope with High Degree of Magnification

Archived Product
Replaced by DVM6

Leica DVM5000 HD

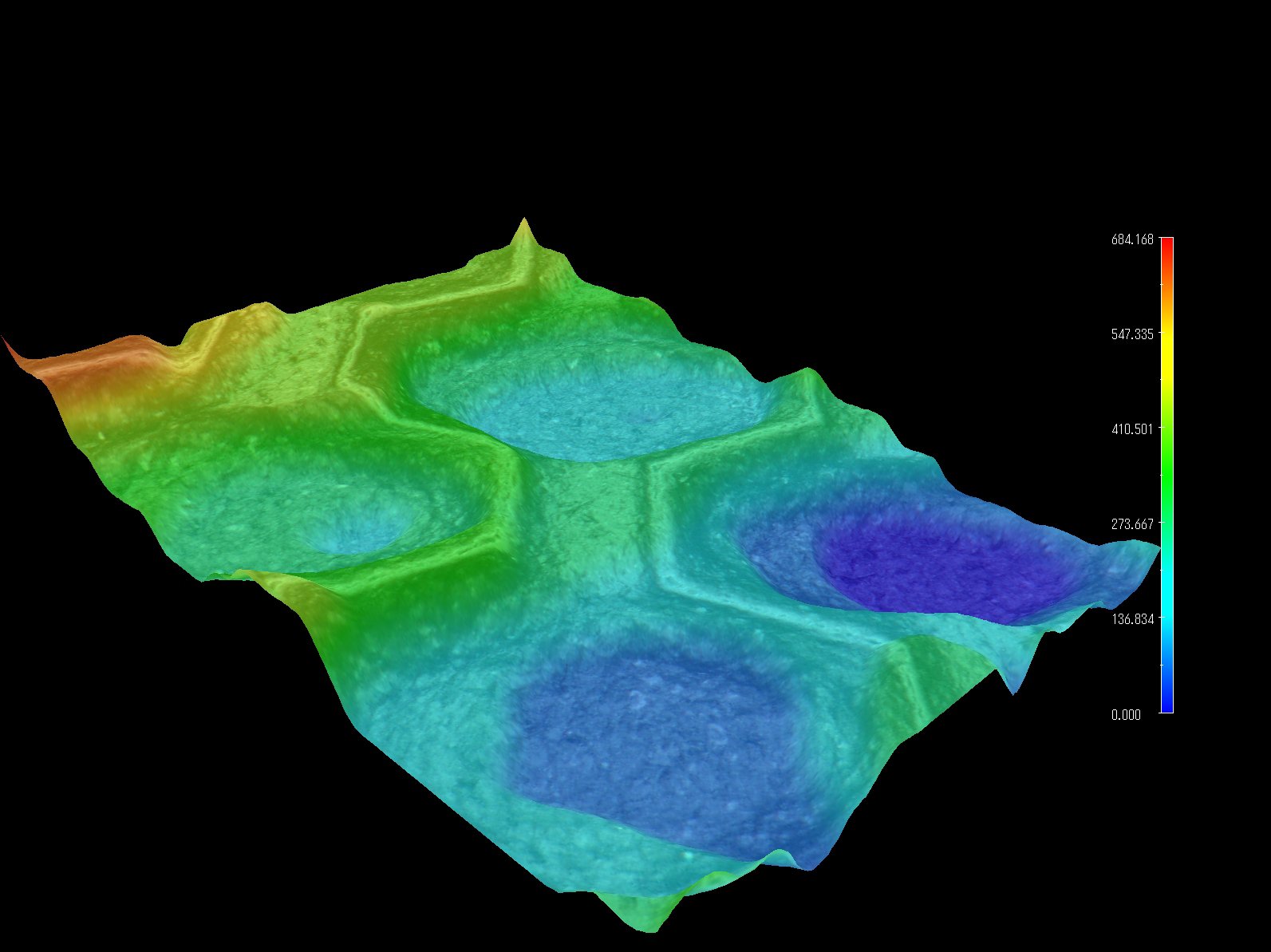

Precise 3D Surface Models are generated with a VZ700 C zoom lens. You can select for fully automatic or semi-automatic 3D models with a Leica DVM5000 HD.

Adjusting parfocality with Leica DVM2500

All zoom lenses for the digital microscope Leica DVM2500 are parfocal, i.e. the sample is in focus throughout the magnification range of the zoom. It only takes a few steps if the camera has to be adjusted to a specific zoom lens.

Using the rotary head for sample documentation

For some zoom lenses the digital Leica DVM microscopes can be equipped with a rotary head to analyze the sample topography from different viewing angles or take a movie. The setup of the rotary head requires only a few simple steps as shown in this video.

Accessories for the VZ80 RC to change contrast

The VZ80 RC zoom lenses for Leica DVM digital microscopes can be used with a variety of adapters. The video shows some examples of how simple the contrast can be changed with each different snap-on adapter.

Using the VZ700 C zoom lens with Leica DVM microscopes

This video demonstrates how to use the specific features of the VZ700 C zoom lens for the digital microscope Leica DVM. This includes the focus adjustment over the entire zoom range, the application of illumination modes and the enhanced contrasting using the slide-in adapters.

Documentation of a scratch defect in the protective polyimide film on semiconductor surface.

Investigation of soldering in hybrid PCB manufacturing.

Documentation of moss-groth rate in botanical institute.

Corrosion-test on blade surface of hydro-turbine.

Using the BGA lens with the Leica DVM

For inspection of BGA devices on printed circuit boards, a special BGA lenscan be used with the digital microscopes of the Leica DVM line.

Installation of the Leica DVM2500 camera

Only a few simple steps are required to mount the Leica DVM2500 camera firmly to all of the DVM zoom bodies.

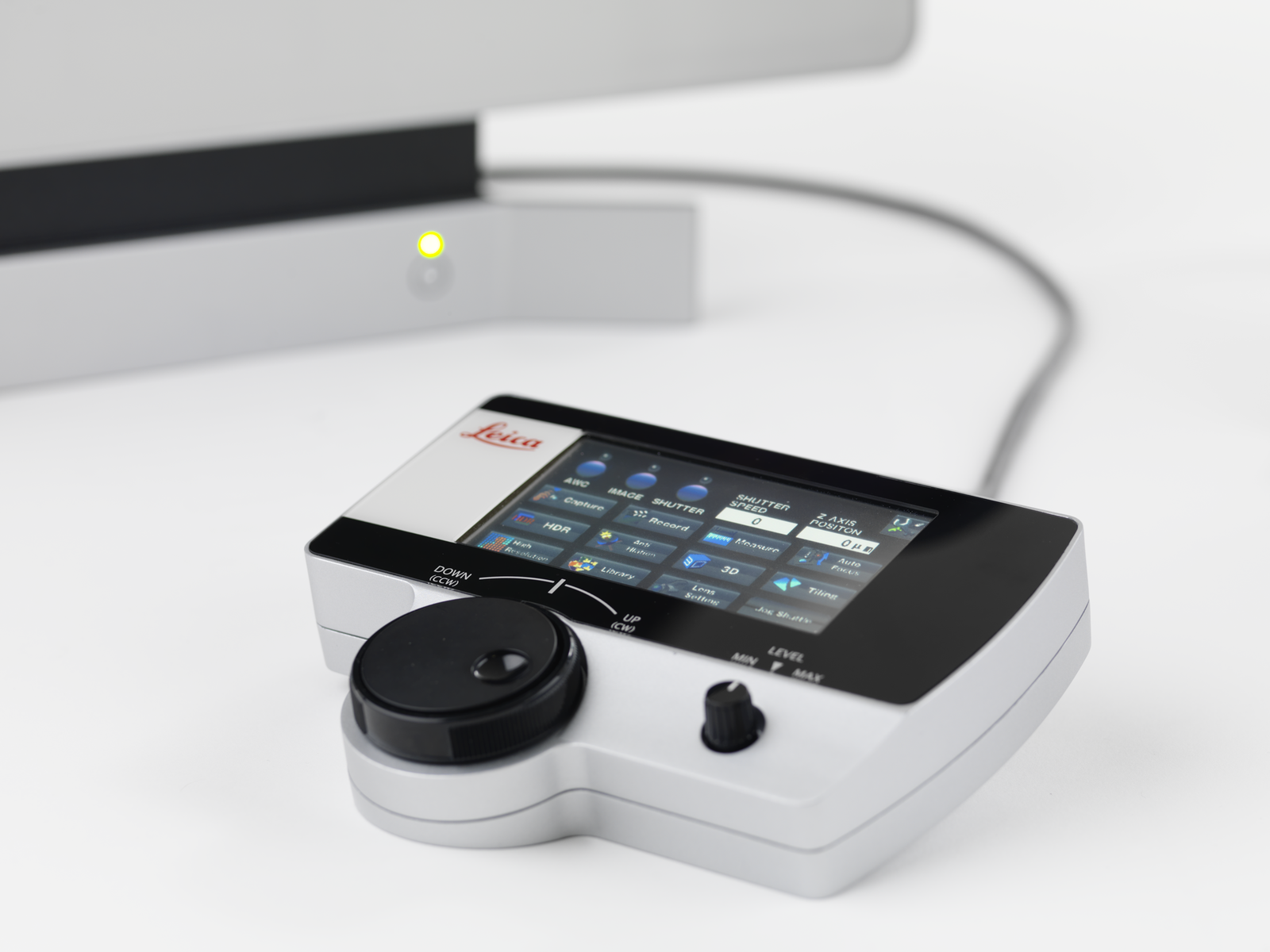

Touchscreen Console

The optional touchscreen console enables easy operation of all Leica DVM5000 HD features. The focus drive and rotary head are controlled with a jog dial.

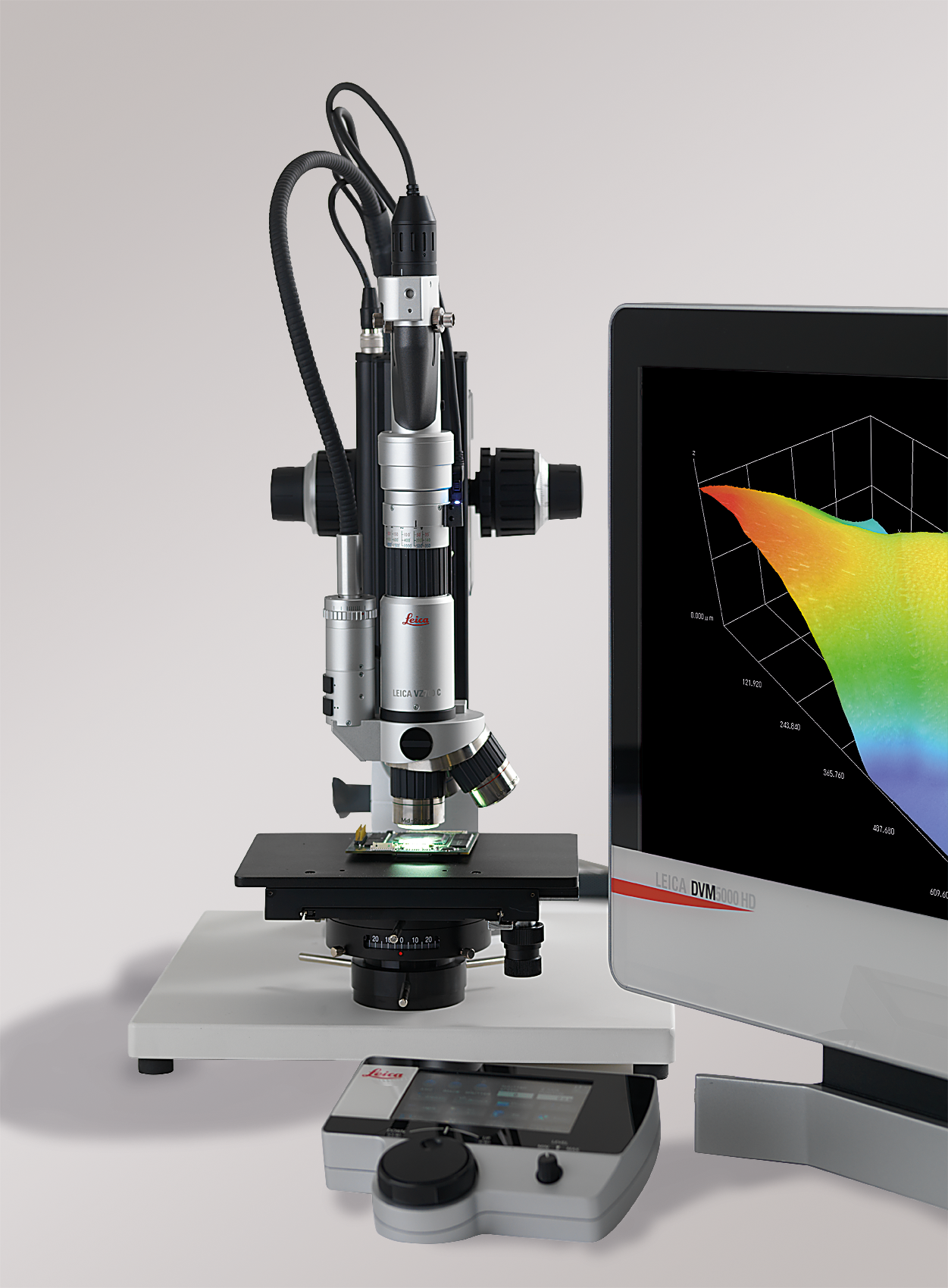

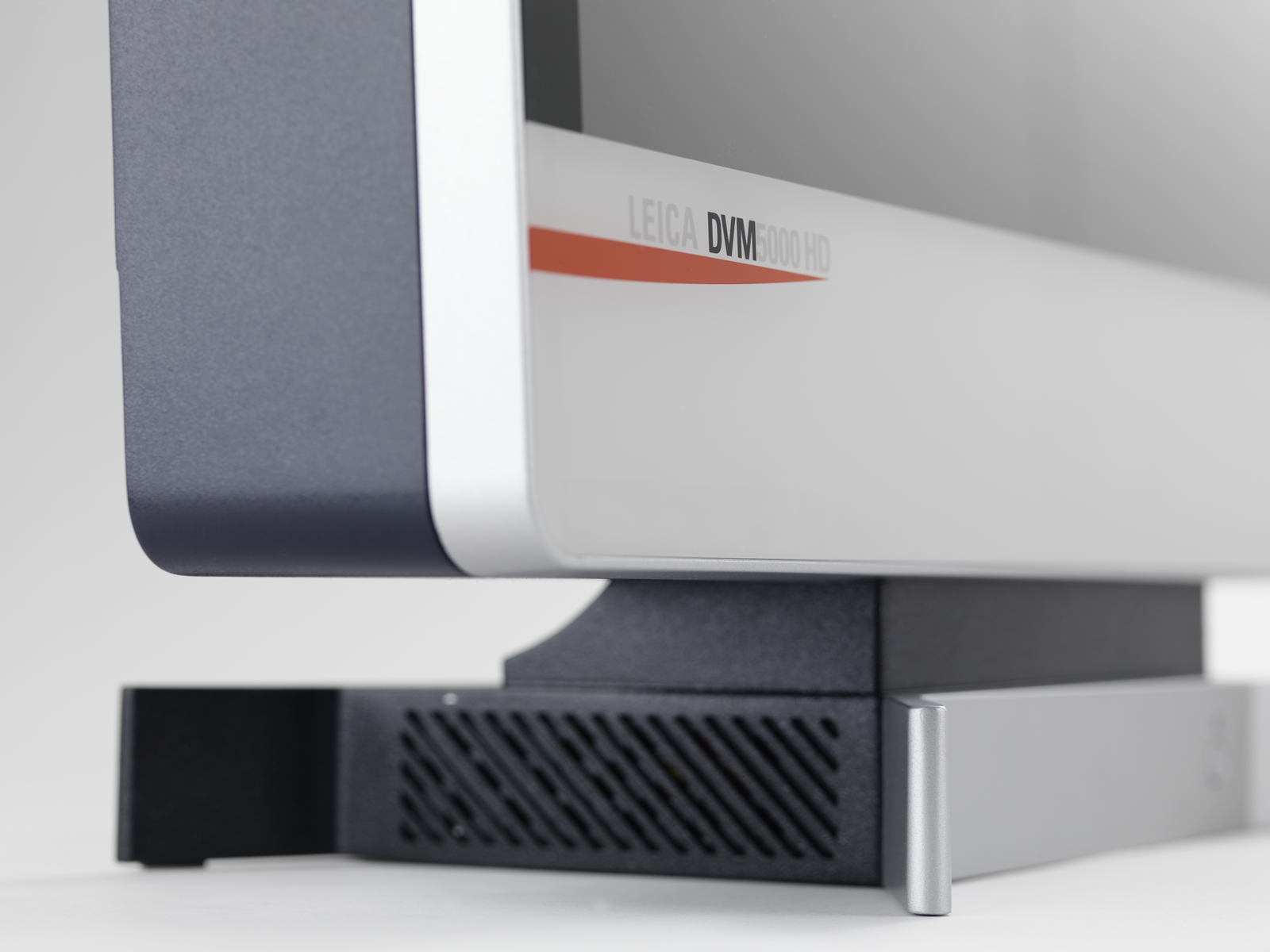

The Leica DVM5000 HD main unit integrates the motor controls (focus, rotary head) and the LED light source in a compact and elegant designed body with 21.5" full HD monitor.

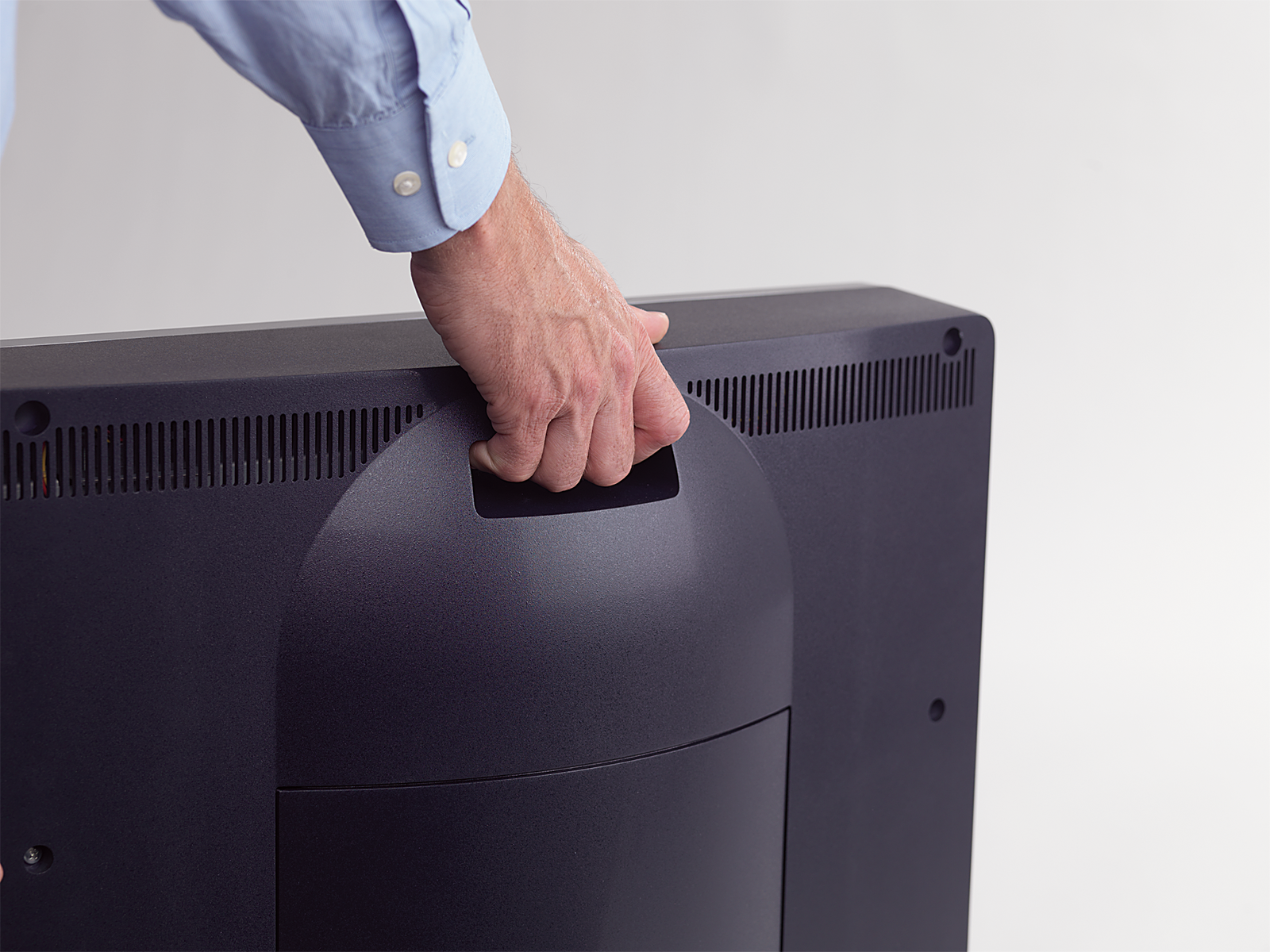

The compact Leica DVM5000 HD main unit can be easily moved around.

Leica DVM5000 HD Software capabilities

The powerful software of the Leica DVM5000 HD offers many features to analyze and document your images and 3D surface models.

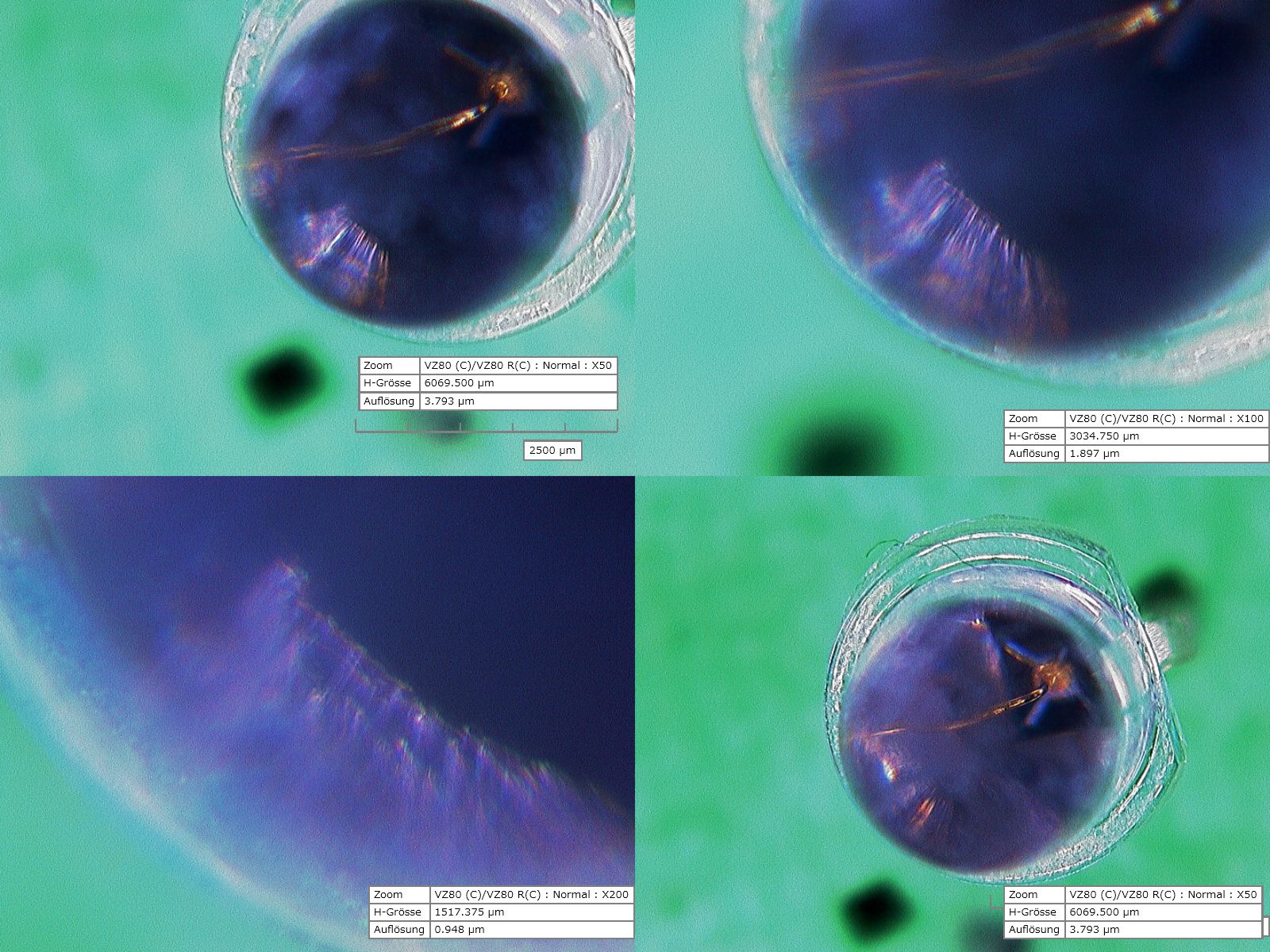

The Leica DVM5000 HD provides multiple views of the sample. Each single view may have its own magnification and calibration data.

Viewed from every side

When it comes to examining the tiniest structures on inclined or vertical sample surfaces, conventional microscopes reach their limits. For Leica Digital Microscopes however, viewing even previously inaccessible sample areas are not a problem. The extremely flexible tilting stand, combined with…

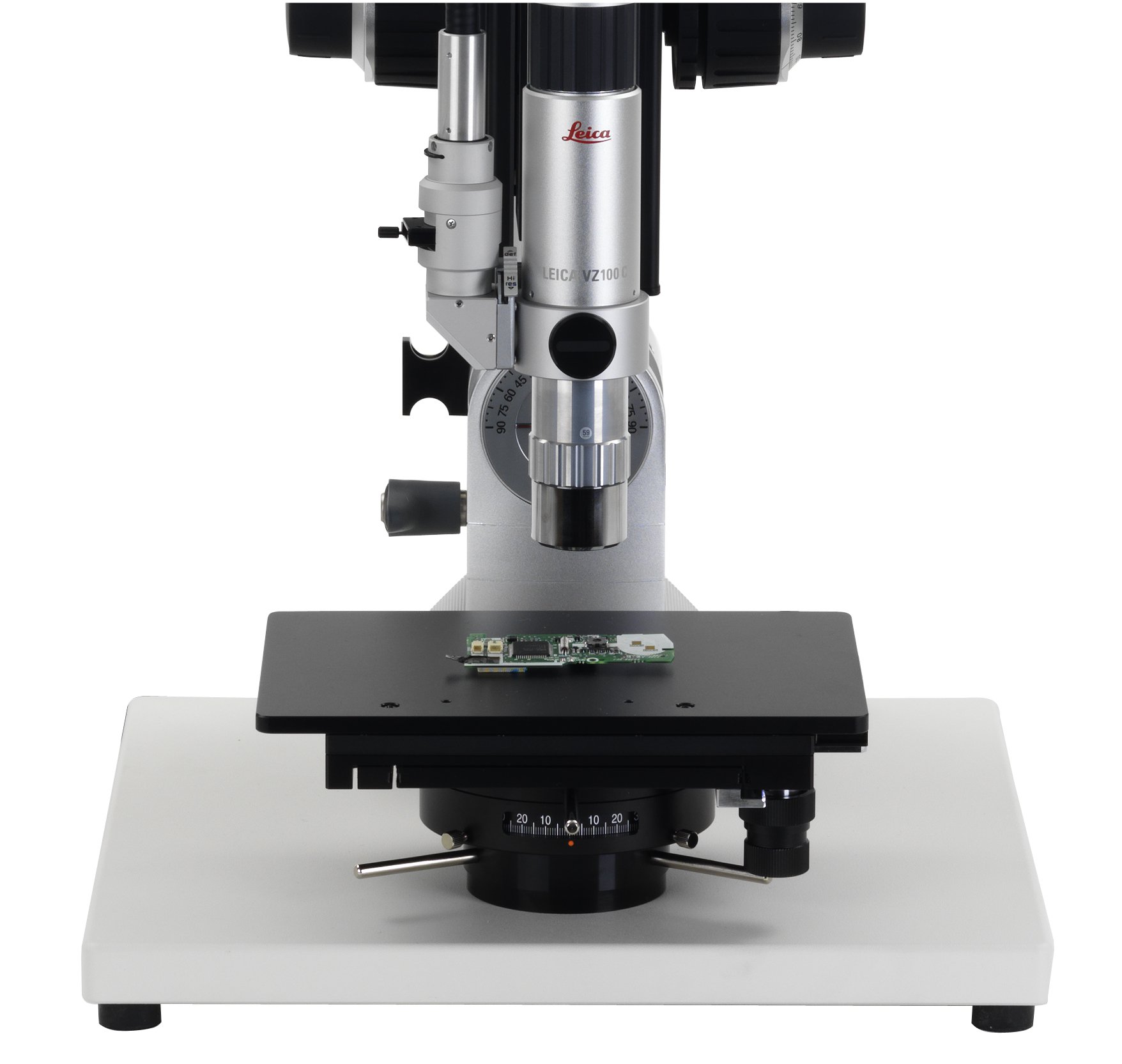

The xy stage allows convenient positioning of the sample.

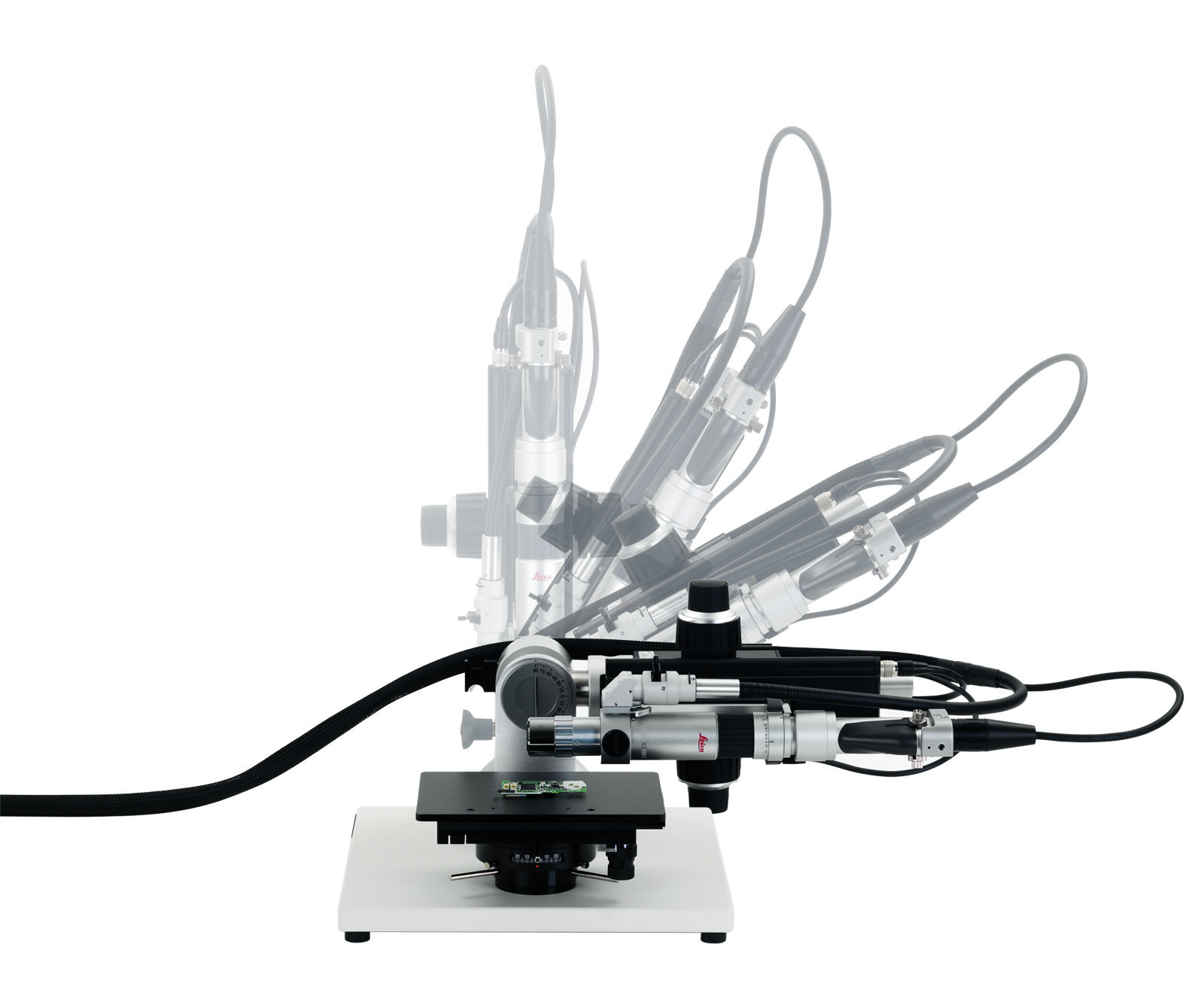

Using the inclinable stand for Leica DVM

The inclinable stand enables an oblique view of the sample at any anglefrom -90° to +90°. This video illustrates the few steps required to setupthe stand so that the sample stays in center and focused at any viewingangle.

Investigation of bond-wire short-circuits after encapsulation in semiconductor packaging.
