HC PL FLUOTAR 150x/0,90

Article Number 11506214
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism C
Field Number (FN) 25
Free Working Distance (WD in mm) 0.25
Immersion Dry
Iris Diaphragm Without
Magnification 150⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, FLUO
Numerical Aperture 0.9
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques LMD
Transmission UV (340nm)

Figure

HC PL FLUOTAR 150x/0,90

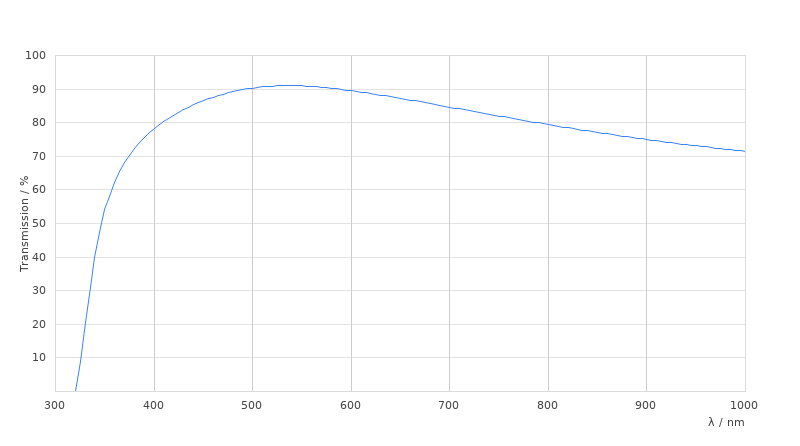

Transmission Curve

HC PL FLUOTAR 150x/0,90

Dimension Sheet

HC PL FLUOTAR 150x/0,90
