HC PL FLUOTAR 63x/1.10 IMM CORR PH3

Article Number 11506418
Correction Ring (CORR) CORR
Coverglass With
Exit Pupil Position/DIC prism E
Field of View (FOV in mm) 25
Free Working Distance (WD in mm) 0.35
Immersion IMM
Iris Diaphragm Without
Magnification 63⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-PH, FLUO
Numerical Aperture 1.1
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques PH3
Transmission UV (340nm)
FigureHC PL FLUOTAR 63x/1.10 IMM CORR PH3

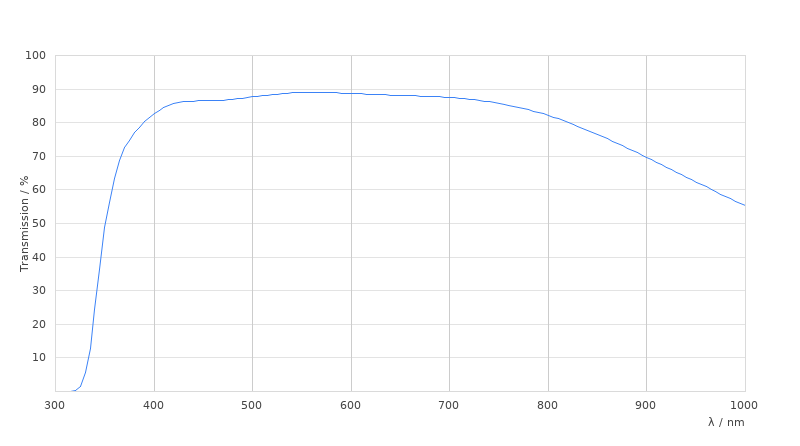

Transmission CurveHC PL FLUOTAR 63x/1.10 IMM CORR PH3
Dimension SheetHC PL FLUOTAR 63x/1.10 IMM CORR PH3
