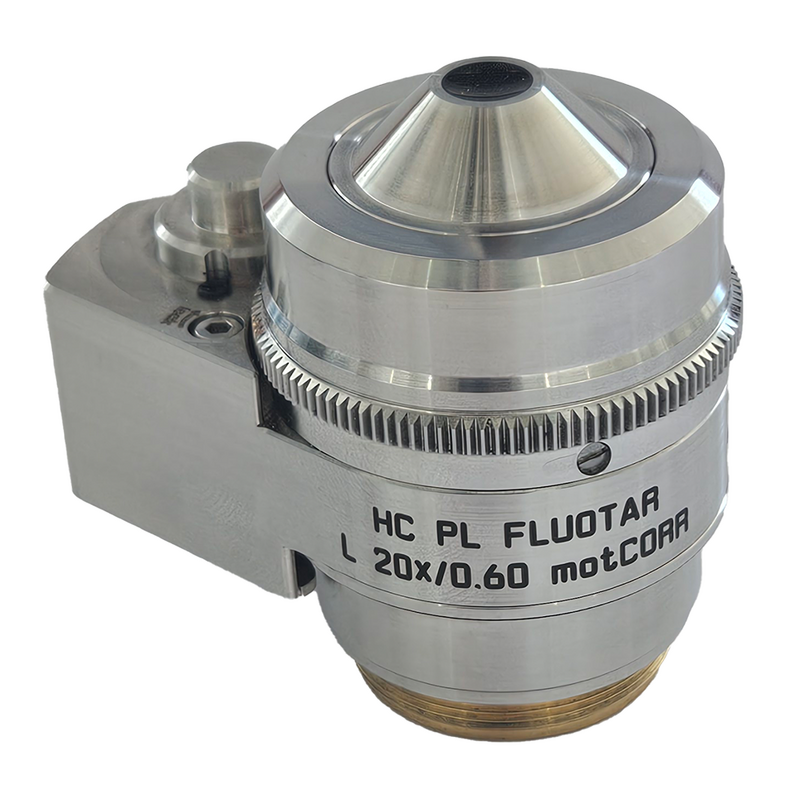

Microscope Objective HC PL FLUOTAR L 20x/0,60 motCORR
Product No. 11506438
Obj. HC PL FLUOTAR L 20x/0.60 motCORR has a magnification of 20X and a numerical aperture of 0.6mm. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 1.87-2.54mm and a FN of 25.
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Technical Specs
| Product Number | 11506438 |
|---|---|
| Correction Ring (CORR) | motCORR |
| Coverglass | With & without |
| Exit Pupil Position/DIC prism | C |
| Field Number (FN) | 25 |
| Free Working Distance (WD in mm) | 1.87-2.54 |
| Immersion | Dry |
| Iris Diaphragm | Without |
| Magnification | 20⨉ |
| Contrasting Methodes | TL-BF, TL-DIC, TL-P, TL-DF, TL-IMC, FLUO |
| Numerical Aperture | 0.6 |
| Objective Thread | M25 |
| Objective Type | PL FLUOTAR |
| Spring Loaded | No |
| Suitable for AFC (Adaptive Focus Control) | AFC suitable |
| Techniques | MotCorr |

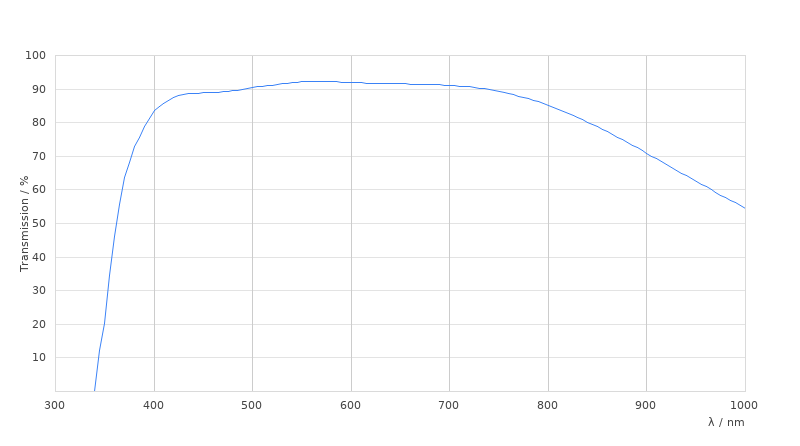

| Transmission | UV (365nm) |
