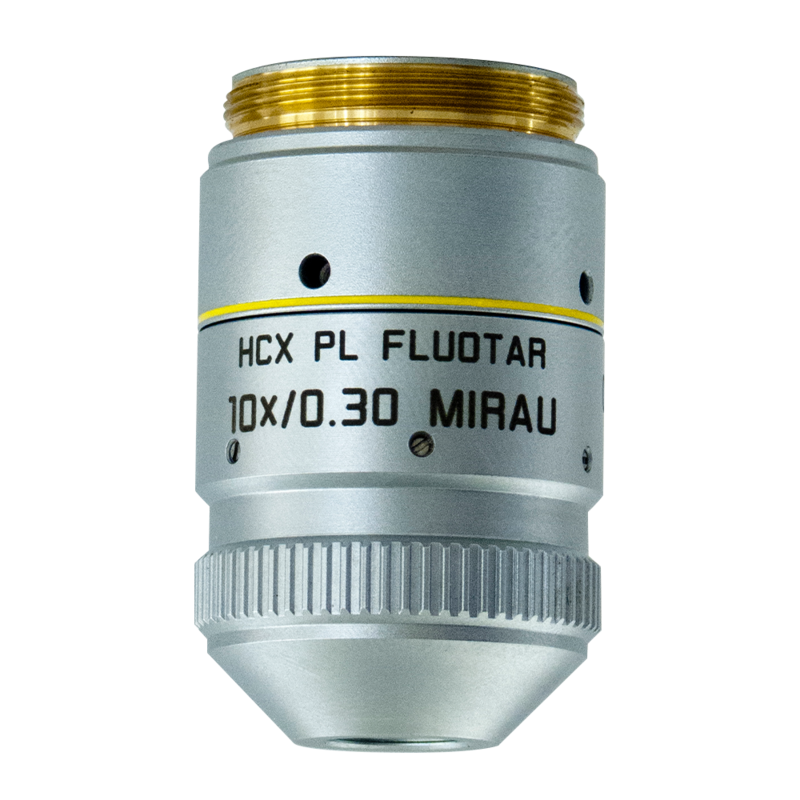

Microscope Objective HC PL FLUOTAR 10x/0.30 MIRAU
Product No. 11532670
Objective HC PL FLUOTAR 10x/0.30 3,57 Mirau has a magnification of 10X and a numerical aperture of 0.30mm. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 4.27mm and a FN of 22.
Technical Specs
Product Number | 11532670 |
---|---|
Correction Ring (CORR) | - |
Coverglass | Without |
Exit Pupil Position/DIC prism | - |
Field Number (FN) | 22 |
Free Working Distance (WD in mm) | 4.27 |
Immersion | Dry |
Iris Diaphragm | Without |
Magnification | 10⨉ |
Contrasting Methodes | TL-BF, TL-P, IL-BF, IL-P |
Numerical Aperture | 0.3 |
Objective Thread | M25 |
Objective Type | PL FLUOTAR |
Spring Loaded | No |
Suitable for AFC (Adaptive Focus Control) | - |
Techniques | IL, Interferometry |

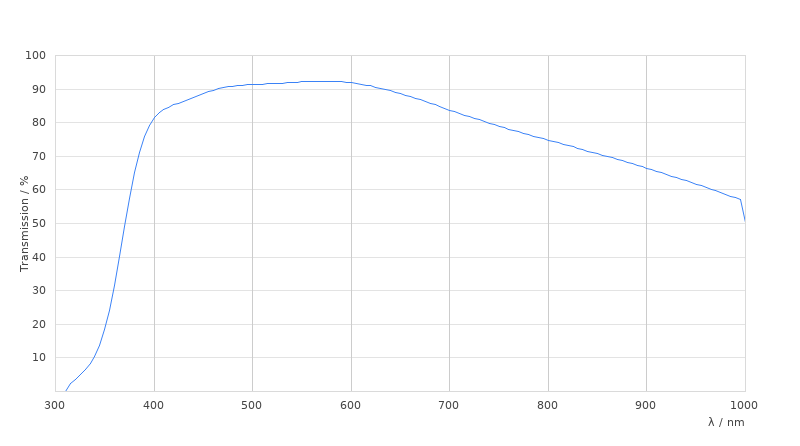

Transmission | UV (340nm) |
