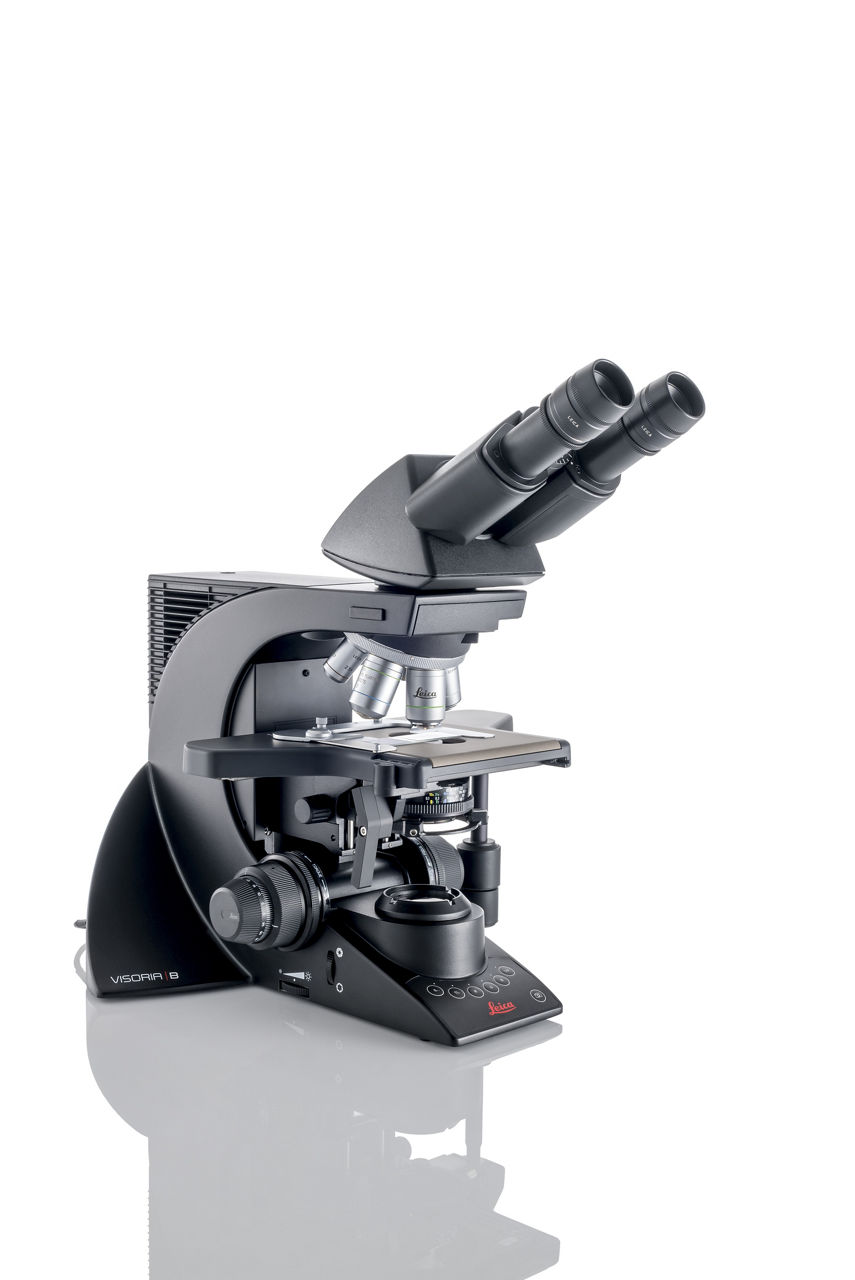

Visoria B Laboratory Microscope for Hematopathology or Clinical Microbiology
Experience enhanced efficiency and comfort in your daily microscopy routine. The Visoria B laboratory microscope is for applications performed in life science and clinical laboratories. Streamline your workflows with encoded functions, optimized light settings, and other microscope features. You can also be more comfortable and minimize strain thanks to the microscope’s ergonomic design. This configuration includes the Visoria B laboratory microscope and is suited for Hematopathology or Clinical Microbiology applications.
Components
Visoria B Laboratory Microscope for Hematopathology or Clinical Microbiology includes: |
Quantity |
|
|---|---|---|
 |
Visoria B IVD Global11561611 |
1 |
|
Focus knobs for Visoria11561608 |
1 |
|
Condenser achr.-apl. A 0.9 (P), CC11501183 |
1 |
|
Ergonomic tilting tube HC LVB 0/4/411501504 |
1 |
|
ErgoStage with Ceramic Plate f. DM2-300011888186 |
1 |
|
Slide holder one hand slide change11505196 |
1 |
|
XY-stage control standard11888153 |
1 |
|
Microscope Objective N PLAN 10x/0,2511506405 |
1 |
|
Focus drive 3-step11561605 |
1 |
|
Object clamp for oil immersion11505218 |
1 |
|
Microscope Objective N PLAN 100x/1,25 OIL11506158 |
1 |
|
Eyepiece HC PLAN s 10x/22 Br. M11507820 |
2 |
|
Microscope Objective N PLAN 5x/0,1211506302 |
1 |
|
Microscope Objective N PLAN 20x/0,4011506096 |
1 |
|
Microscope Objective N PLAN 50x/0,90 OIL11506321 |
1 |
|
Microscope Objective N PLAN 40x/0,7511506314 |
1 |
|
Lamp housing LH113 LED11504199 |
1 |
|
Type F Immersion liquid, ISO 803611513859 |
1 |
|
Dust cover DML/2000/2500/3000 Fluo/Photo11501074 |
1 |
- Visoria B Laboratory microscope (Global IVD) with illumination management
- Ergonomic tilting tube
- Two eyepieces (10x), field of view 22 mm
- High-power white LED
- Contrast methods: Brightfield, Darkfield, Phase
- Encoded nosepiece, 6x
- Objectives (N PLAN): 5x, 10x, 20x, 40x, 50x, 100x
- ErgoStage with Ceramic Plate, with specimen holder
- 3-step focus drive with height-adjustable focus knobs
- Condenser A 0.9 (P)
- Immersion liquid, ISO 8036
- Dust protection cover
- Quick start guide and user manual
Visoria B Laboratory Microscope
Experience enhanced efficiency and comfort in your daily microscopy routine. The Visoria B laboratory microscope is for applications performed in life science and clinical laboratories.
