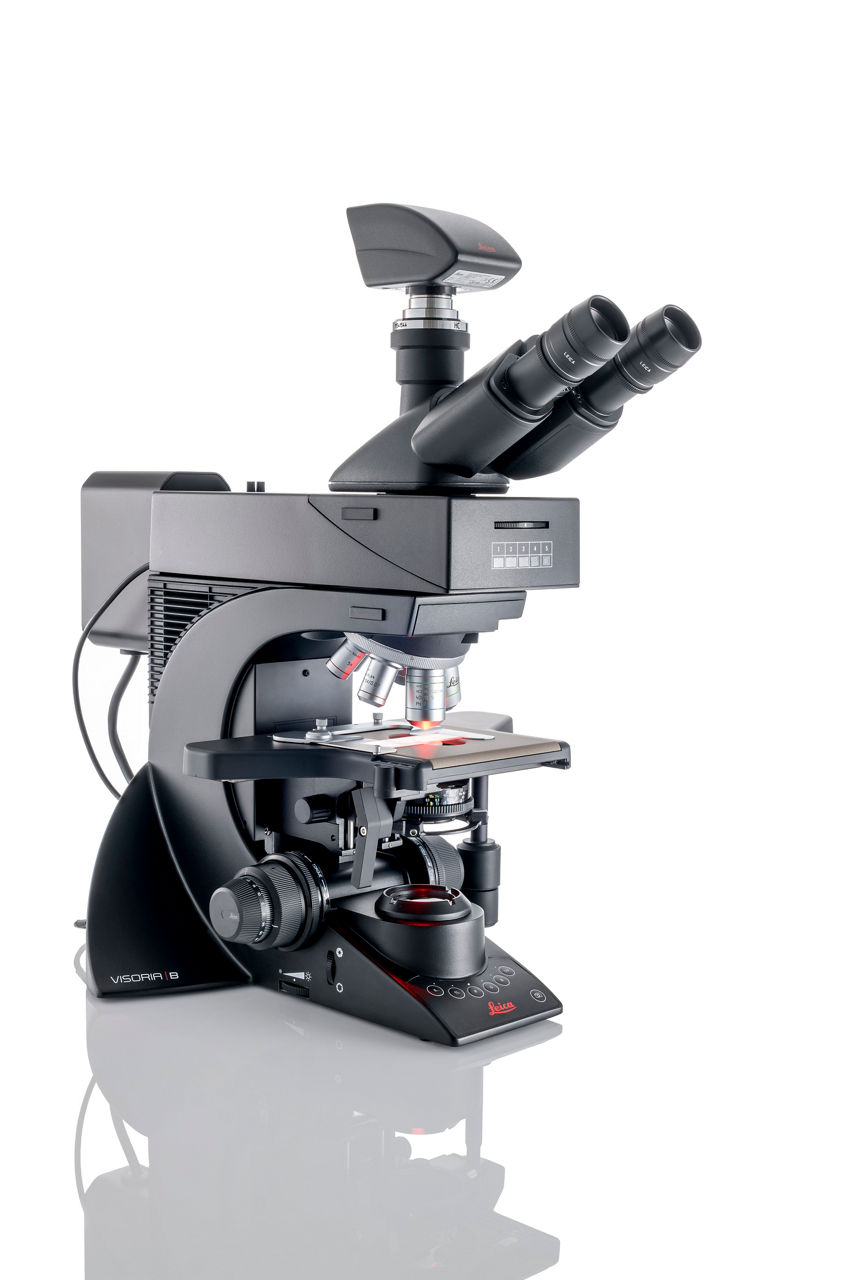

Visoria B Laboratory Microscope for Immunofluorescence

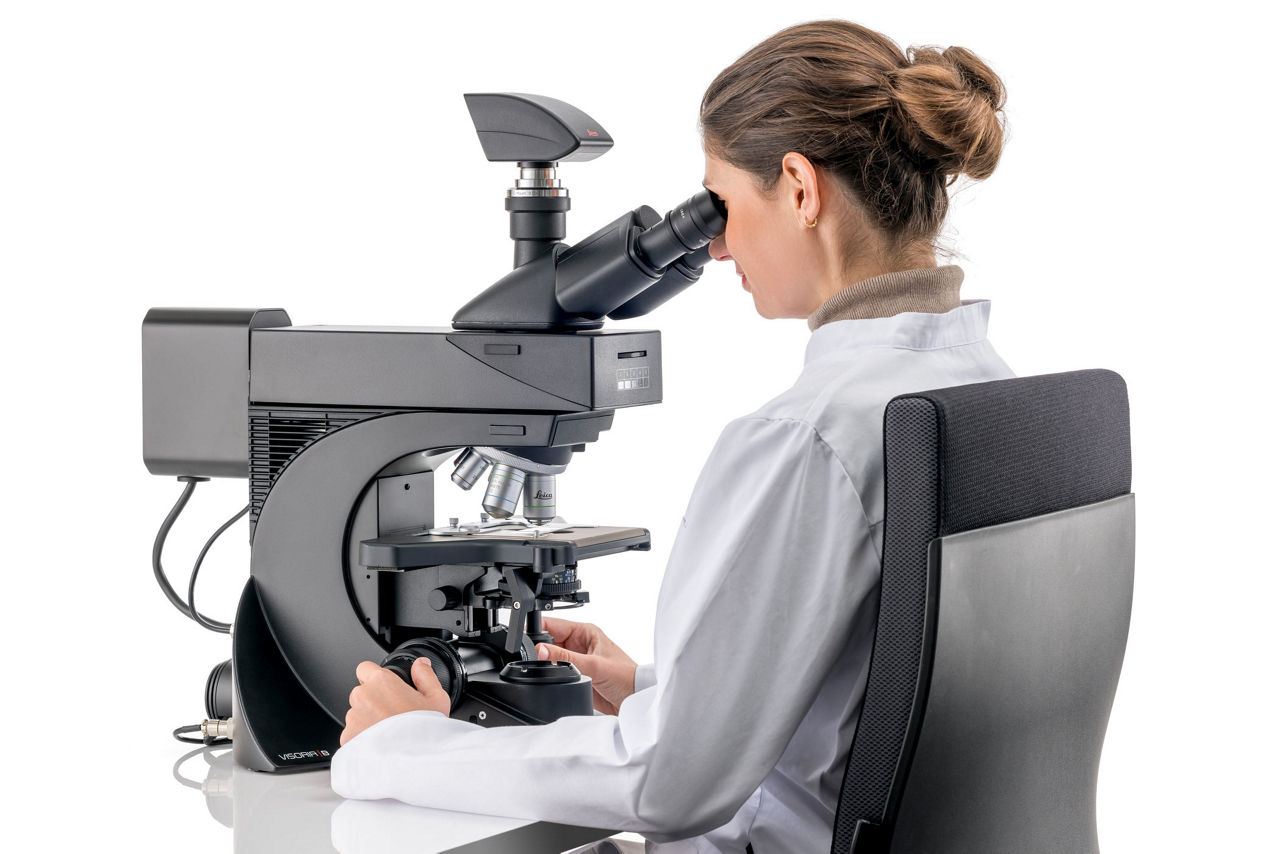

Experience enhanced efficiency and comfort in your daily microscopy routine. The Visoria B laboratory microscope is for applications performed in life science and clinical laboratories. Streamline your workflows with encoded functions, optimized light settings, and other microscope features. You can also be more comfortable and minimize strain thanks to the microscope’s ergonomic design. This configuration includes the Visoria B laboratory microscope as well as the K3M microscope camera and is suited for Immunofluorescence applications.
Components
Visoria B Laboratory Microscope for Immunofluorescence includes: |
Quantity |
|
|---|---|---|
 |
Focusing drive 2-step11561616 |
1 |
|
Focus knobs for Visoria11561608 |
1 |
|
Condenser achr.-apl. A 0.9 (P), CC11501183 |
1 |
|
Dust cover DML/2000/2500/3000 Fluo/Photo11501074 |
1 |
|
ErgoStage with Ceramic Plate f. DM2-300011888186 |
1 |
|
Slide holder one hand slide change11505196 |
1 |
|

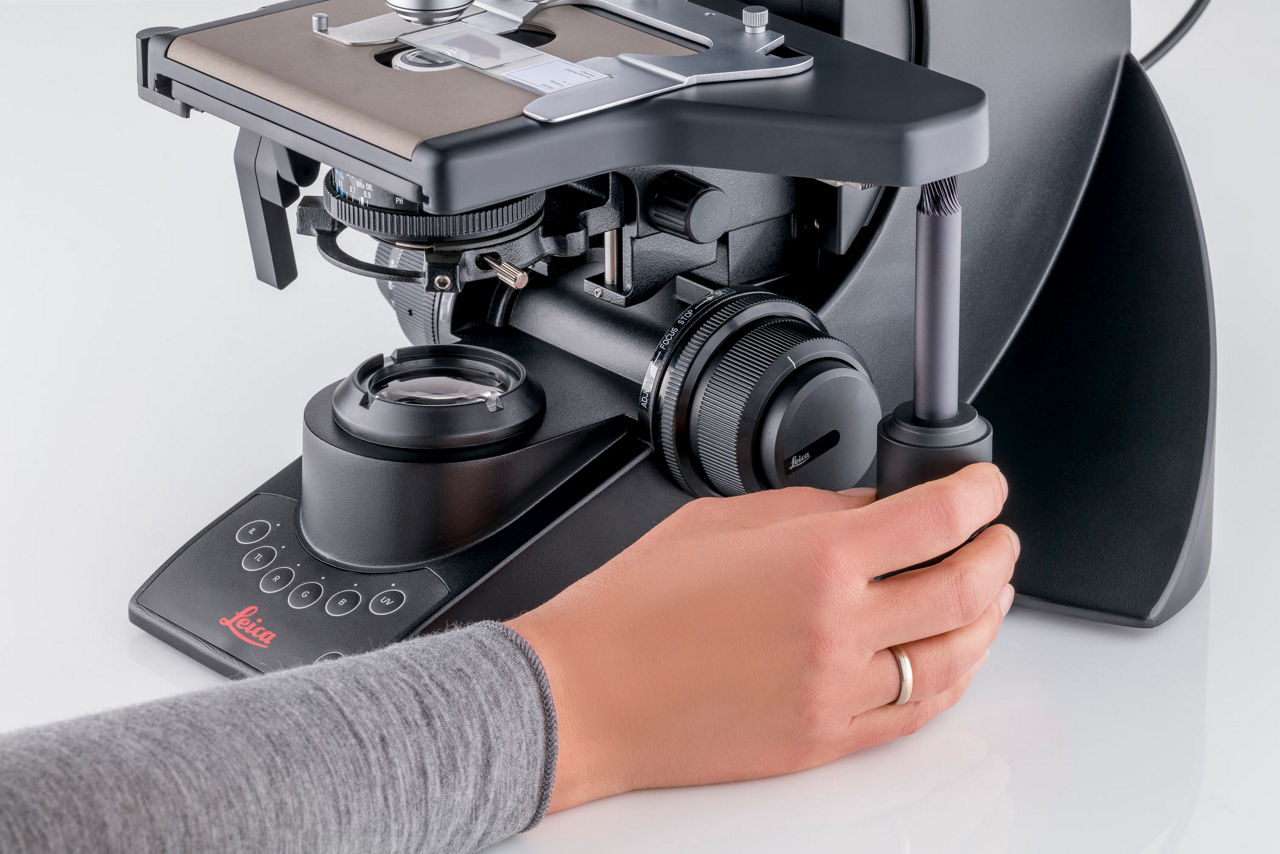

XY-stage control standard11888153 |
1 |
|
Microscope Objective N PLAN 5x/0,1211506302 |
1 |
|
Microscope Objective N PLAN 10x/0,2511506405 |
1 |
|
Microscope Objective N PLAN 20x/0,4011506096 |
1 |
|
Microscope Objective N PLAN 40x/0,7511506314 |
1 |
|
C-Mount HC 0.50x11541550 |
1 |
|
Lamp housing LH113 LED11504199 |
1 |
|
Phototube HC L1T 4/5/7, trinocular11561622 |
1 |
|
Eyepiece HC PLAN s 10x/22 Br. M11507820 |
2 |
|
Object clamp for oil immersion11505218 |
1 |
|
Microscope Objective N PLAN 50x/0,90 OIL11506321 |
1 |
|
Microscope Objective N PLAN 100x/1,25 OIL11506158 |
1 |
|
Type F Immersion liquid, ISO 803611513859 |
1 |
|
Leica K3M11547113 |
1 |
|
Visoria B RUO11561613 |
1 |
|
Fluo Axis 5 Pos.11561619 |
1 |
|

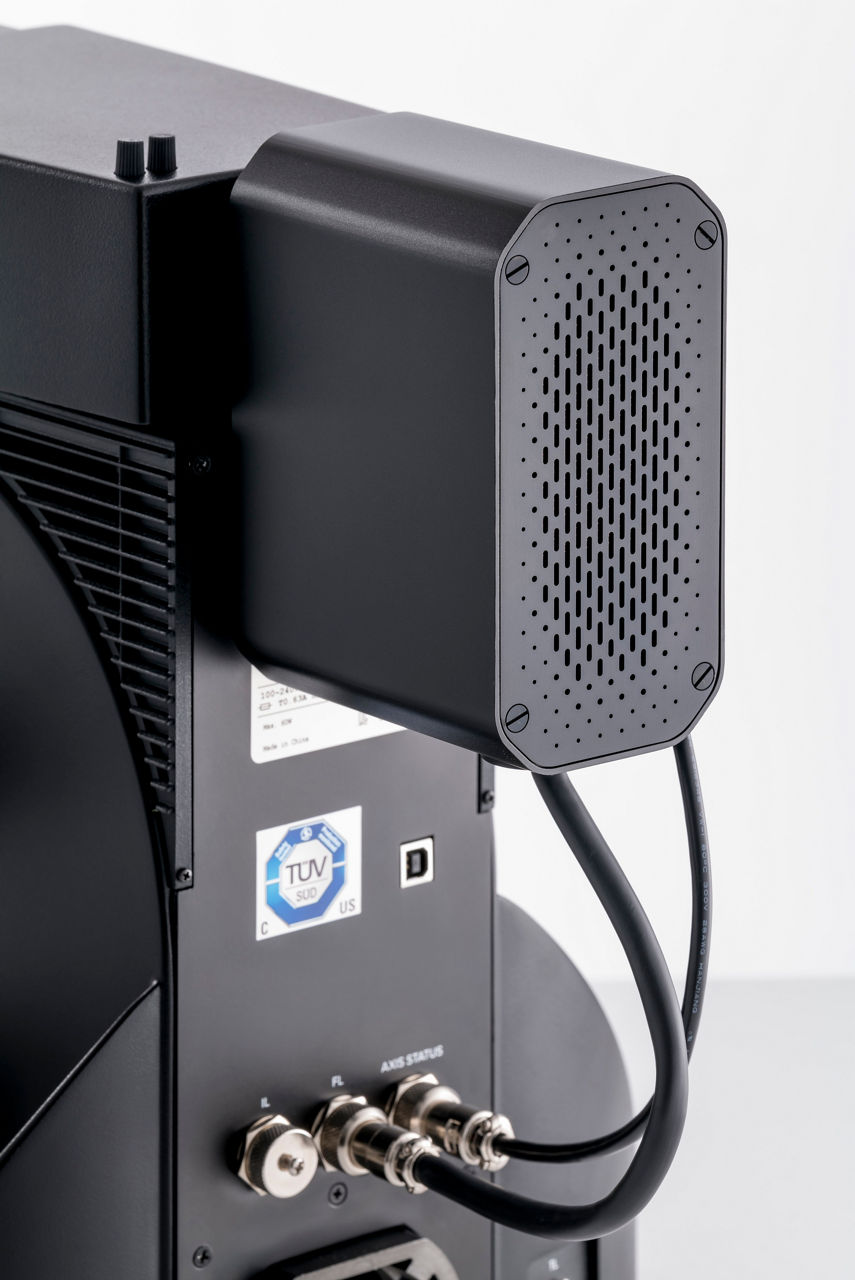

4 channels LED light source11561604 |
1 |
|
Filter system I3; size 'k'11513878 |
1 |
|
Filter system N2.1; size 'k'11513882 |
1 |
|
Filter system DAPI ET; size 'k'11504203 |
1 |
|
Filter system Y5 ET, k11504171 |
1 |
- Visoria B Laboratory microscope (Research use only) with illumination management
- Trinocular phototube
- Two eyepieces (10x), field of view 22 mm

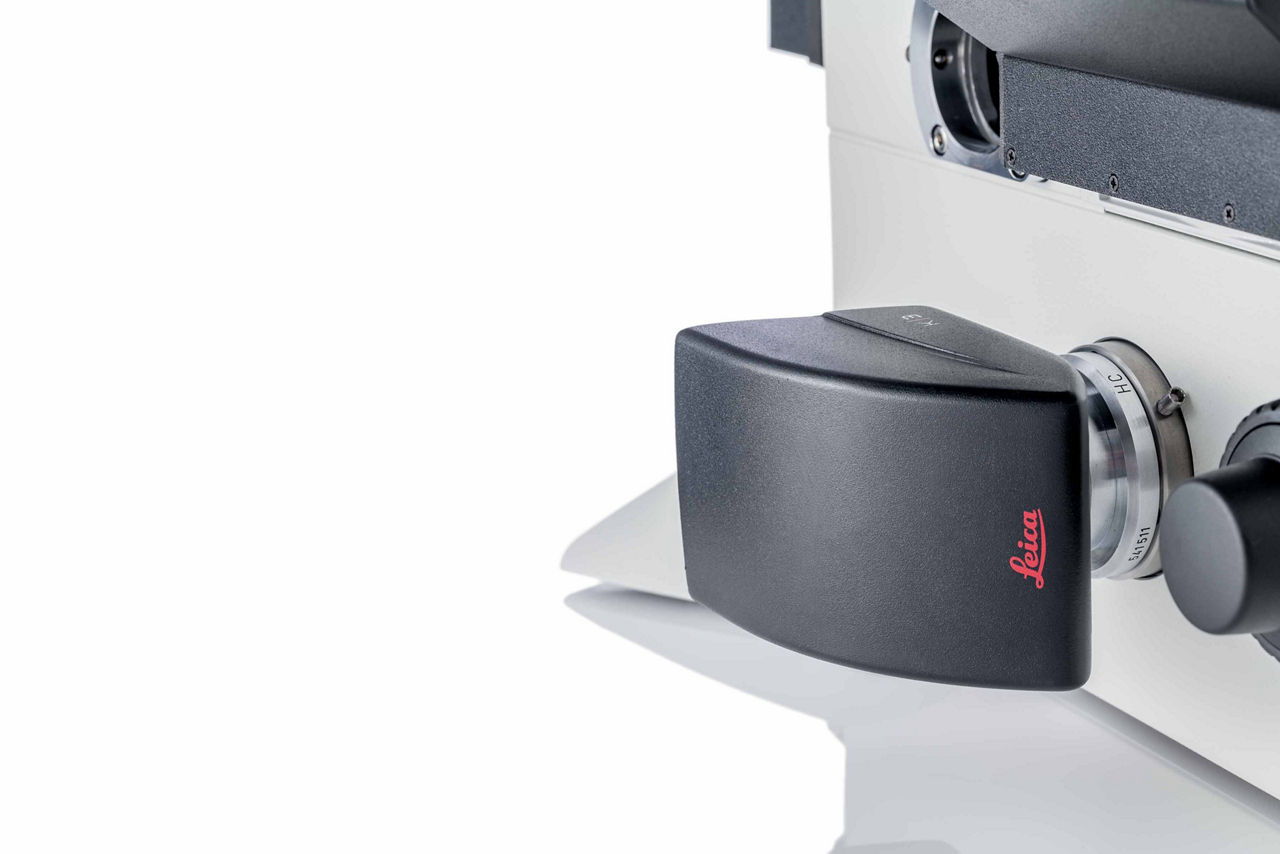

- K3M microscope camera, incl. c-mount 0.5x
- High-power white LED and 4-channel LED light source

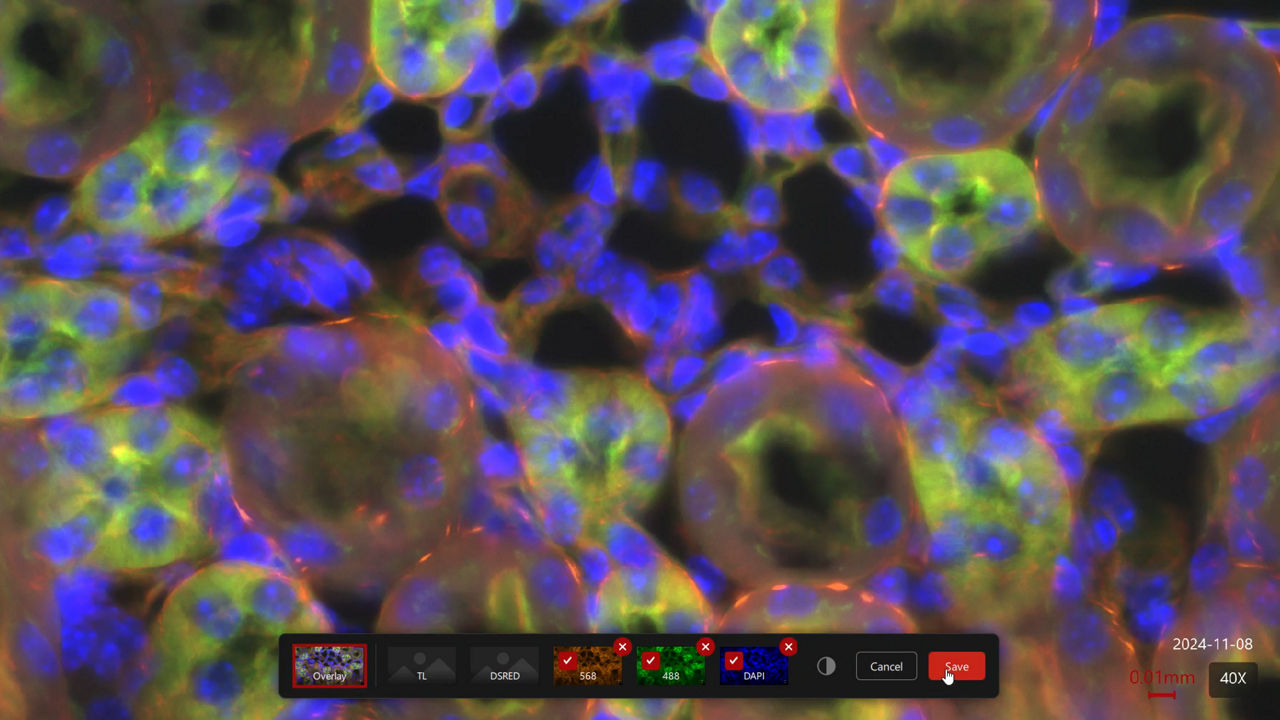

- Fluorescence axis, 5-position, with four filters (Y5, I3, N2.1, DAPI )
- Contrast methods: Brightfield, Fluorescence
- Encoded nosepiece, 6x
- Objectives (N PLAN): 5x, 10x, 20x, 40x, 50x, 100x
- ErgoStage with Ceramic Plate, with specimen holder
- 2-step focus drive with height-adjustable focus knobs

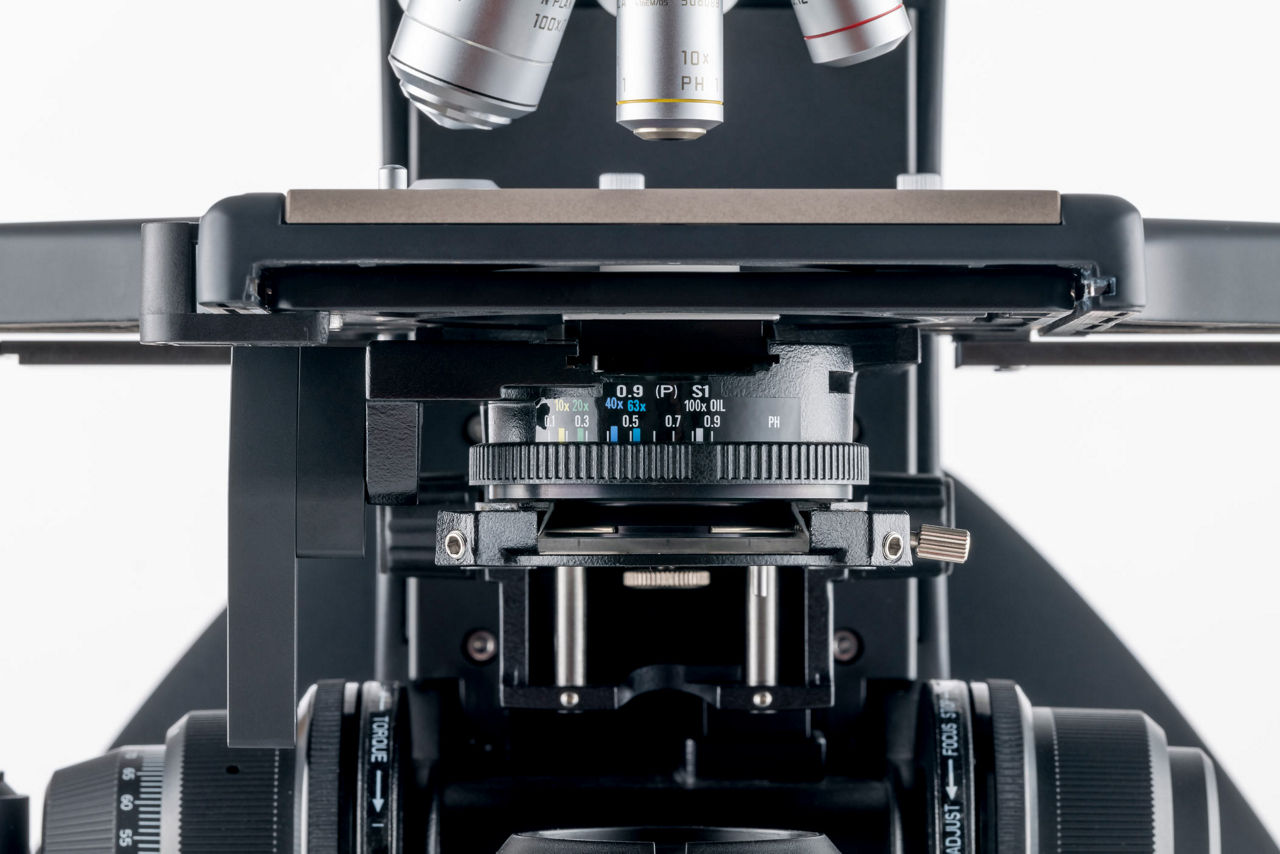

- Condenser A 0.9 (P)
- Immersion liquid, ISO 8036
- Dust protection cover
- Quick start guide and user manual
Visoria B Laboratory Microscope
Experience enhanced efficiency and comfort in your daily microscopy routine. The Visoria B laboratory microscope is for applications performed in life science and clinical laboratories.
