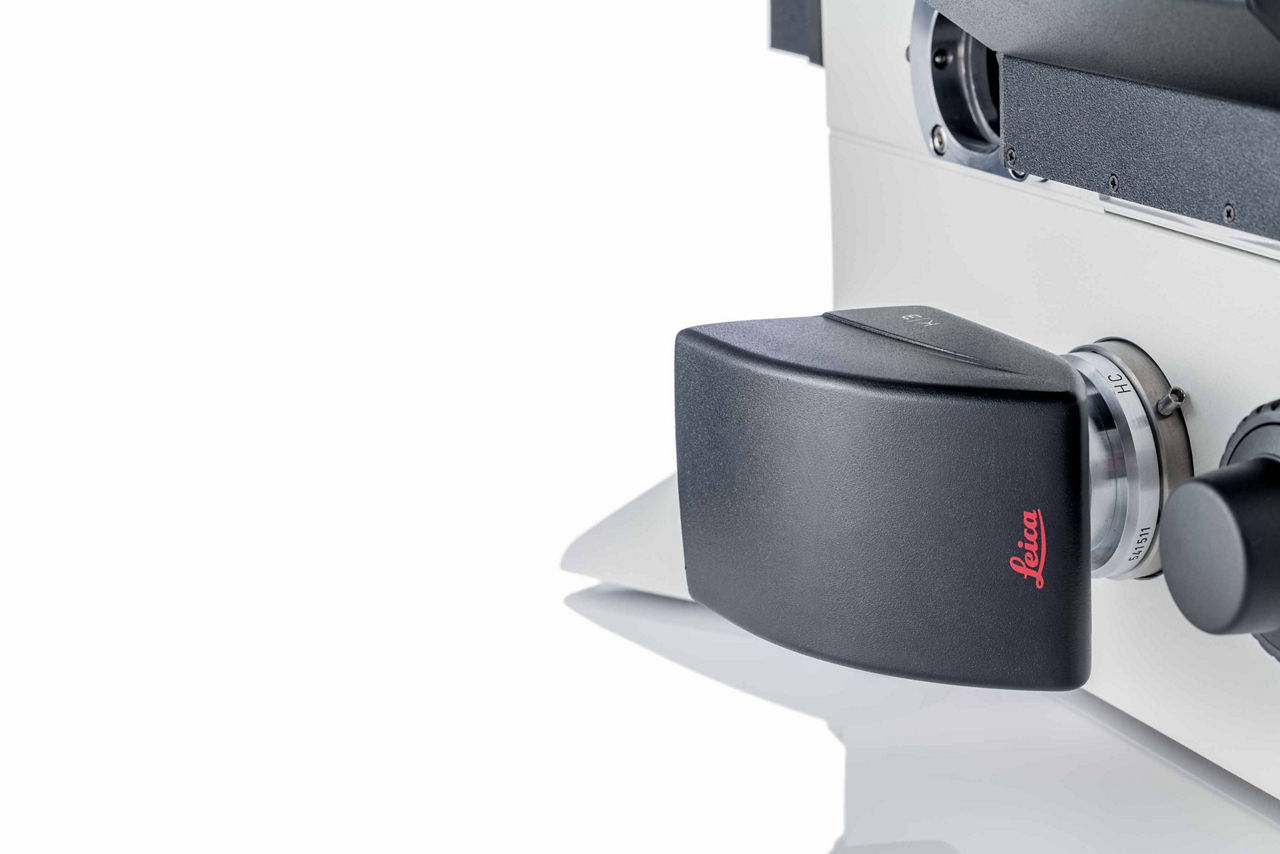

Visoria B Laboratory Microscope

Power up routines with efficiency and comfort

Microscope
Size and weightLength: 410 mm, 456 mm (with fluorescence lamphouse), width: 331 mm, height: 505 mm, approx. 18 kg (depending on configuration)
StandIllumination toggle buttons with status indicator, image capture button, antimicrobial surface with AgTreat according to ISO 22196
Optics
NosepieceEncoded 6x (M25)
Eyepieces (FOV)20 / 22 / 25 mm
TubesWide range of standard, ergonomic and phototubes with different beam splitters available
Digital versionDigital version with 10” screen / tablet
Ergonomic accessories Wide range of ergonomic accessories available (ErgoTubes, ErgoLift, ErgoModules)
Encoded illumination management IL and TL: High-power white LED, encoded 4-color fluorescence illumination: emission wavelengths: UV 370 / 12 nm, B 465 / 20 nm, G 546 / 82 nm, R 624 / 15 nm, further external light sources on request (non-encoded)
Fluorescence light axis Optional
Incident light (IL) Methods: Brightfield, fluorescence, DIC, qualitative polarization
Transmitted light axisManual, fixed and flip-top condenser operation with color-coded diaphragm assistant
Transmitted light (TL) Methods: Brightfield, darkfield, phase contrast, DIC, qualitative polarization
Operation
Stage Manual XY stage with ceramic plate, additional manual xy stages available, 1-specimen or 2-specimen holder
Stage controlLeft-, right-handed stage, torque-adjustable handle
Focus driveHeight-adjustable focus knobs, 19 mm travel range, maximum 28 mm total stage stroke depending on stage and condenser type, 2-gear focus drive (coarse / fine) with 1 mm scale, 3-gear focus drive (coarse / medium / fine) with 140, 4 and 1 µm scale, torque adjustment, and adjustable upper focus-stop
Accessories
Analyzer Fixed, 180°, 360°
Polarizer Fixed and rotatable
General specifications
Supply voltage100–240 V AC, 50 / 60 Hz, power consumption max. 15 W
Ambient conditions15–35°C, relative humidity max. 80% up to 30°C (non-condensing)
