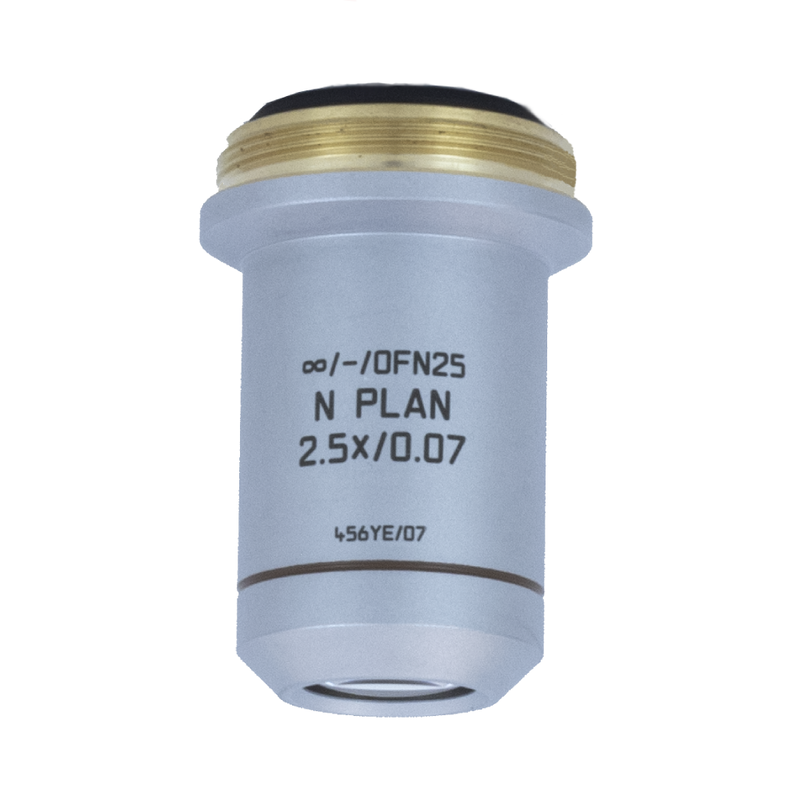

Microscope Objective N PLAN 2,5x/0,07

Objective N PLAN 2,5x/0,07 has a magnification of 2.5X and a numerical aperture of 0.07mm. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 11.2mm and a FN of 22.

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
N PLAN 2,5x/0,07
N PLAN 2,5x/0,07
N PLAN 2,5x/0,07
N PLAN 2,5x/0,07
N PLAN 2,5x/0,07
N PLAN 2,5x/0,07

Technical Specs

Article Number 11506083
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 22
Free Working Distance (WD in mm) 11.2
Immersion Dry
Iris Diaphragm Without
Magnification 2.5⨉
Contrasting Methodes TL-BF, TL-P, IL-BF, IL-P, FLUO
Numerical Aperture 0.07
Objective Thread M25
Objective Type N PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques IL

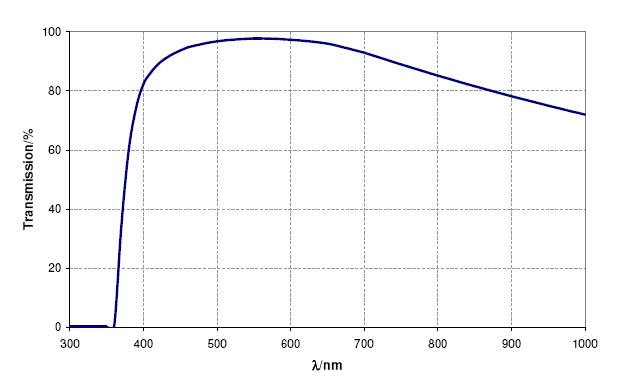

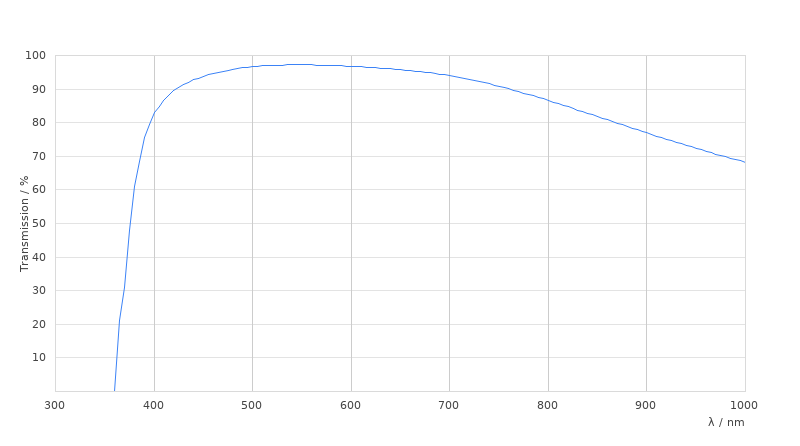

Transmission UV (365nm)
