HC APO L 20x/0,50 W U-V-I

Article Number 11506147
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism D
Field Number (FN) 22
Free Working Distance (WD in mm) 3.5
Immersion Water
Iris Diaphragm Without
Magnification 20⨉
Contrasting Methodes TL-BF, TL-DIC, TL-DF, FLUO
Numerical Aperture 0.5
Objective Thread M25
Objective Type APO
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques Electrophysiology, MP
Transmission UV (340nm)

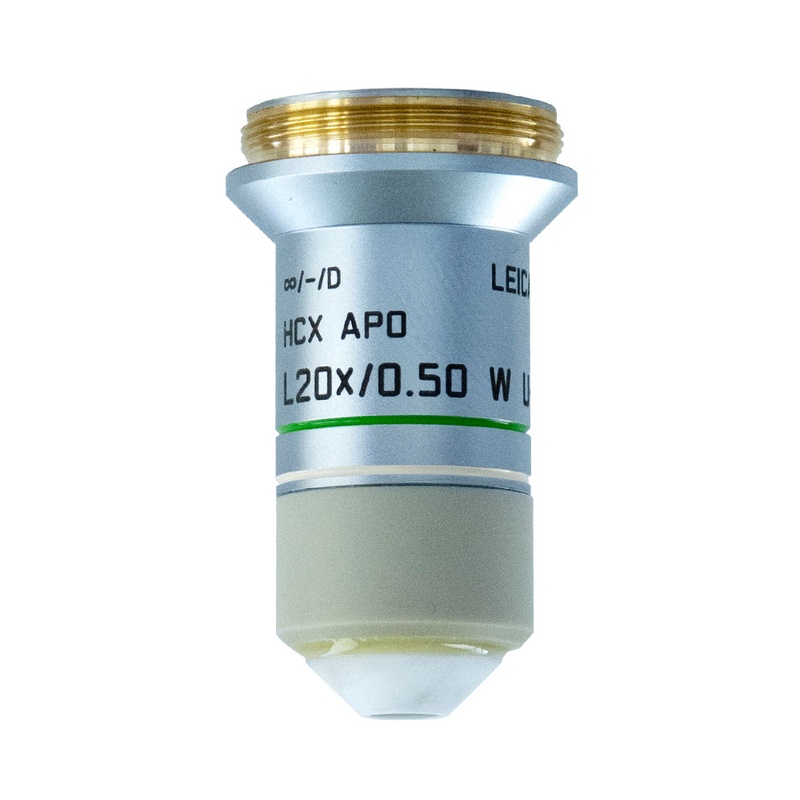

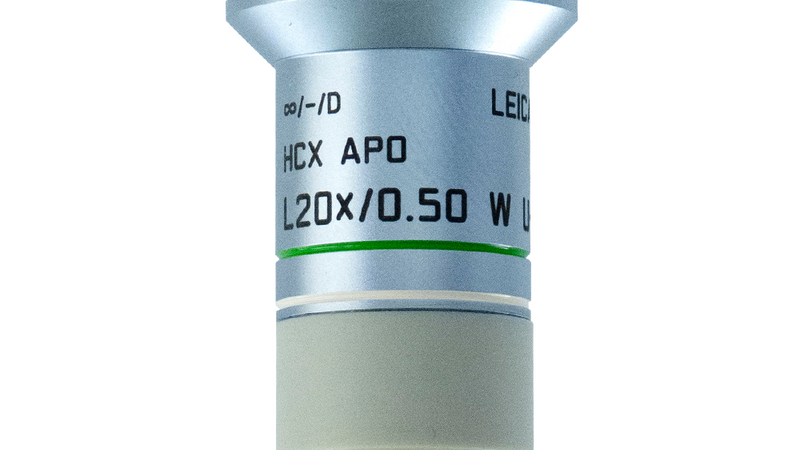

Figure

HC APO L 20x/0,50 W U-V-I

Transmission Curve

HC APO L 20x/0,50 W U-V-I

Dimension Sheet

HC APO L 20x/0,50 W U-V-I
