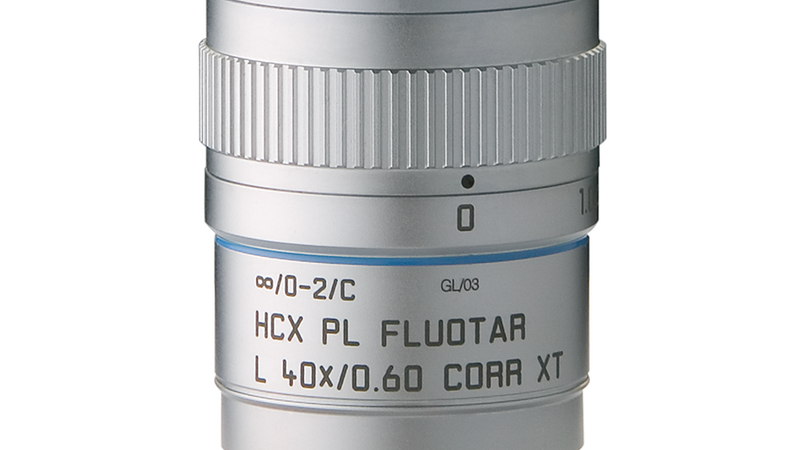

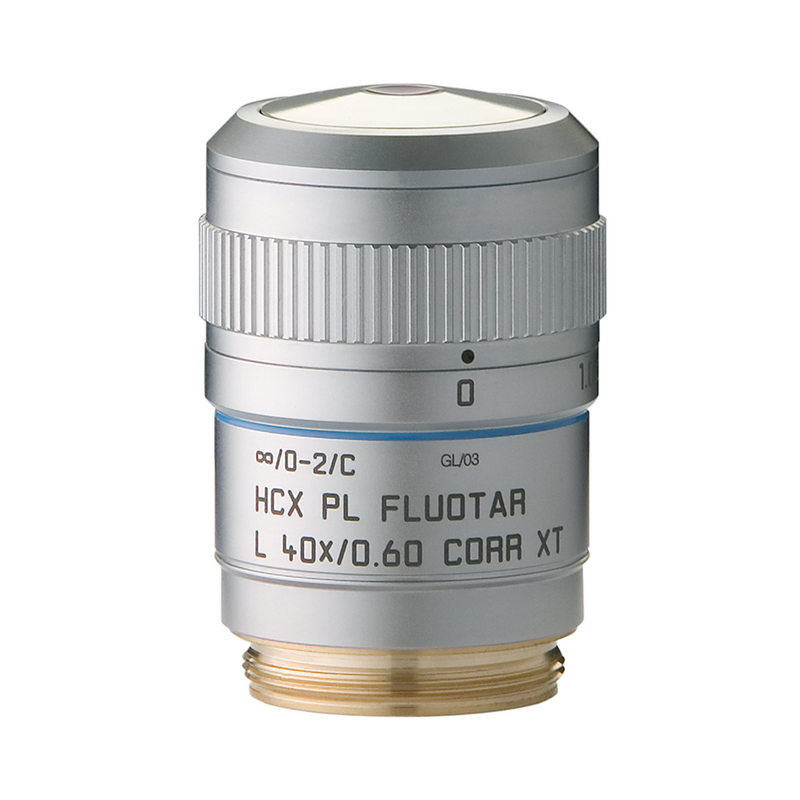

HC PL FLUOTAR L 40x/0.60 CORR XT

HC PL FLUOTAR L 40x/0.60 CORR XT
Numerical Aperture 0.6
Suitable for AFC (Adaptive Focus Control) NO
Correction Ring (CORR) CORR
Coverglass With & without
Exit Pupil Position/DIC prism C
Field of View (FOV in mm) 25
Immersion DRY
Iris Diaphragm 0
Spring Loaded NO

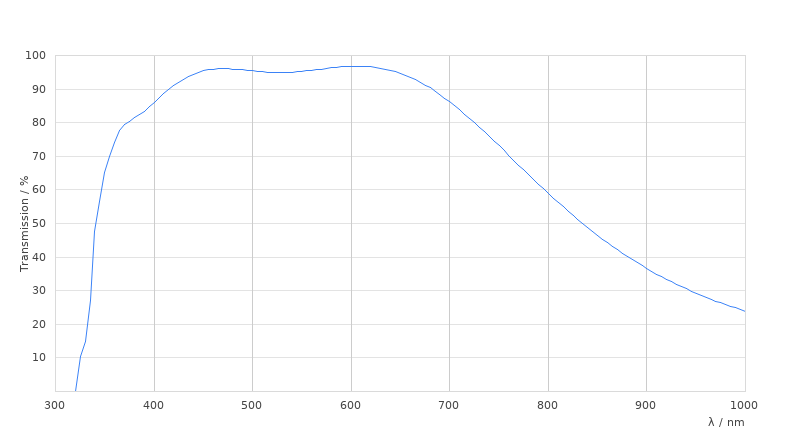

Transmission UV (340nm)
Magnification 40

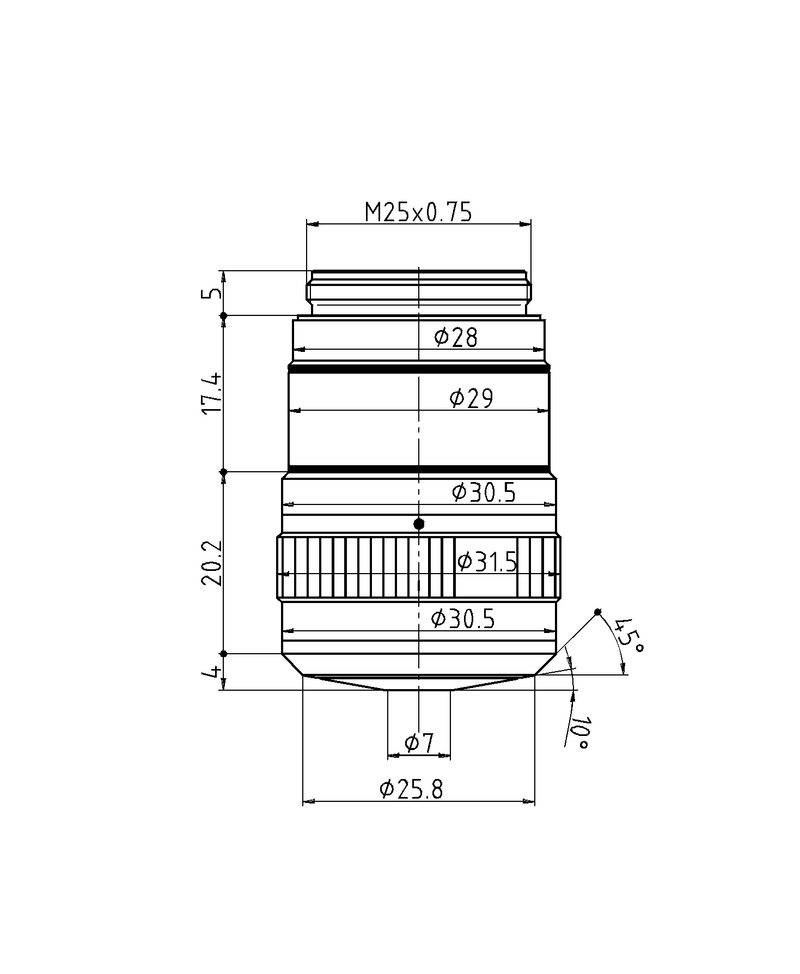

Objective Thread M25
Free Working Distance (WD in mm)3.3-1.9
Objective Type PL FLUOTAR
Article Number 11506208
