HC PL FLUOTAR L 40x/0,60 CORR PH2 XT

Article Number 11506209
Correction Ring (CORR) CORR
Coverglass With & without
Exit Pupil Position/DIC prism C
Field Number (FN) 25
Free Working Distance (WD in mm) 3.3-1.9
Immersion Dry
Iris Diaphragm Without
Magnification 40⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-DF, TL-PH, TL-IMC, FLUO
Numerical Aperture 0.6
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques LMD, PH2, XT
Transmission UV (340nm)

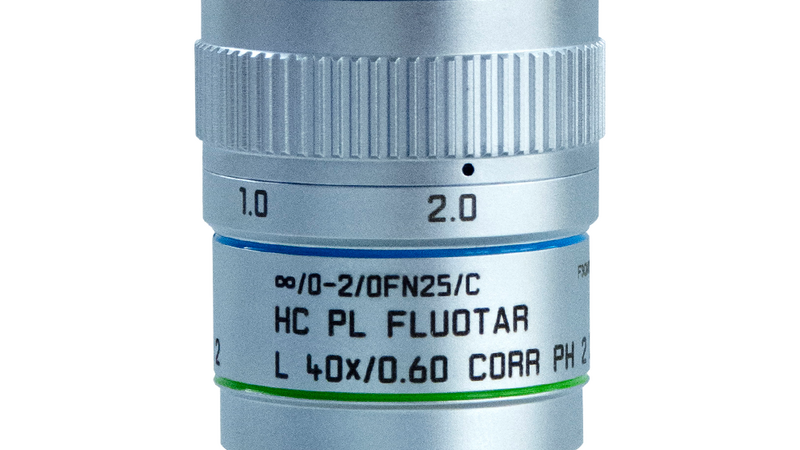

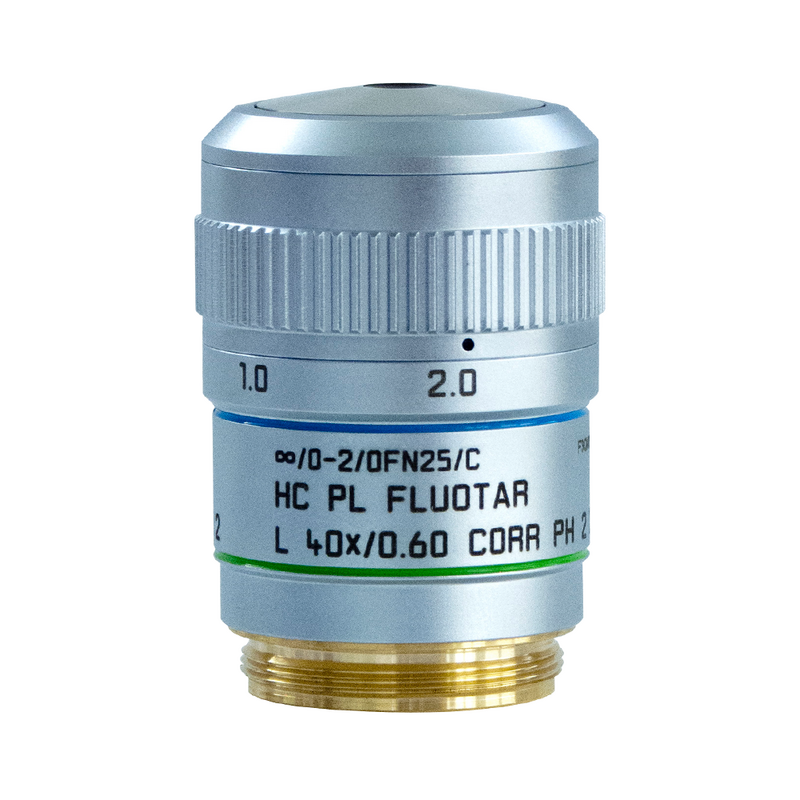

Figure

HC PL FLUOTAR L 40x/0,60 CORR PH2 XT

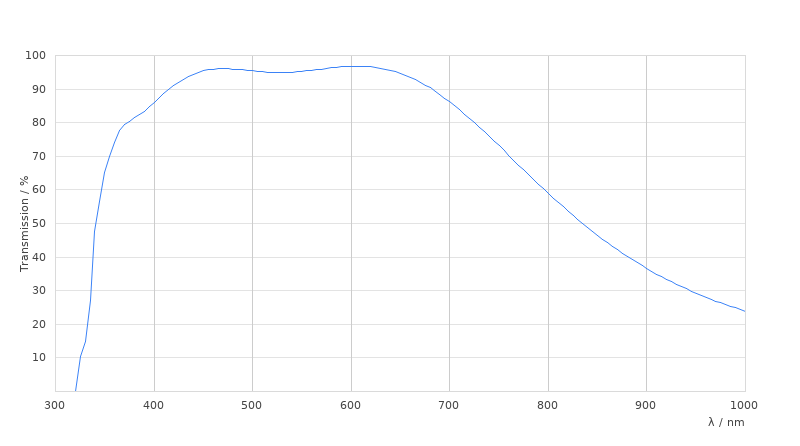

Transmission Curve

HC PL FLUOTAR L 40x/0,60 CORR PH2 XT

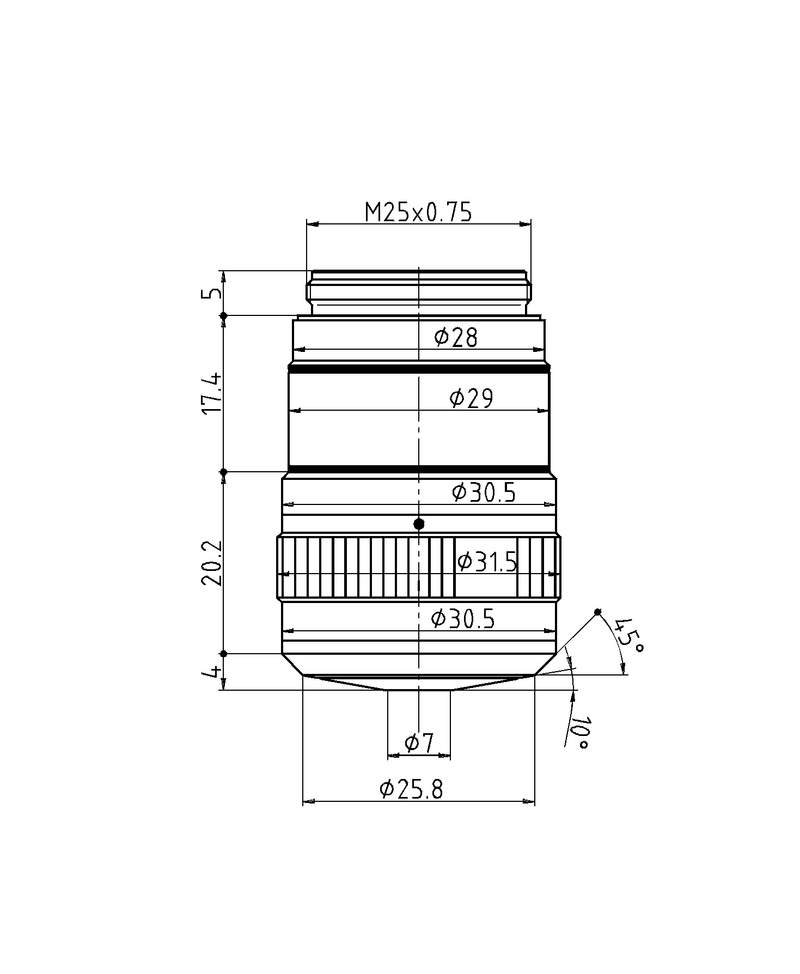

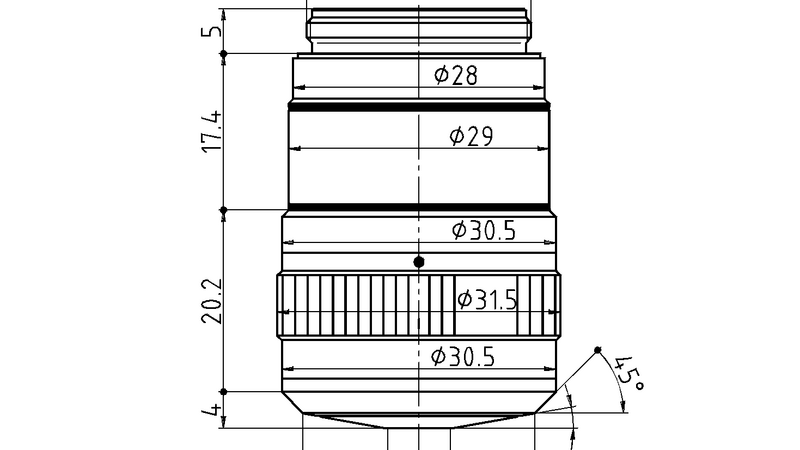

Dimension Sheet

HC PL FLUOTAR L 40x/0,60 CORR PH2 XT
