HC PL FLUOTAR L 20x/0,40 CORR PH1

Article Number 11506243
Correction Ring (CORR) CORR
Coverglass With & without
Exit Pupil Position/DIC prism C
Field Number (FN) 25
Free Working Distance (WD in mm) 7.5-6.2
Immersion Dry
Iris Diaphragm Without
Magnification 20⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-DF, TL-PH, TL-IMC, FLUO
Numerical Aperture 0.4
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques LMD, PH1
Transmission UV (340nm)

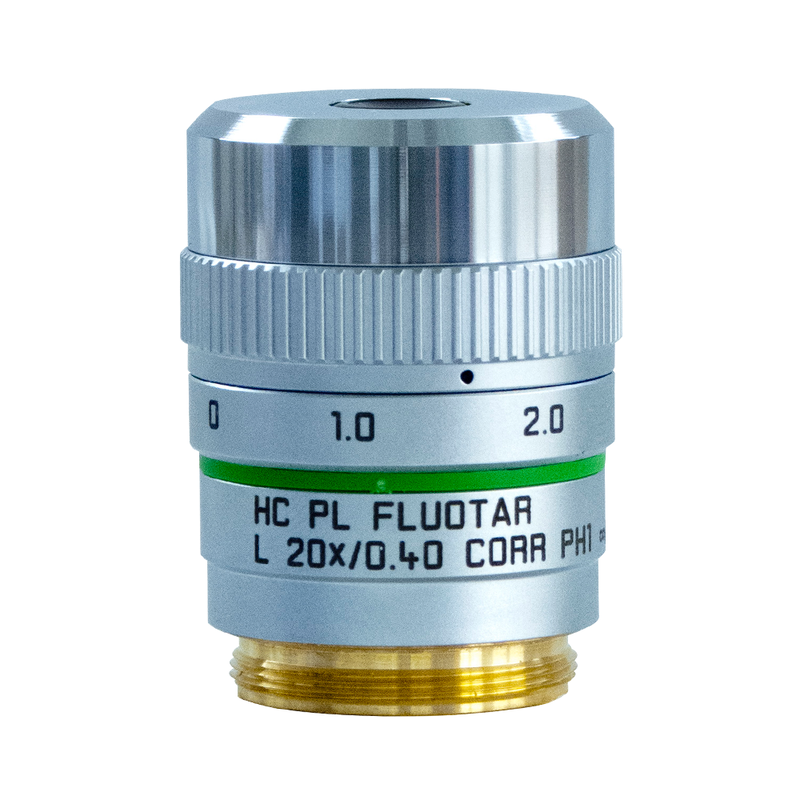

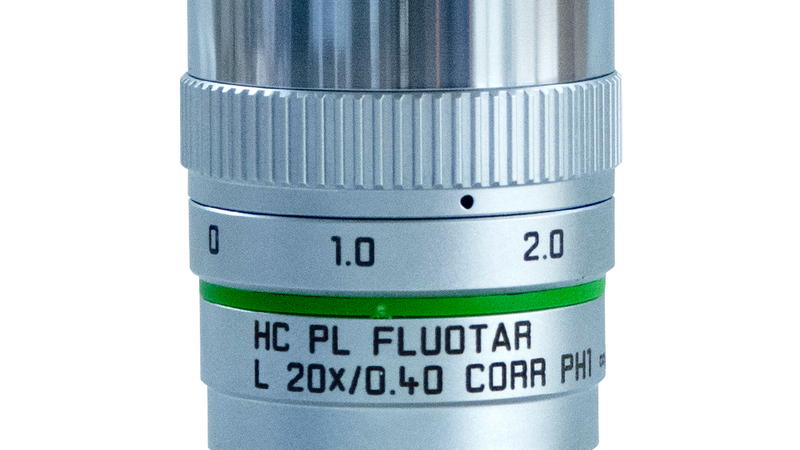

Figure

HC PL FLUOTAR L 20x/0,40 CORR PH1

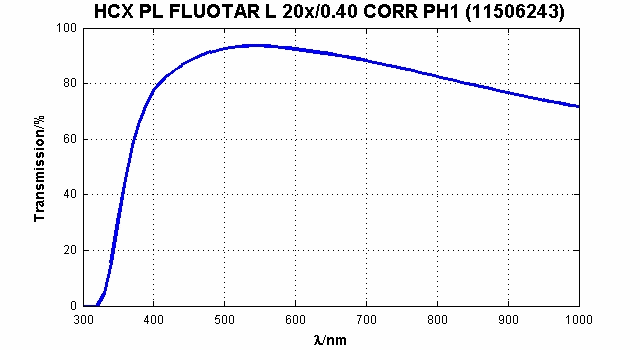

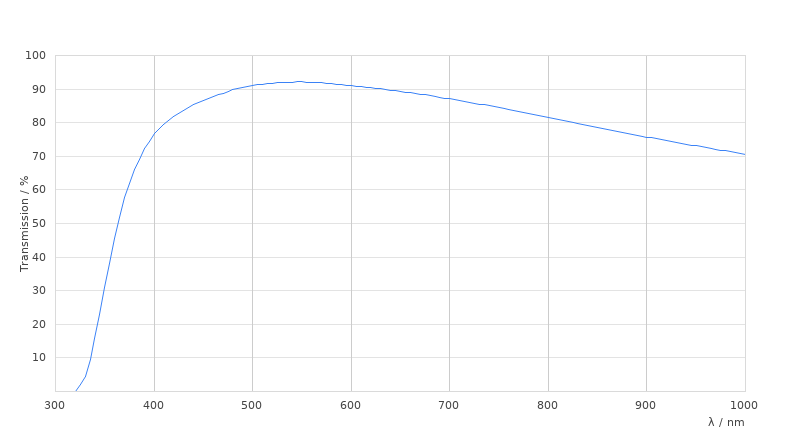

Transmission Curve

HC PL FLUOTAR L 20x/0,40 CORR PH1

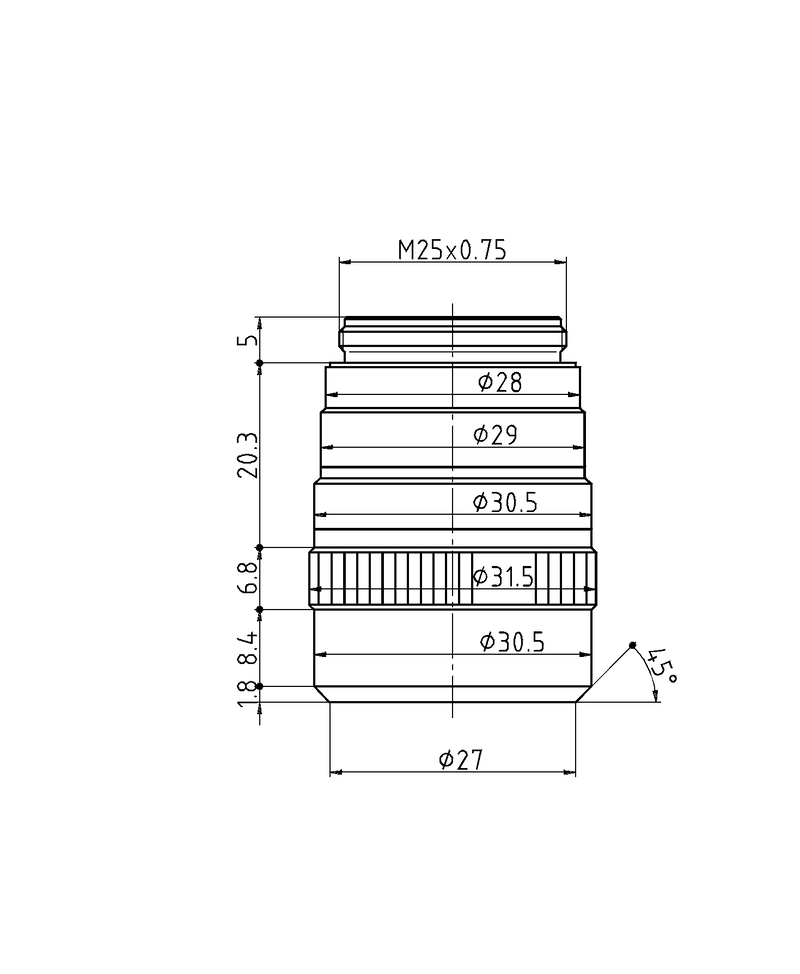

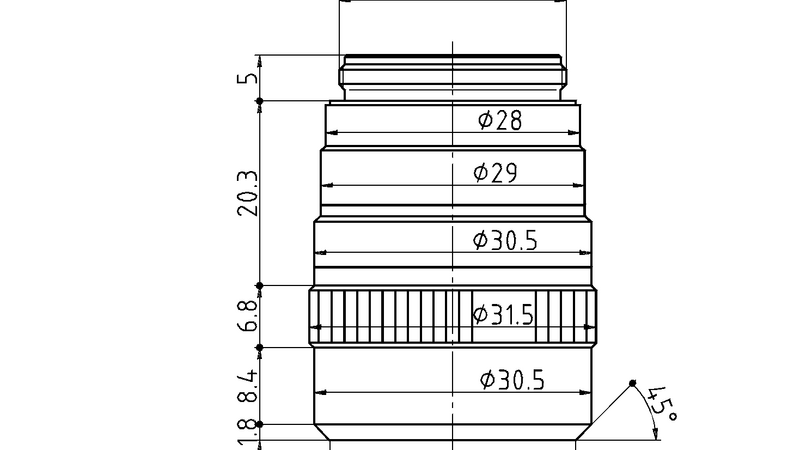

Dimension Sheet

HC PL FLUOTAR L 20x/0,40 CORR PH1
