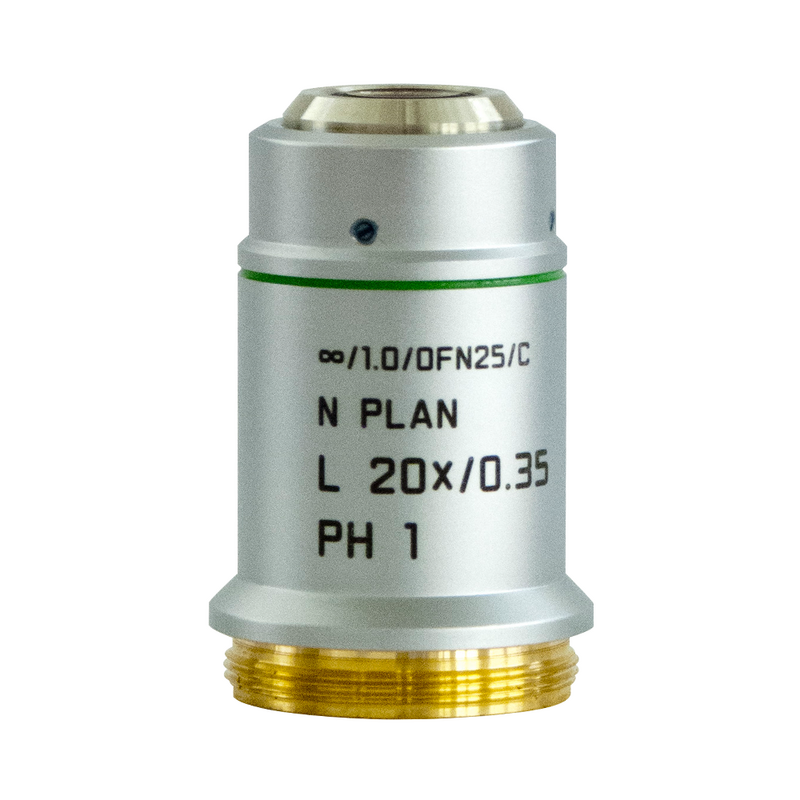

N PLAN L 20x/0,35 PH1

N PLAN L 20x/0,35 PH1
Numerical Aperture 0.35
Suitable for AFC (Adaptive Focus Control) YES
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field of View (FOV in mm) 22
Immersion DRY
Iris Diaphragm 0
Spring Loaded NO

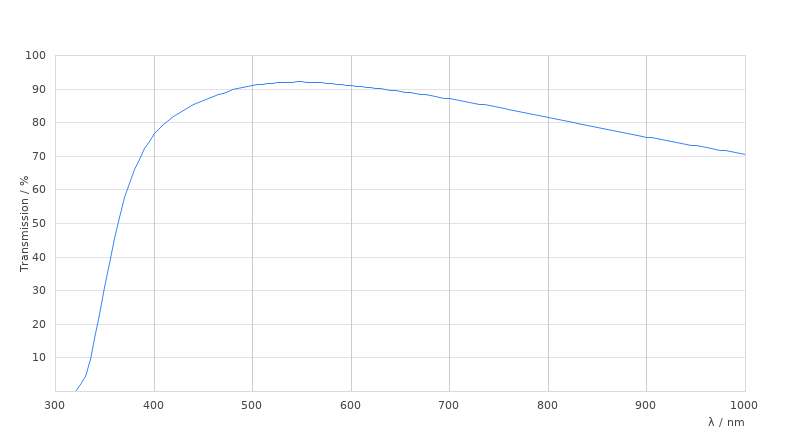

Transmission UV (340nm)
Magnification 20
Objective Thread M25
Free Working Distance (WD in mm)6.9
Objective Type N PLAN
Article Number 11506248
