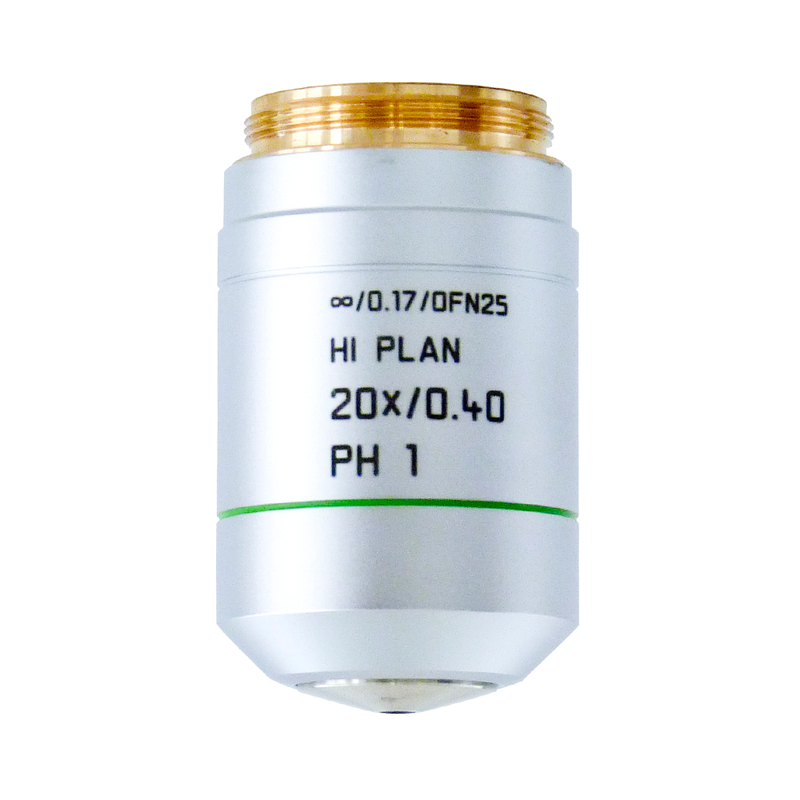

Microscope Objective HI PLAN 20x/0,40 PH1
<p>Objective HI PLAN 20x/0,40 PH1 has a magnification of 20X and a numerical aperture of 0.4mm. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 0.92mm and a FN of 20.</p>
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Technical Specs
| Article Number | 11506278 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | With |
| Exit Pupil Position/DIC prism | - |
| Field Number (FN) | 20 |
| Free Working Distance (WD in mm) | 0.92 |
| Immersion | Dry |
| Iris Diaphragm | Without |
| Magnification | 20⨉ |
| Contrasting Methodes | TL-BF, TL-DF, TL-PH, FLUO |
| Numerical Aperture | 0.4 |
| Objective Thread | M25 |
| Objective Type | HI PLAN |
| Spring Loaded | No |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | PH1 |
| Transmission | - |
