Microscope Objective N PLAN 5x/0,12
Objective N PLAN 5x/0,12 has a magnification of 5X and a numerical aperture of 0.12mm. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 14.0mm and a FN of 22.
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Technical Specs
| Article Number | 11506302 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | With & without |
| Exit Pupil Position/DIC prism | B |
| Field Number (FN) | 22 |
| Free Working Distance (WD in mm) | 14.0 |
| Immersion | Dry |
| Iris Diaphragm | Without |
| Magnification | 5⨉ |
| Contrasting Methodes | TL-BF, TL-DIC, TL-P, TL-DF, TL-IMC, FLUO |
| Numerical Aperture | 0.12 |
| Objective Thread | M25 |
| Objective Type | N PLAN |
| Spring Loaded | No |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | |

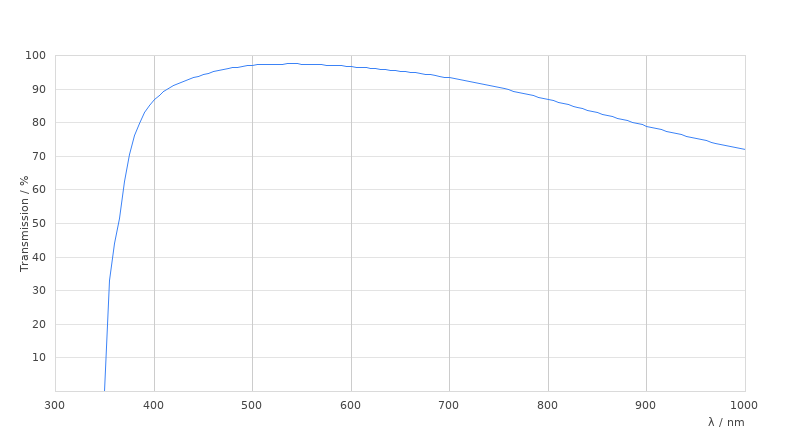

| Transmission | - |
