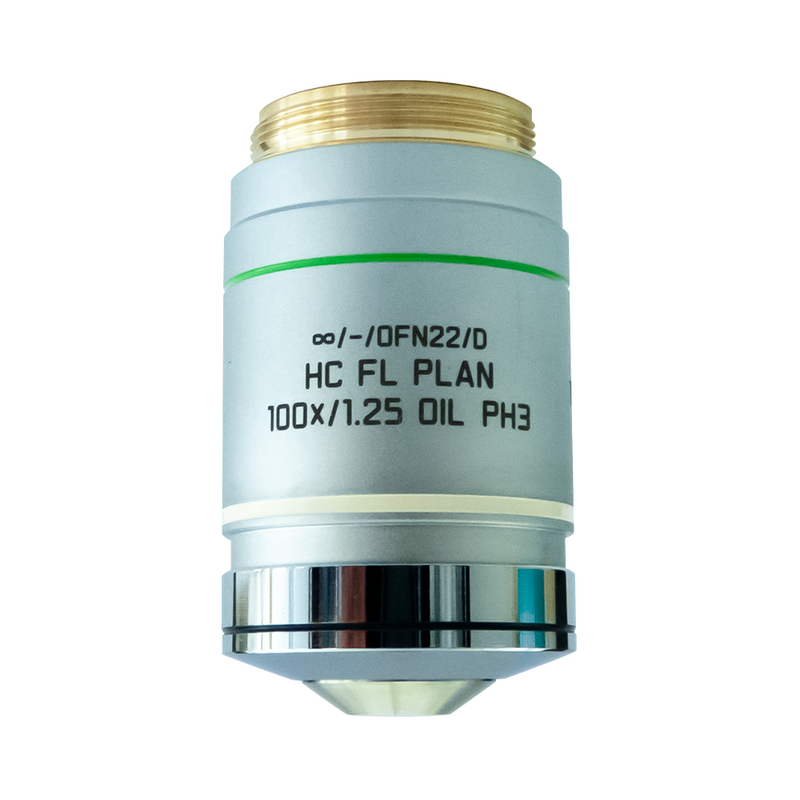

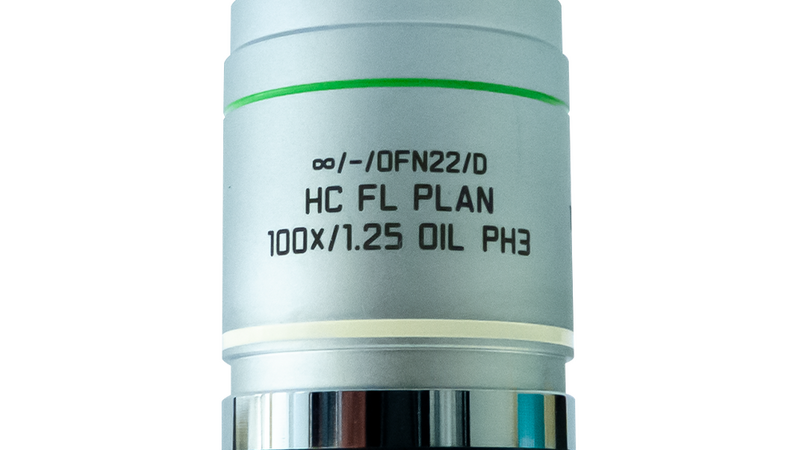

Microscope Objective HC FL PLAN 100x/1,25 OIL PH3

<p>Objective HC FL PLAN 100x/1,25 OIL PH3 has a magnification of 100X and a numerical aperture of 1.25mm. For use in oil immersion material environment and attached with an objective thread of M25 having a free working distance of 0.13mm and a FN of 25.</p>

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
HC FL PLAN 100x/1,25 OIL PH3
HC FL PLAN 100x/1,25 OIL PH3
HC FL PLAN 100x/1,25 OIL PH3
HC FL PLAN 100x/1,25 OIL PH3
HC FL PLAN 100x/1,25 OIL PH3
HC FL PLAN 100x/1,25 OIL PH3

Technical Specs

Article Number 11506313
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism D
Field Number (FN) 25
Free Working Distance (WD in mm) 0.13
Immersion Oil
Iris Diaphragm Without
Magnification 100⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-PH, FLUO
Numerical Aperture 1.25
Objective Thread M25
Objective Type FL PLAN
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques PH3

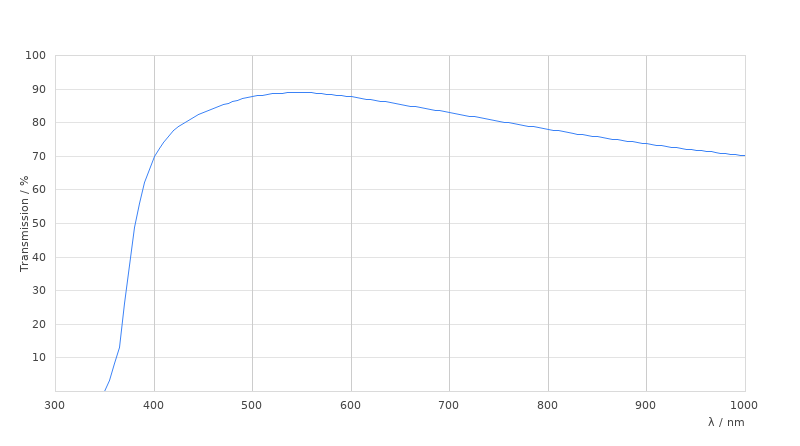

Transmission UV (365nm)
