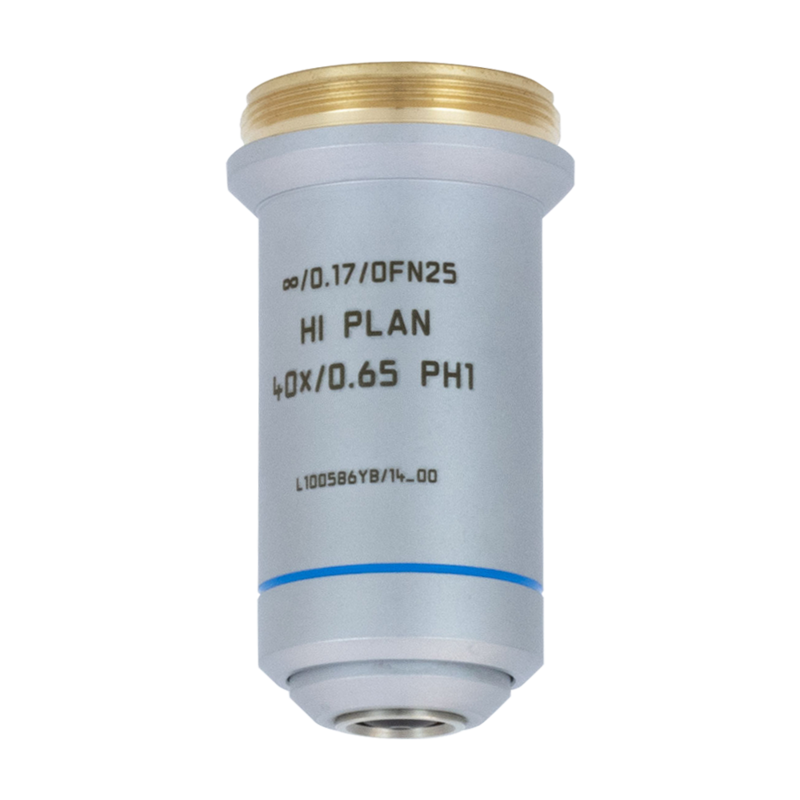

HI PLAN 40x/0,65 PH1

Article Number 11506315
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism -
Field Number (FN) 20
Free Working Distance (WD in mm) 0.36
Immersion Dry
Iris Diaphragm -1
Magnification 40⨉
Contrasting Methodes TL-BF, TL-PH, FLUO
Numerical Aperture 0.65
Objective Thread M25
Objective Type HI PLAN
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques PH1
Transmission UV (365nm)

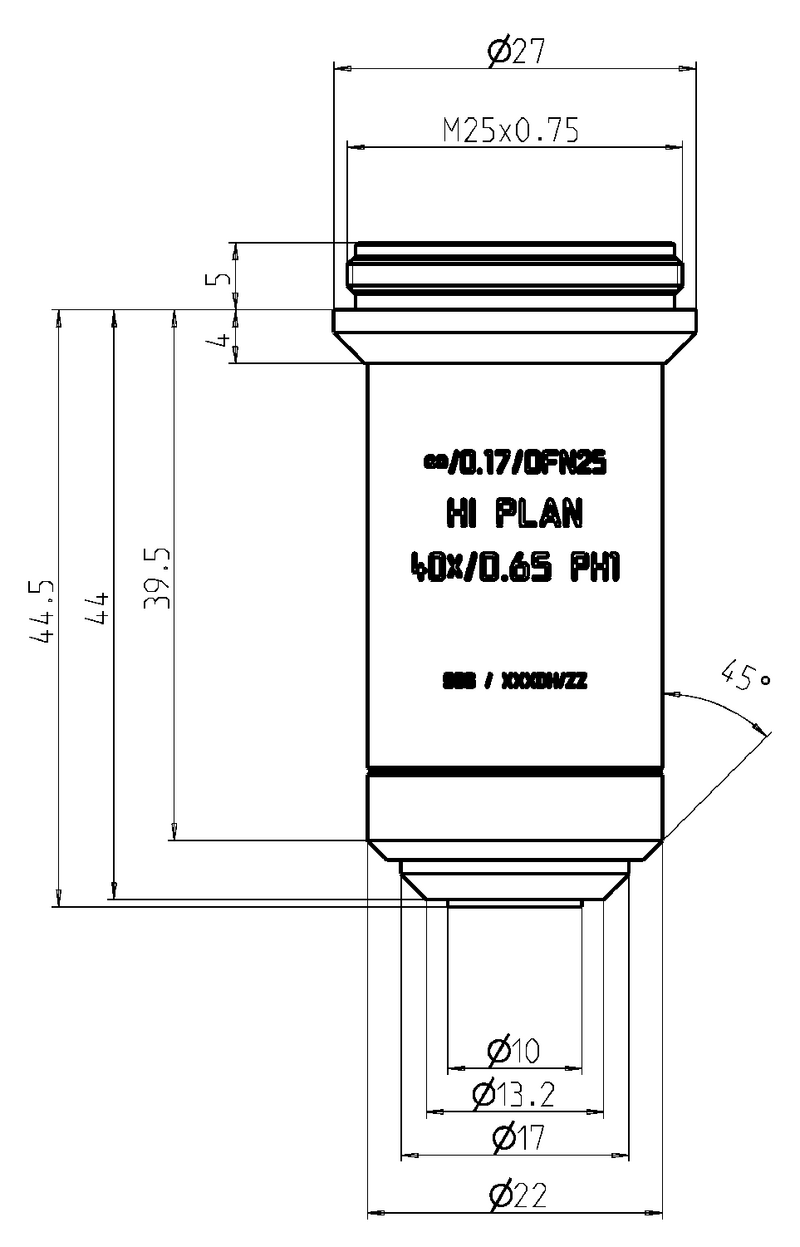

Figure

HI PLAN 40x/0,65 PH1
