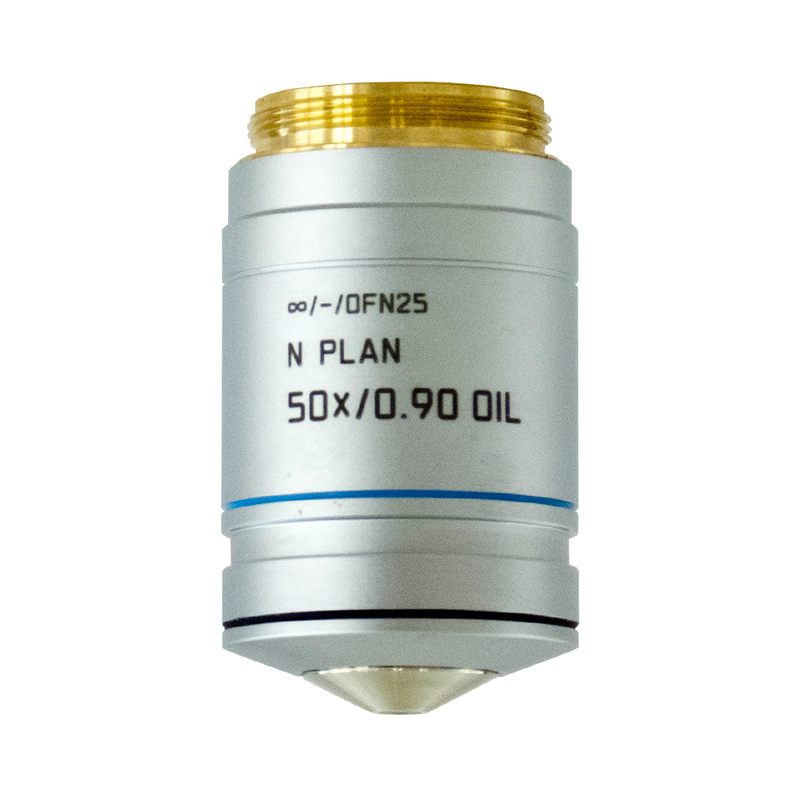

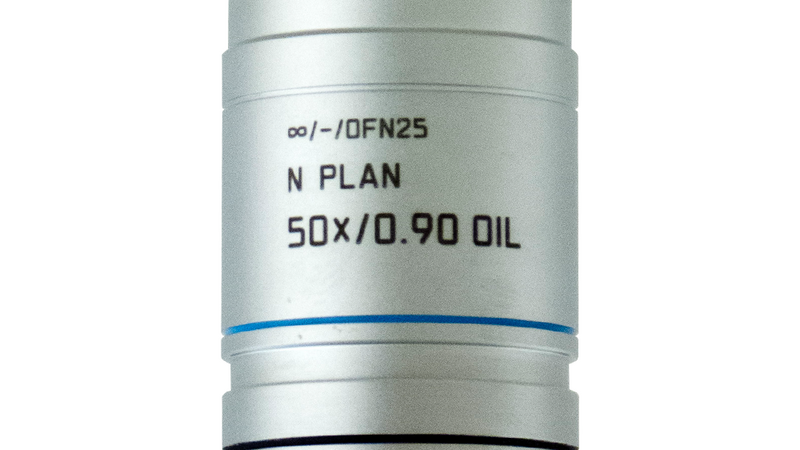

Microscope Objective N PLAN 50x/0,90 OIL

Objective N PLAN 50x/0,90 OIL has a magnification of 50X and a numerical aperture of 0.9mm. For use in oil immersion material environment and attached with an objective thread of M25 having a free working distance of 0.14mm and a FN of 22.

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
N PLAN 50x/0,90 OIL
N PLAN 50x/0,90 OIL
N PLAN 50x/0,90 OIL
N PLAN 50x/0,90 OIL

Technical Specs

Article Number 11506321
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 22
Free Working Distance (WD in mm) 0.14
Immersion Oil
Iris Diaphragm Without
Magnification 50⨉
Contrasting Methodes TL-BF, TL-P, FLUO
Numerical Aperture 0.9
Objective Thread M25
Objective Type N PLAN
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques

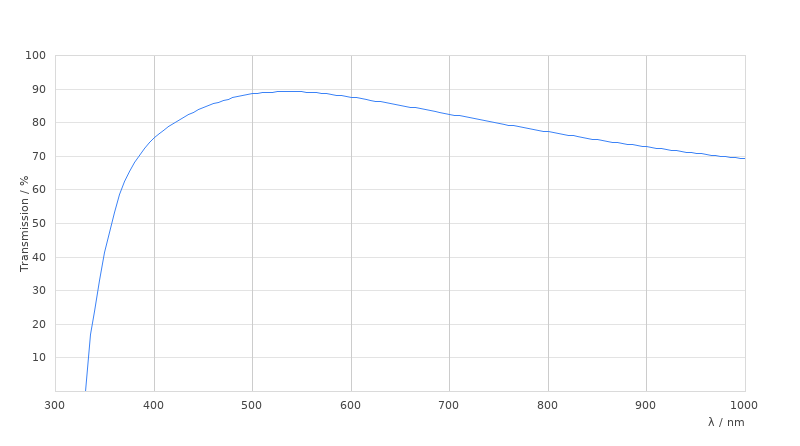

Transmission UV (365nm)
