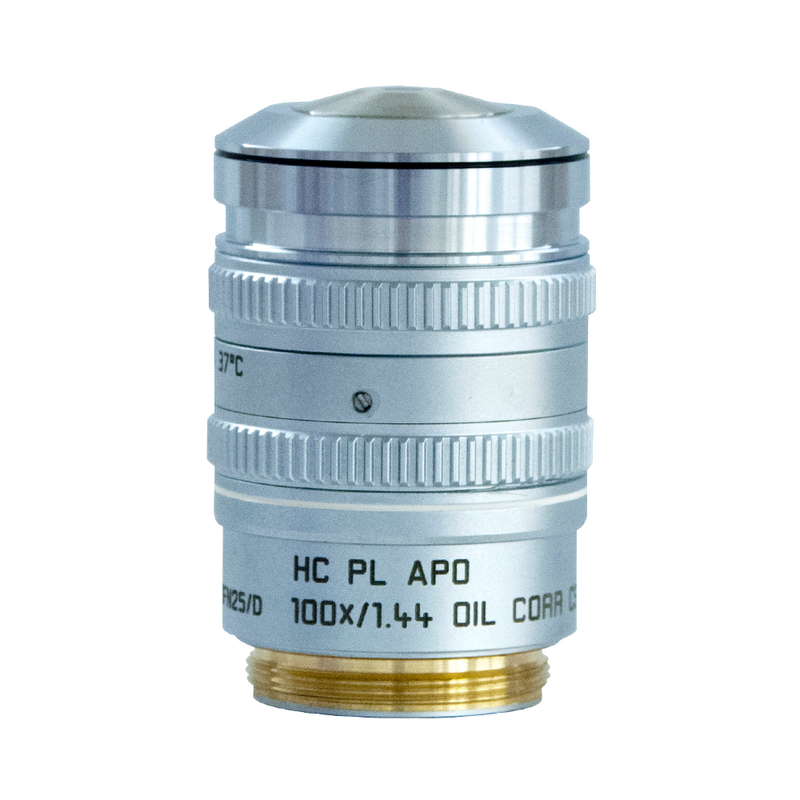

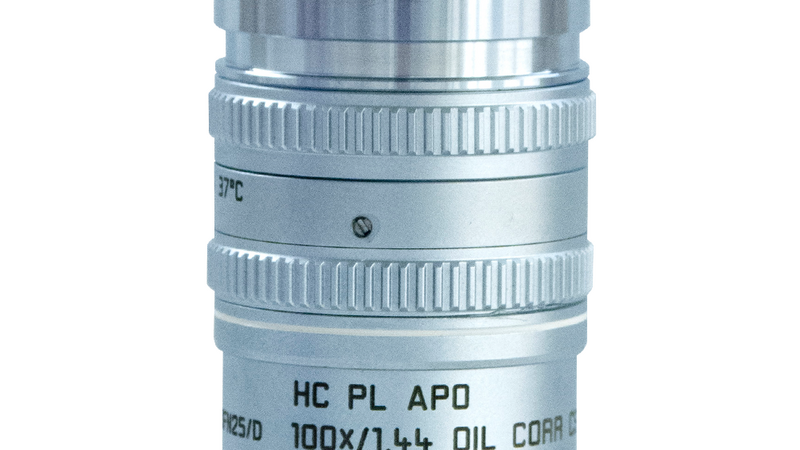

HC PL APO 100x/1,44 Oil CORR CS

Article Number 11506325
Correction Ring (CORR) CORR
Coverglass With
Exit Pupil Position/DIC prism D
Field Number (FN) 25
Free Working Distance (WD in mm) 0.10
Immersion Oil
Iris Diaphragm Without
Magnification 100⨉
Contrasting Methodes TL-BF, TL-DIC, FLUO
Numerical Aperture 1.44
Objective Thread M25
Objective Type PLAN APO
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques
Transmission UV (340nm)

Figure

HC PL APO 100x/1,44 Oil CORR CS

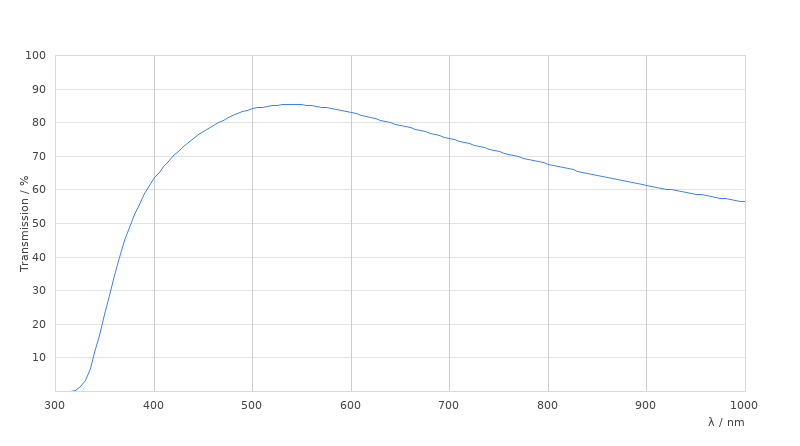

Transmission Curve

HC PL APO 100x/1,44 Oil CORR CS
