Microscope Objective HC PL APO 86x/1,20 W motCORR STED white

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.

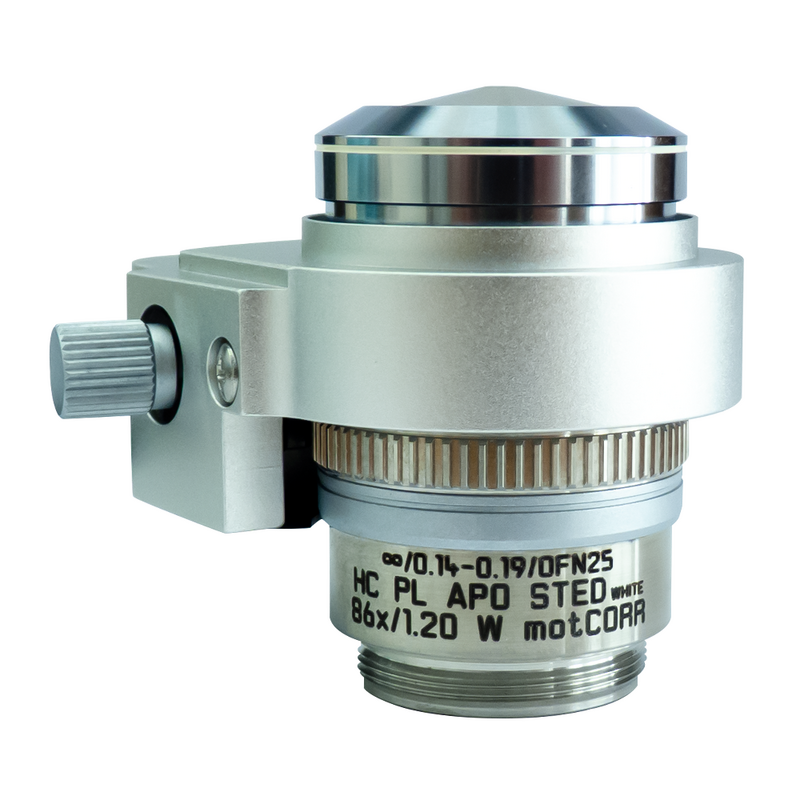

HC PL APO 86x/1,20 W motCORR STED white
HC PL APO 86x/1,20 W motCORR STED white
HC PL APO 86x/1,20 W motCORR STED white
HC PL APO 86x/1,20 W motCORR STED white
HC PL APO 86x/1,20 W motCORR STED white
HC PL APO 86x/1,20 W motCORR STED white

Technical Specs

Article Number 11506333
Correction Ring (CORR) motCORR
Coverglass With
Exit Pupil Position/DIC prism -
Field Number (FN) 25
Free Working Distance (WD in mm) 0.3
Immersion Water
Iris Diaphragm Without
Magnification 86⨉
Contrasting Methodes TL-BF, FLUO
Numerical Aperture 1.2
Objective Thread M25
Objective Type PLAN APO
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques CS2, MotCorr, MP, STED, Waterdispenser

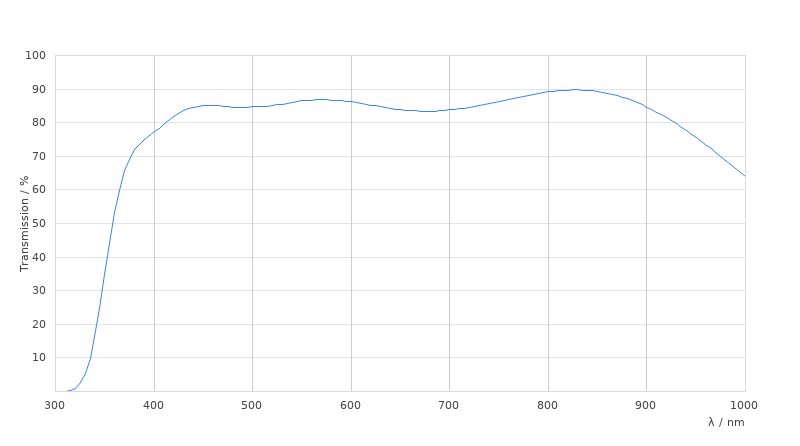

Transmission UV (340nm)
