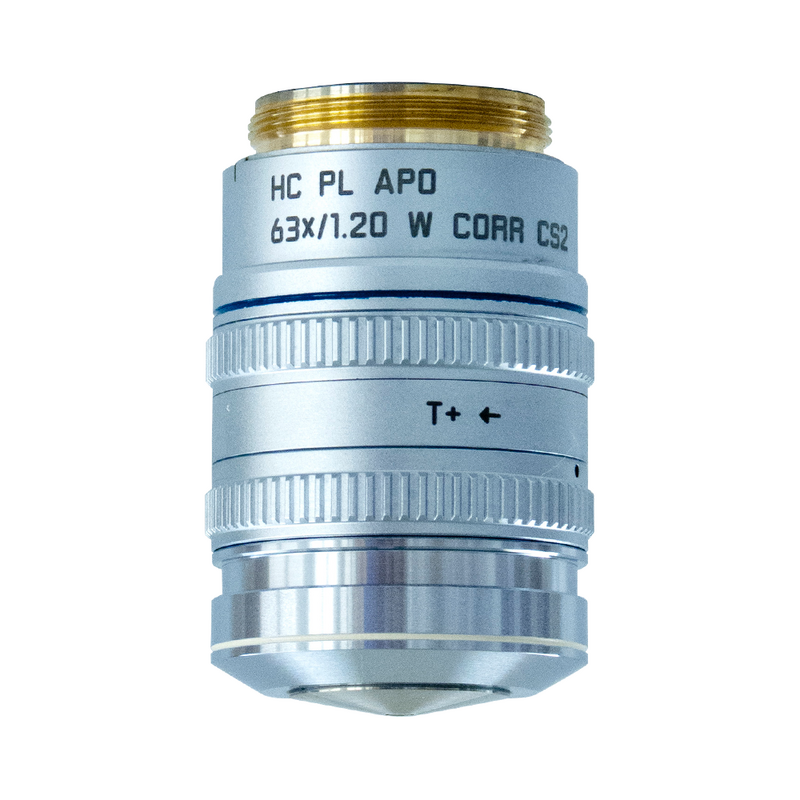

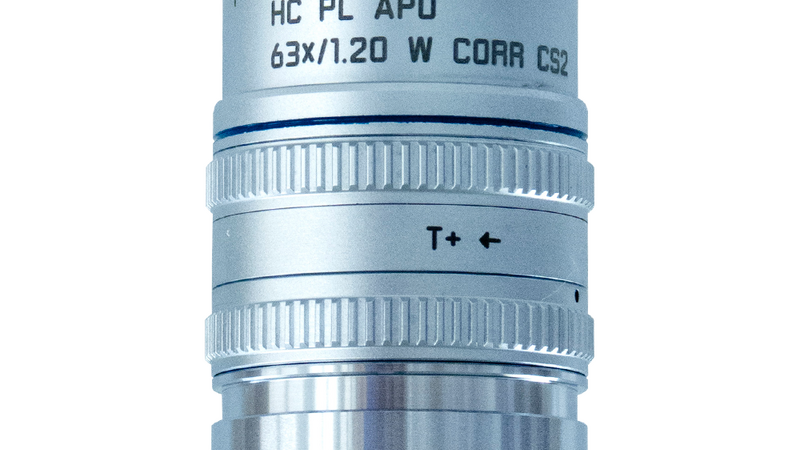

HC PL APO 63x/1,20 W CORR CS2

Article Number 11506356
Correction Ring (CORR) CORR
Coverglass Without
Exit Pupil Position/DIC prism E
Field Number (FN) 25
Free Working Distance (WD in mm) 0.30
Immersion Water
Iris Diaphragm Without
Magnification 63⨉
Contrasting Methodes TL-BF, TL-DIC, FLUO
Numerical Aperture 1.2
Objective Thread M25
Objective Type PLAN APO
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques CS2, Waterdispenser
Transmission UV (365nm)

Figure

HC PL APO 63x/1,20 W CORR CS2

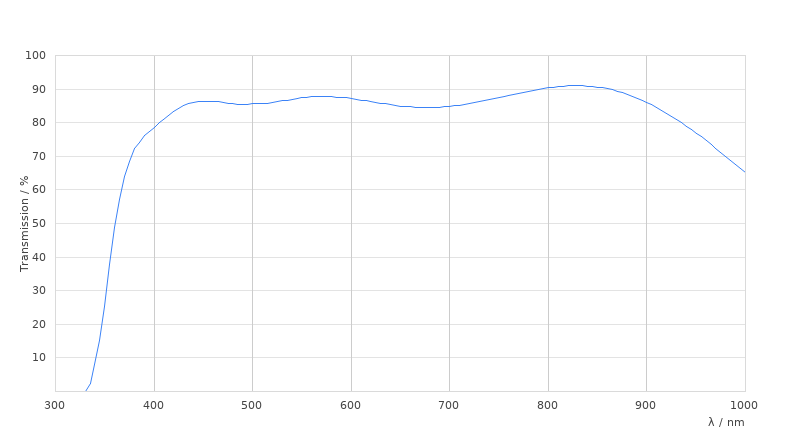

Transmission Curve

HC PL APO 63x/1,20 W CORR CS2

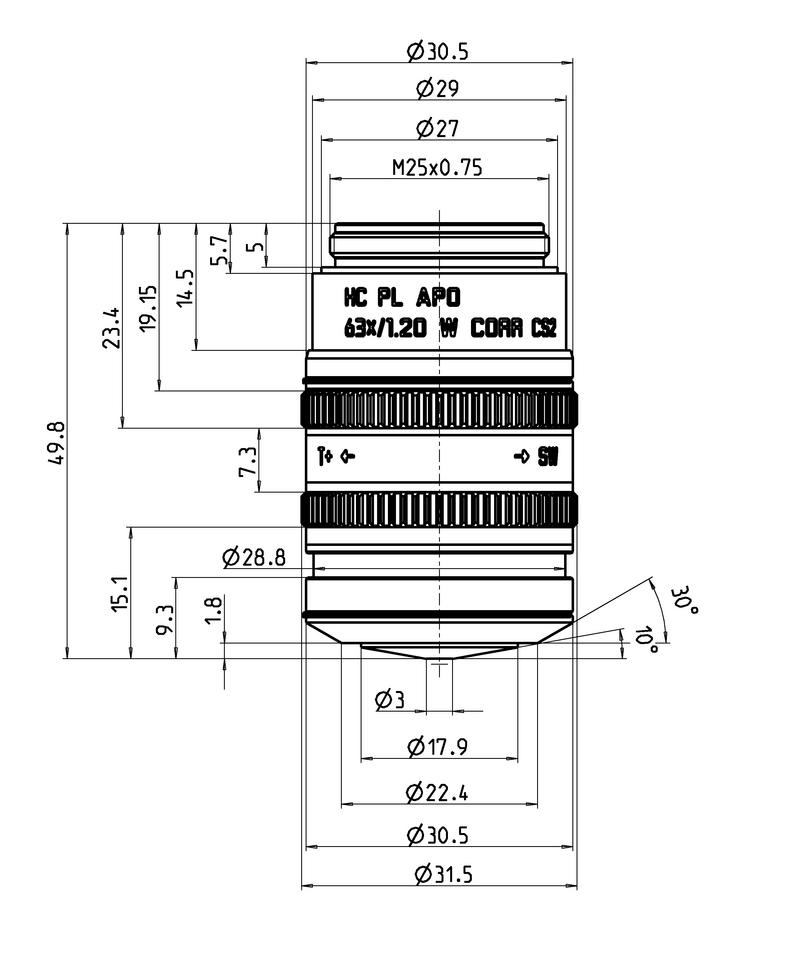

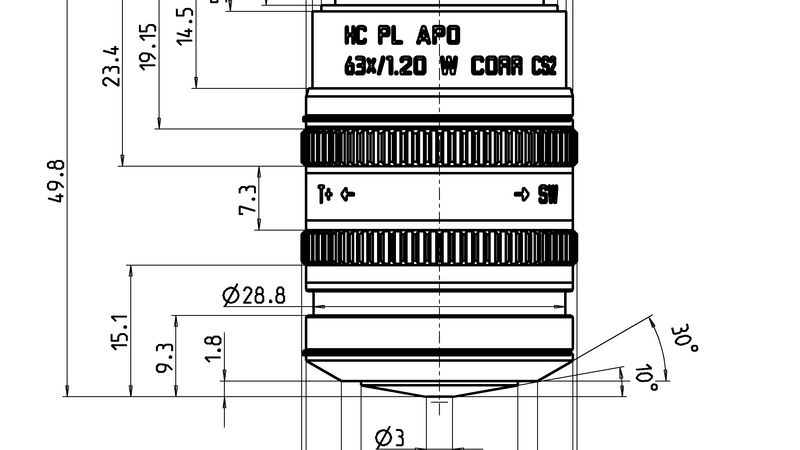

Dimension Sheet

HC PL APO 63x/1,20 W CORR CS2
