HC PL APO 63x/1,20 W motCORR CS2

Article Number 11506361
Correction Ring (CORR) motCORR
Coverglass With
Exit Pupil Position/DIC prism E
Field Number (FN) 25
Free Working Distance (WD in mm) 0.30
Immersion Water
Iris Diaphragm Without
Magnification 63⨉
Contrasting Methodes TL-BF, TL-DIC, FLUO
Numerical Aperture 1.2
Objective Thread M25
Objective Type PLAN APO
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques CS2, MotCorr, Waterdispenser
Transmission UV (365nm)

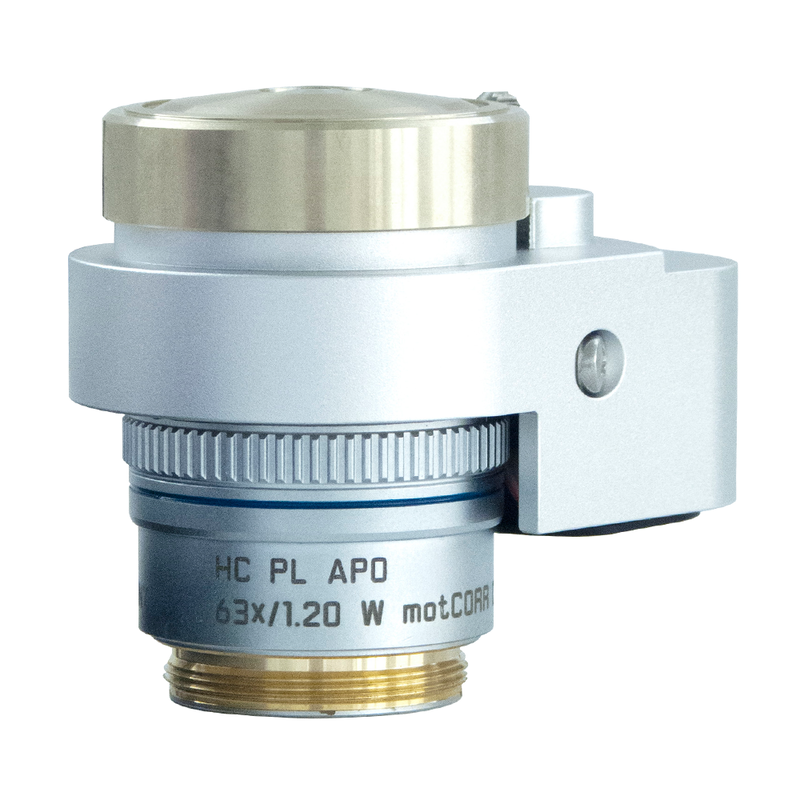

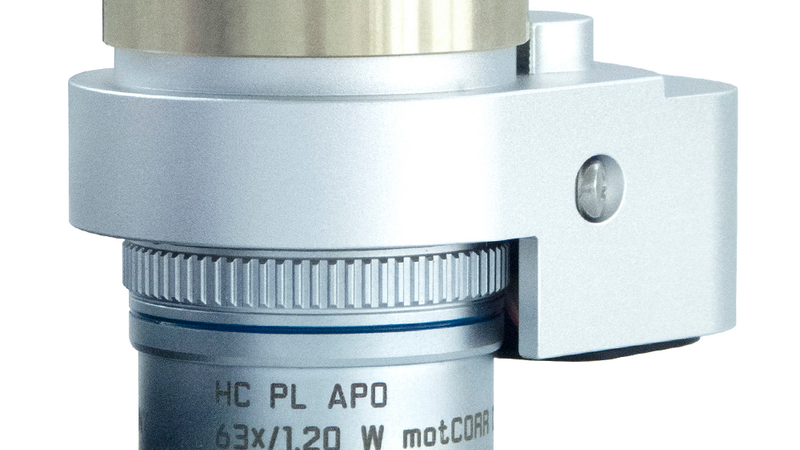

FigureHC PL APO 63x/1,20 W motCORR CS2

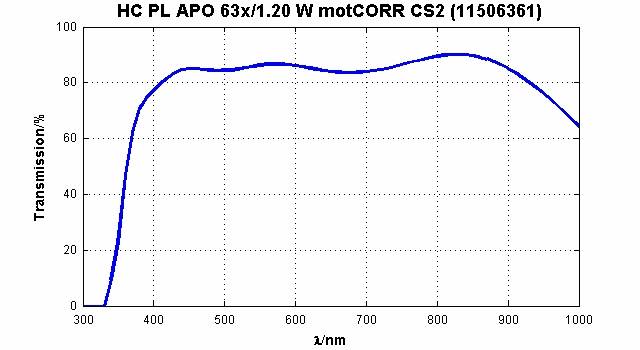

Transmission CurveHC PL APO 63x/1,20 W motCORR CS2

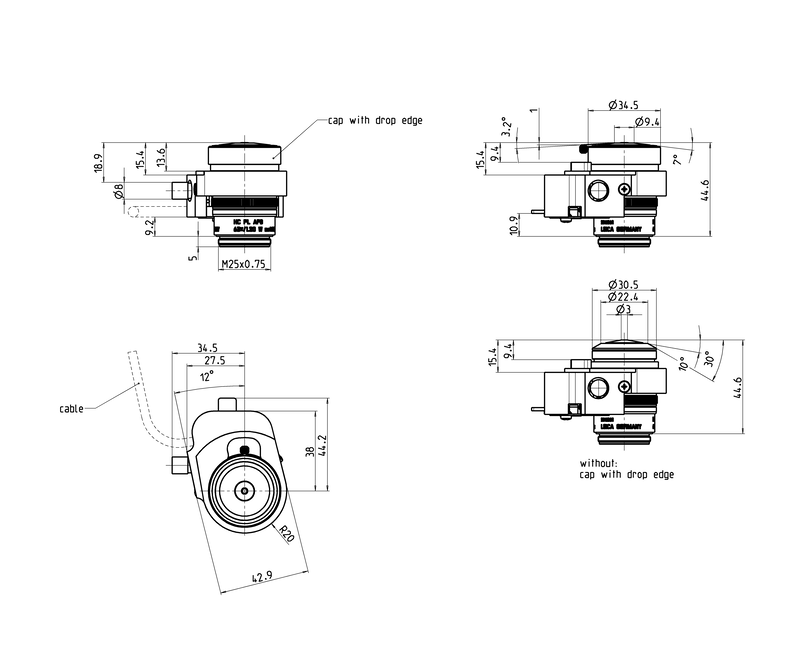

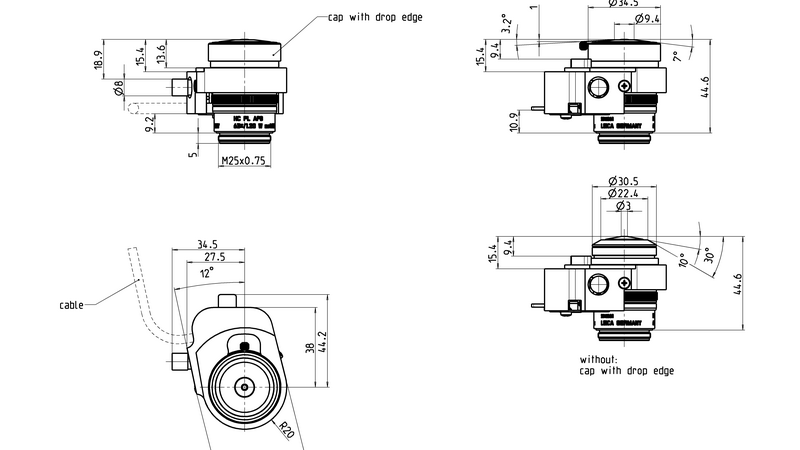

Dimension SheetHC PL APO 63x/1,20 W motCORR CS2
