HC PL FLUOTAR (340) 40x/1,30 OIL

Article Number 11506365
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism E
Field Number (FN) 22
Free Working Distance (WD in mm) 0.15
Immersion Oil
Iris Diaphragm Without
Magnification 40⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, FLUO
Numerical Aperture 1.3
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques Fura
Transmission UV (340nm)

Figure

HC PL FLUOTAR (340) 40x/1,30 OIL

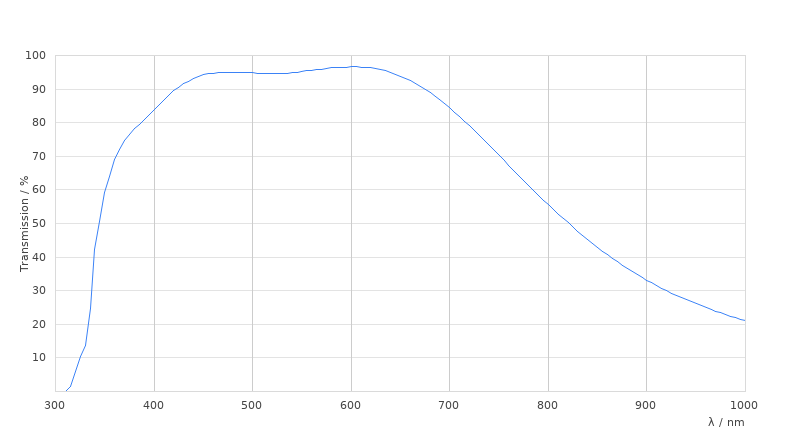

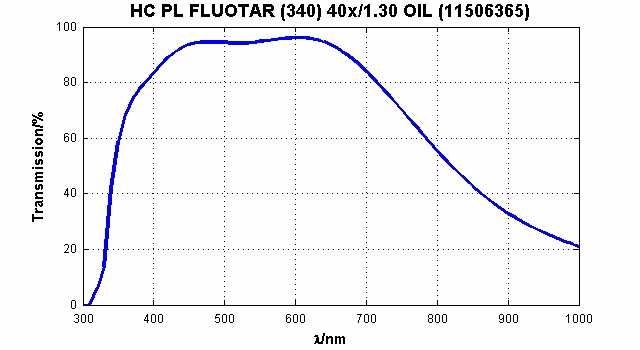

Transmission Curve

HC PL FLUOTAR (340) 40x/1,30 OIL

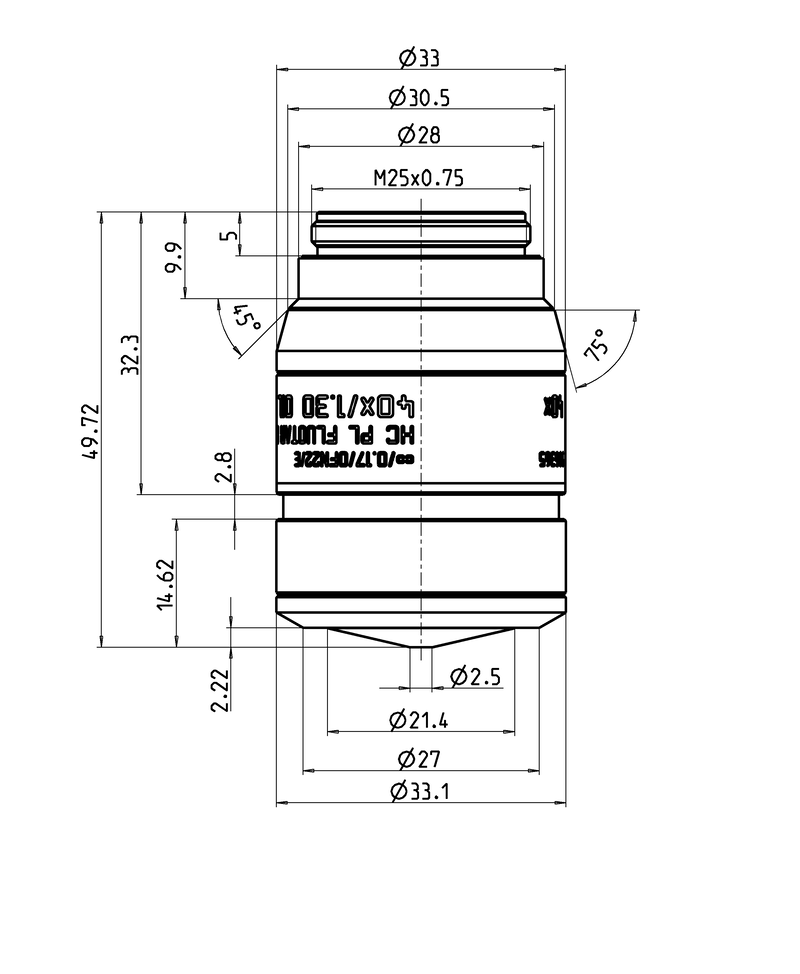

Dimension Sheet

HC PL FLUOTAR (340) 40x/1,30 OIL
