Microscope Objective HC FLUOTAR (340) 100x/1,30 OIL

Objective HC FLUOTAR (340) 100x/1,30 OIL has a magnification of 100X and a numerical aperture of 1.3mm. For use in oil immersion material environment and attached with an objective thread of M25 having a free working distance of 0.14mm and a FN of 12.

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
HC FLUOTAR (340) 100x/1,30 OIL
HC FLUOTAR (340) 100x/1,30 OIL
HC FLUOTAR (340) 100x/1,30 OIL
HC FLUOTAR (340) 100x/1,30 OIL
HC FLUOTAR (340) 100x/1,30 OIL
HC FLUOTAR (340) 100x/1,30 OIL

Technical Specs

Article Number 11506368
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism D
Field Number (FN) 12
Free Working Distance (WD in mm) 0.14
Immersion Oil
Iris Diaphragm Without
Magnification 100⨉
Contrasting Methodes TL-BF, TL-DIC, FLUO
Numerical Aperture 1.3
Objective Thread M25
Objective Type HC FLUOTAR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques Fura, LMD

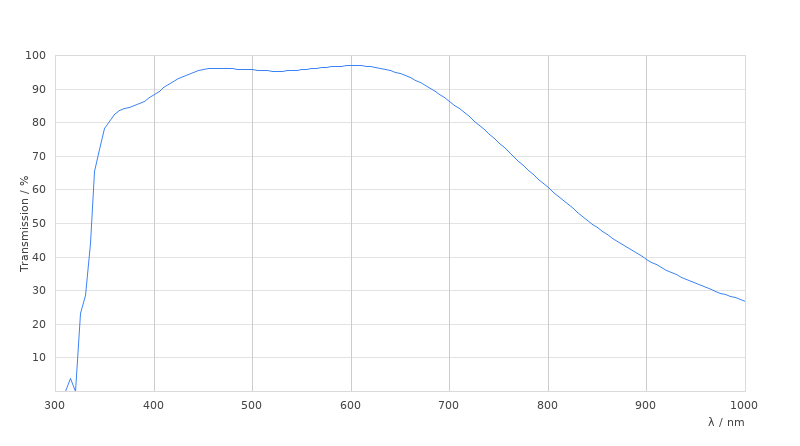

Transmission UV (340nm)
