| Article Number | 11506375 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | With |
| Exit Pupil Position/DIC prism | D |
| Field Number (FN) | 18 |
| Free Working Distance (WD in mm) | 2.4 |
| Immersion | Water |
| Iris Diaphragm | Without |
| Magnification | 25⨉ |
| Contrasting Methodes | TL-BF, TL-DIC, FLUO |
| Numerical Aperture | 0.95 |
| Objective Thread | M25 |
| Objective Type | HC FLUOTAR L VISIR |
| Spring Loaded | No |
| Suitable for AFC (Adaptive Focus Control) | AFC suitable |
| Techniques | MP, Waterdispenser |
| Transmission | IR (up to 1300nm) |
Figure

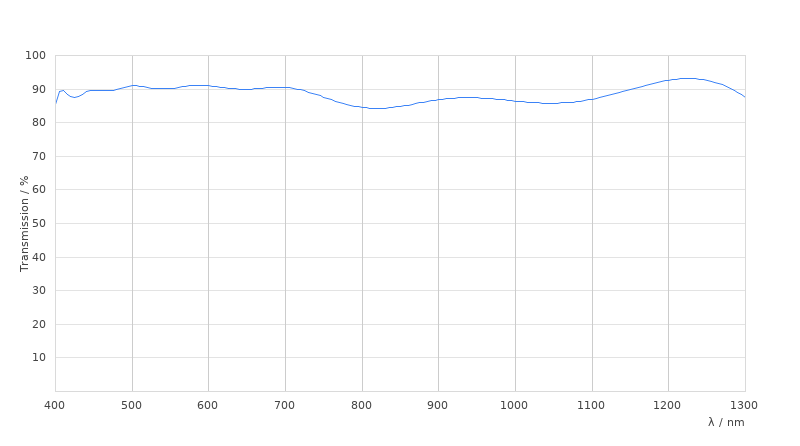

Transmission Curve
Dimension Sheet
