| Article Number | 11506379 |
|---|---|
| Correction Ring (CORR) | CORR |
| Coverglass | With & without |
| Exit Pupil Position/DIC prism | B |
| Field of View (FOV in mm) | 25 |
| Free Working Distance (WD in mm) | 1.1 |
| Immersion | Dry |
| Iris Diaphragm | Without |
| Magnification | 100⨉ |
| Contrasting Methodes | TL-BF, TL-DIC, TL-P, FLUO |
| Numerical Aperture | 0.85 |
| Objective Thread | M25 |
| Objective Type | PL FLUOTAR |
| Spring Loaded | No |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | |
| Transmission | - |
Figure

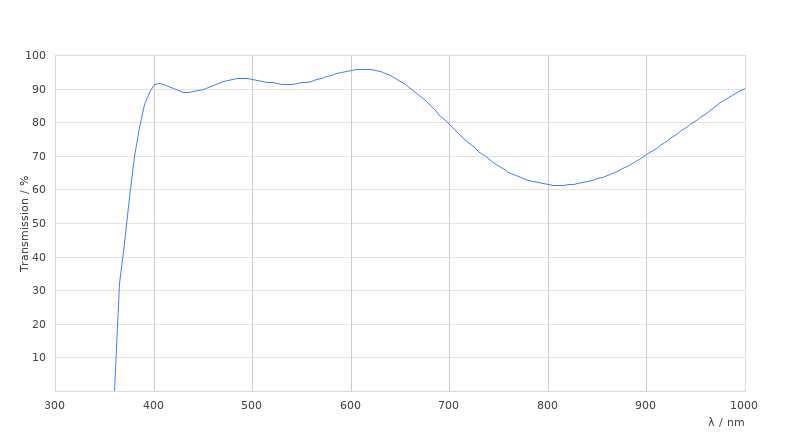

Transmission Curve
Dimension Sheet
