HC PL APO 63x/1,30 GLYC CORR

Article Number 11506398
Correction Ring (CORR) CORR
Coverglass With
Exit Pupil Position/DIC prism D
Field Number (FN) 25
Free Working Distance (WD in mm) 0.30
Immersion GLYC
Iris Diaphragm Without
Magnification 63⨉
Contrasting Methodes TL-BF, TL-DIC, FLUO
Numerical Aperture 1.3
Objective Thread M25
Objective Type PLAN APO
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques
Transmission UV (365nm)

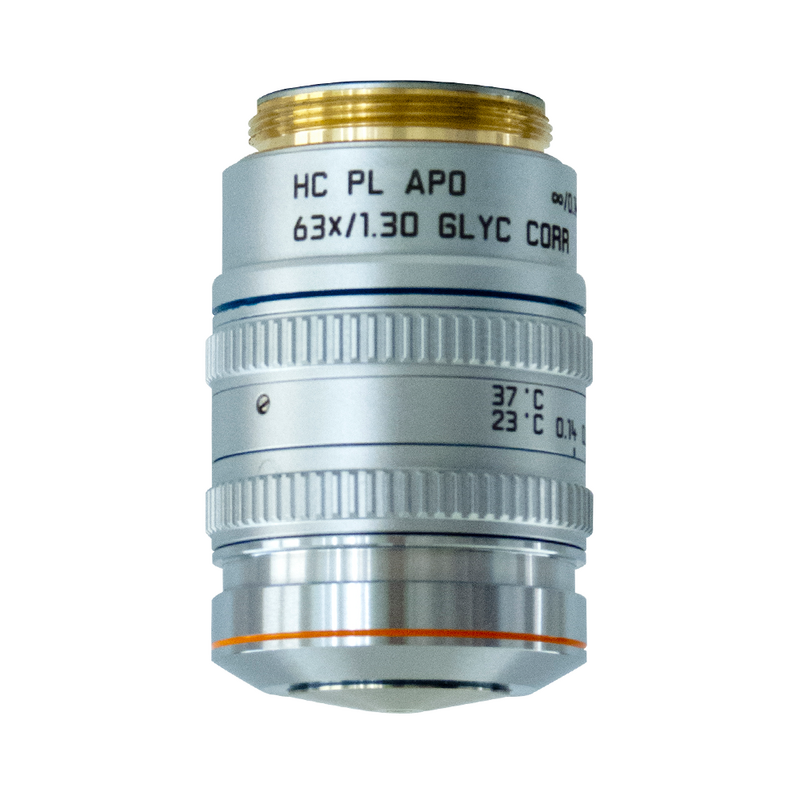

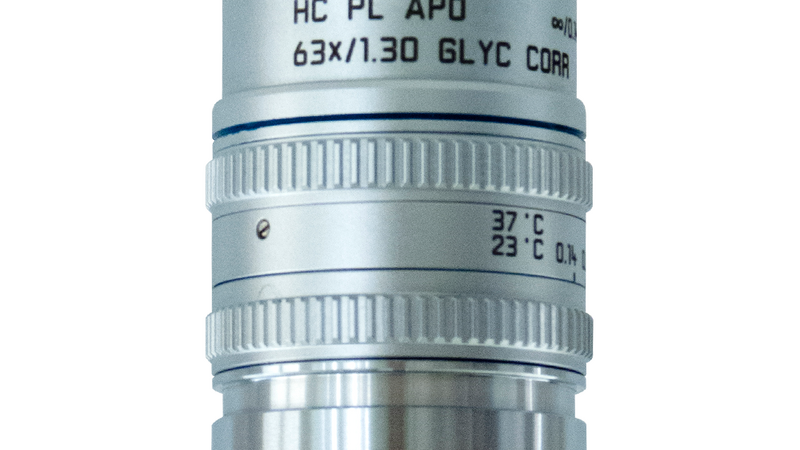

Figure

HC PL APO 63x/1,30 GLYC CORR

Transmission Curve

HC PL APO 63x/1,30 GLYC CORR

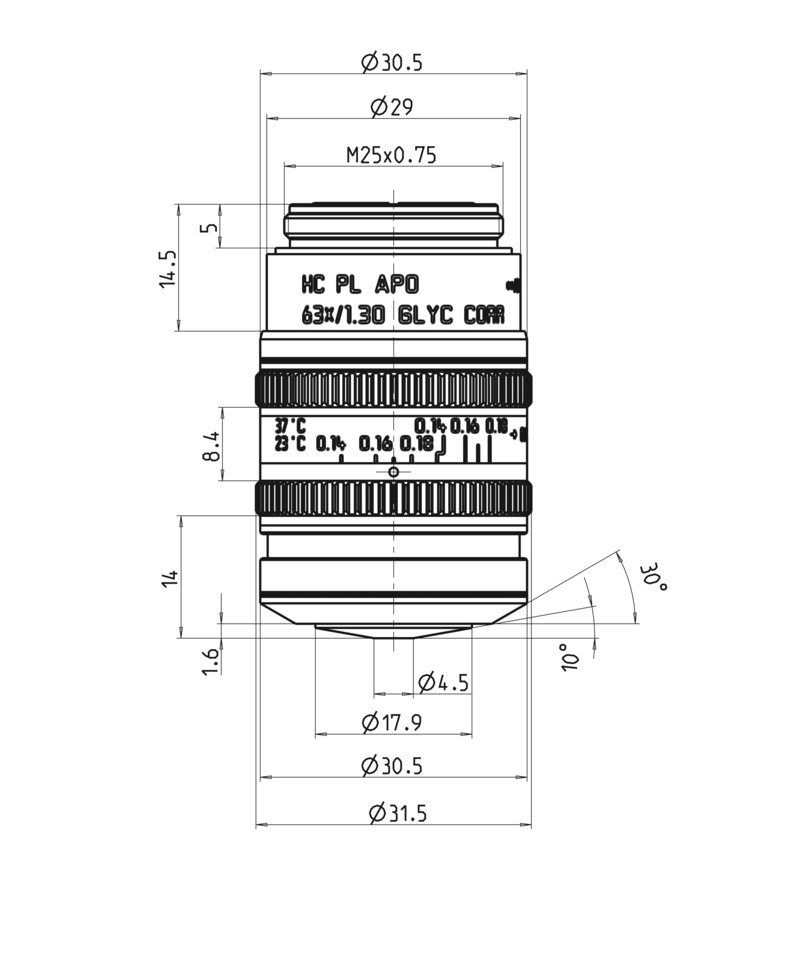

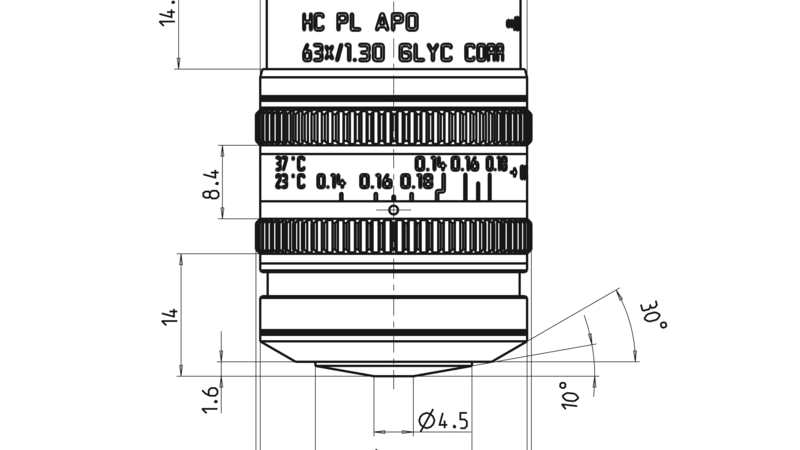

Dimension Sheet

HC PL APO 63x/1,30 GLYC CORR
