| Article Number | 11506412 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | With & without |
| Exit Pupil Position/DIC prism | - |
| Field of View (FOV in mm) | 25 |
| Free Working Distance (WD in mm) | 17 |
| Immersion | Dry |
| Iris Diaphragm | Without |
| Magnification | 4⨉ |
| Contrasting Methodes | TL-BF, TL-P, TL-DF, FLUO |
| Numerical Aperture | 0.13 |
| Objective Thread | M25 |
| Objective Type | PL FLUOTAR |
| Spring Loaded | No |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | LightSheetIllumination |
| Transmission | UV (340nm) |
Figure

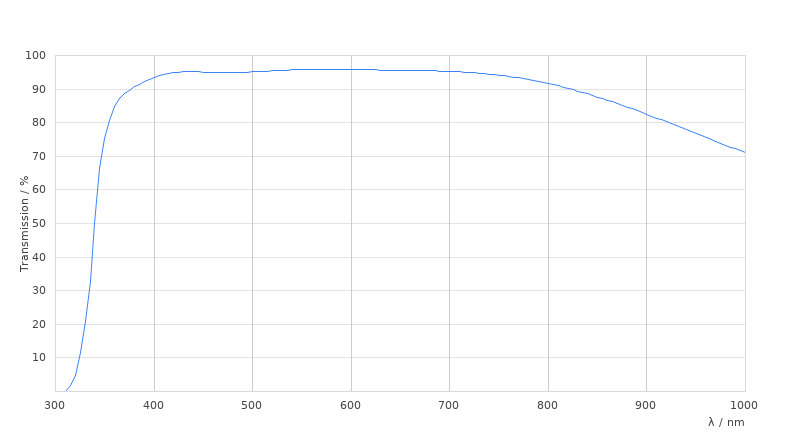

Transmission Curve
Dimension Sheet
