HC PL FLUOTAR 4x/0,13 PH0

Article Number 11506413
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 25
Free Working Distance (WD in mm) 17
Immersion Dry
Iris Diaphragm Without
Magnification 4⨉
Contrasting Methodes TL-BF, TL-P, TL-DF, TL-PH, FLUO
Numerical Aperture 0.13
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques PH0
Transmission UV (340nm)

Figure

HC PL FLUOTAR 4x/0,13 PH0

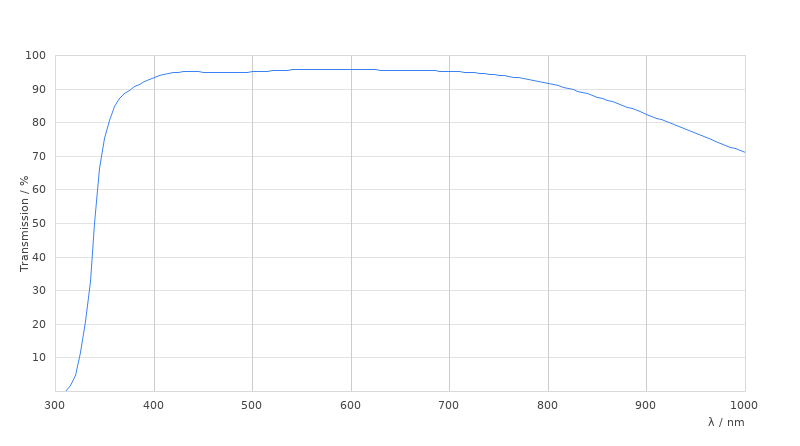

Transmission Curve

HC PL FLUOTAR 4x/0,13 PH0

Dimension Sheet

HC PL FLUOTAR 4x/0,13 PH0
