| Article Number | 11506414 |
|---|---|
| Correction Ring (CORR) | CORR |
| Coverglass | With |
| Exit Pupil Position/DIC prism | C |
| Field of View (FOV in mm) | 25 |
| Free Working Distance (WD in mm) | 0.17 |
| Immersion | Dry |
| Iris Diaphragm | Without |
| Magnification | 40⨉ |
| Contrasting Methodes | TL-BF, TL-DIC, FLUO |
| Numerical Aperture | 0.95 |
| Objective Thread | M25 |
| Objective Type | PLAN APO |
| Spring Loaded | Yes |
| Suitable for AFC (Adaptive Focus Control) | AFC suitable |
| Techniques | |
| Transmission | UV (365nm) |
Figure

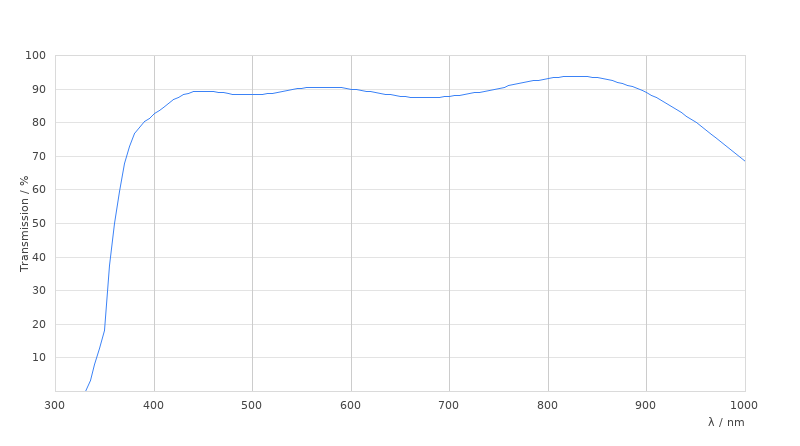

Transmission Curve
Dimension Sheet
