HC PL APO 93x/1,30 GLYC motCORR STED WHITE

Article Number 11506417
Correction Ring (CORR) motCORR
Coverglass With
Exit Pupil Position/DIC prism -
Field Number (FN) 25
Free Working Distance (WD in mm) 0.3
Immersion GLYC
Iris Diaphragm Without
Magnification 93⨉
Contrasting Methodes TL-BF, TL-DIC, FLUO
Numerical Aperture 1.3
Objective Thread M25
Objective Type PLAN APO
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques CS2, MotCorr, STED
Transmission UV (340nm)

Figure

HC PL APO 93x/1,30 GLYC motCORR STED WHITE

Transmission Curve

HC PL APO 93x/1,30 GLYC motCORR STED WHITE

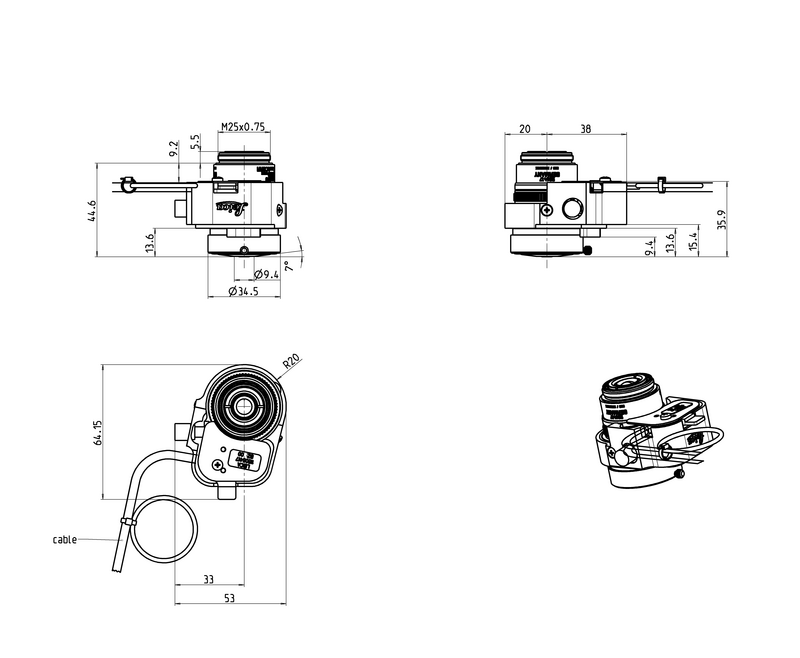

Dimension Sheet

HC PL APO 93x/1,30 GLYC motCORR STED WHITE
