HC PL FLUOTAR 63x/1.10 IMM CORR

Article Number 11506419
Correction Ring (CORR) CORR
Coverglass With
Exit Pupil Position/DIC prism E
Field of View (FOV in mm) 25
Free Working Distance (WD in mm) 0.35
Immersion IMM
Iris Diaphragm Without
Magnification 63⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, FLUO
Numerical Aperture 1.1
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques
Transmission UV (340nm)
FigureHC PL FLUOTAR 63x/1.10 IMM CORR

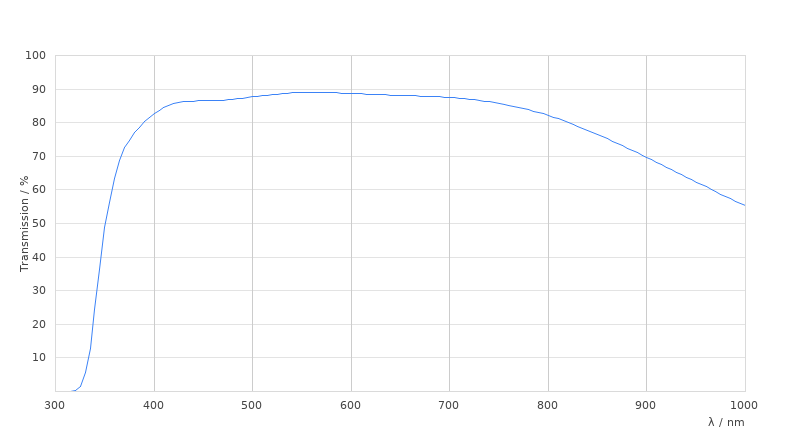

Transmission CurveHC PL FLUOTAR 63x/1.10 IMM CORR
Dimension SheetHC PL FLUOTAR 63x/1.10 IMM CORR
