Microscope Objective HC PL APO 20x/0,75 CS2

<p>Objective HC PL APO 20x/0,75 CS2 has a magnification of 20X and a numerical aperture of 0.75mm. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 0.62mm and a FN of 25.</p>

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
HC PL APO 20x/0,75 CS2
HC PL APO 20x/0,75 CS2
HC PL APO 20x/0,75 CS2
HC PL APO 20x/0,75 CS2
HC PL APO 20x/0,75 CS2
HC PL APO 20x/0,75 CS2

Technical Specs

Article Number 11506517
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism C
Field Number (FN) 25
Free Working Distance (WD in mm) 0.62
Immersion Dry
Iris Diaphragm Without
Magnification 20⨉
Contrasting Methodes TL-BF, TL-DIC, TL-DF, TL-IMC, FLUO
Numerical Aperture 0.75
Objective Thread M25
Objective Type PLAN APO
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques CS2

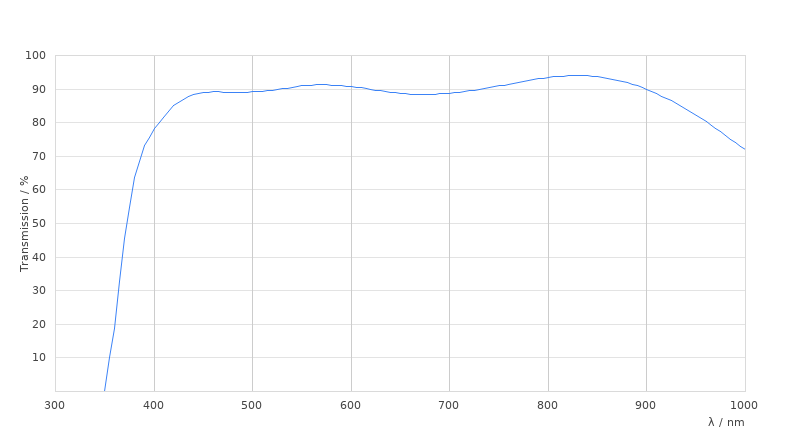

Transmission UV (365nm)
