Microscope Objective HC FLUOTAR L 16x/0,60 IMM CORR VISIR

Objective HC FLUOTAR L 16x/0,60 IMM CORR VISIR has a magnification of 16X and a numerical aperture of 0.6mm. For use in immersive incl BABB immersion material environment and attached with an objective thread of M25 having a free working distance of 2.50mm and a FN of 20.

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
HC FLUOTAR L 16x/0,60 IMM CORR VISIR
HC FLUOTAR L 16x/0,60 IMM CORR VISIR
HC FLUOTAR L 16x/0,60 IMM CORR VISIR
HC FLUOTAR L 16x/0,60 IMM CORR VISIR
HC FLUOTAR L 16x/0,60 IMM CORR VISIR
HC FLUOTAR L 16x/0,60 IMM CORR VISIR

Technical Specs

Article Number 11506533
Correction Ring (CORR) CORR
Coverglass With & without
Exit Pupil Position/DIC prism D
Field Number (FN) 20
Free Working Distance (WD in mm) 2.50
Immersion IMM incl BABB
Iris Diaphragm Without
Magnification 16⨉
Contrasting Methodes TL-BF, TL-DIC, FLUO
Numerical Aperture 0.6
Objective Thread M25
Objective Type HC FLUOTAR L VISIR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques MP

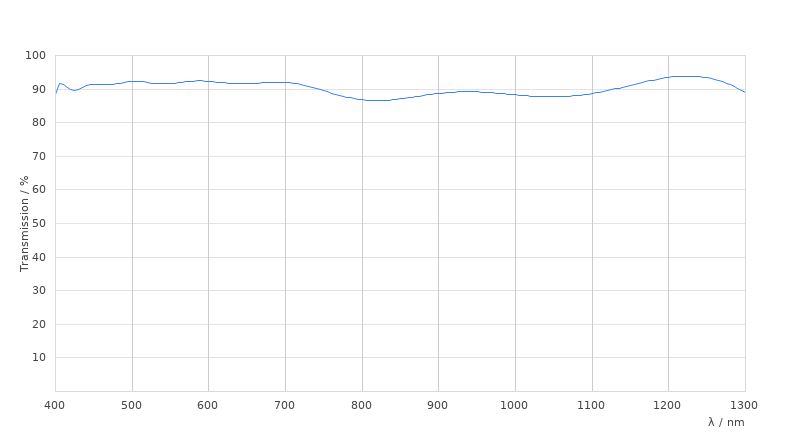

Transmission IR (up to 1300nm)
