HC FLUOTAR L 16x/0,60 IMM CORR DLS

Article Number 11506536
Correction Ring (CORR) CORR
Coverglass With & without
Exit Pupil Position/DIC prism D
Field Number (FN) 20
Free Working Distance (WD in mm) 2.50
Immersion IMM incl BABB
Iris Diaphragm Without
Magnification 16⨉
Contrasting Methodes TL-BF, FLUO
Numerical Aperture 0.6
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques LightSheet, MP
Transmission UV (365nm)

Figure

HC FLUOTAR L 16x/0,60 IMM CORR DLS

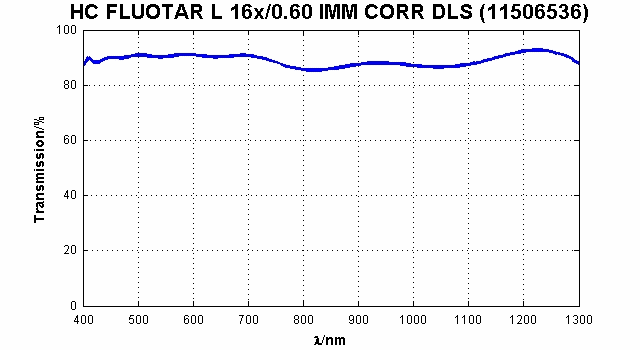

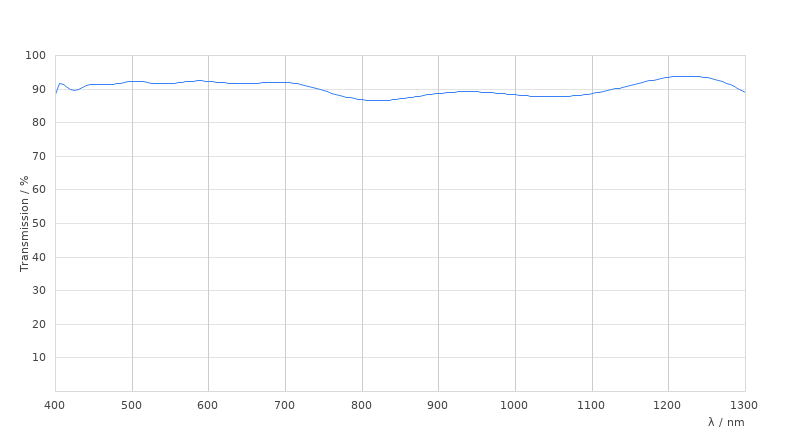

Transmission Curve

HC FLUOTAR L 16x/0,60 IMM CORR DLS

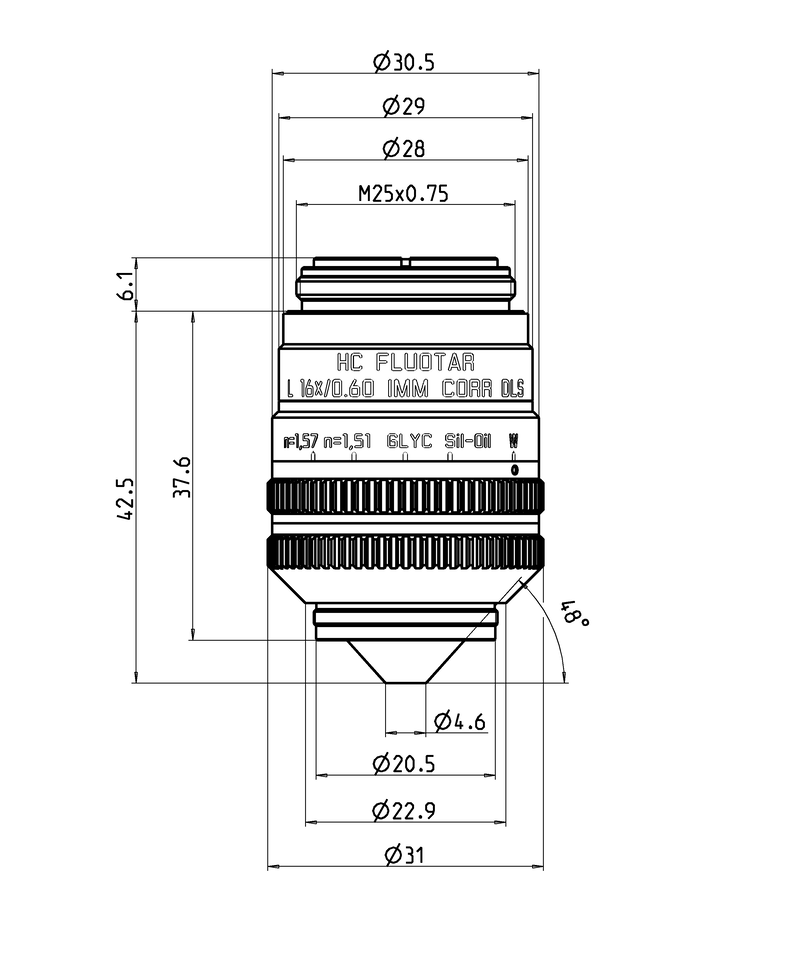

Dimension Sheet

HC FLUOTAR L 16x/0,60 IMM CORR DLS
