| Article Number | 11507702 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | Without |
| Exit Pupil Position/DIC prism | H |
| Field Number (FN) | 20 |
| Free Working Distance (WD in mm) | 1.95 |
| Immersion | IMM incl BABB |
| Iris Diaphragm | Without |
| Magnification | 20⨉ |
| Contrasting Methodes | TL-BF, TL-DIC, FLUO |
| Numerical Aperture | 0.95 |
| Objective Thread | M32 |
| Objective Type | APO |
| Spring Loaded | No |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | MP |
| Transmission | UV (365nm) |

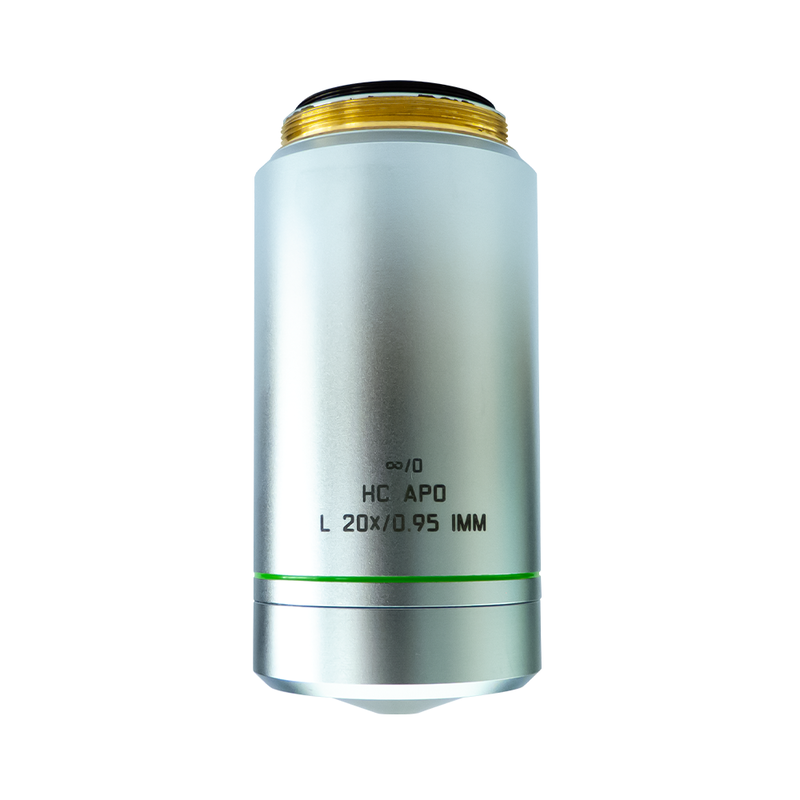

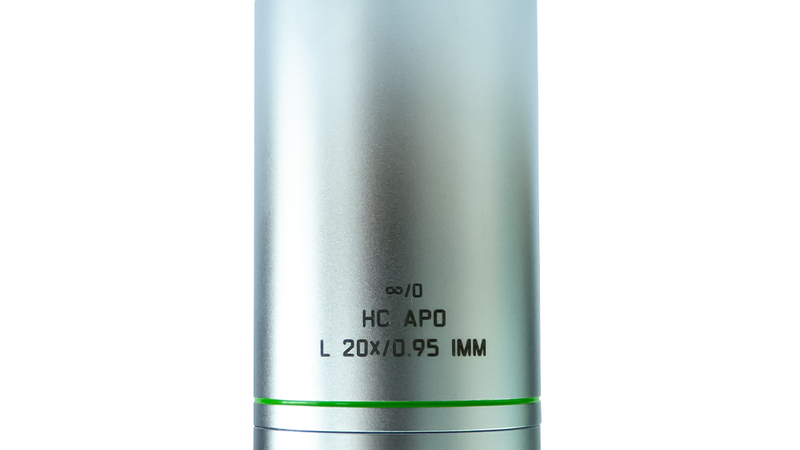

Figure

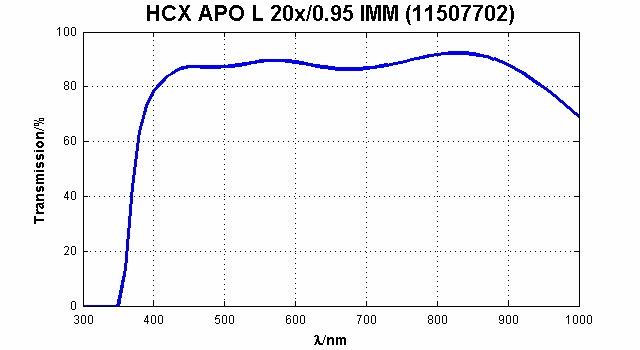

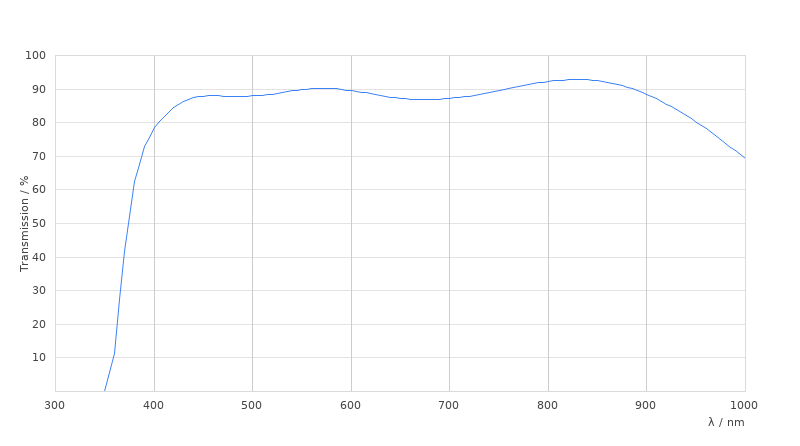

Transmission Curve

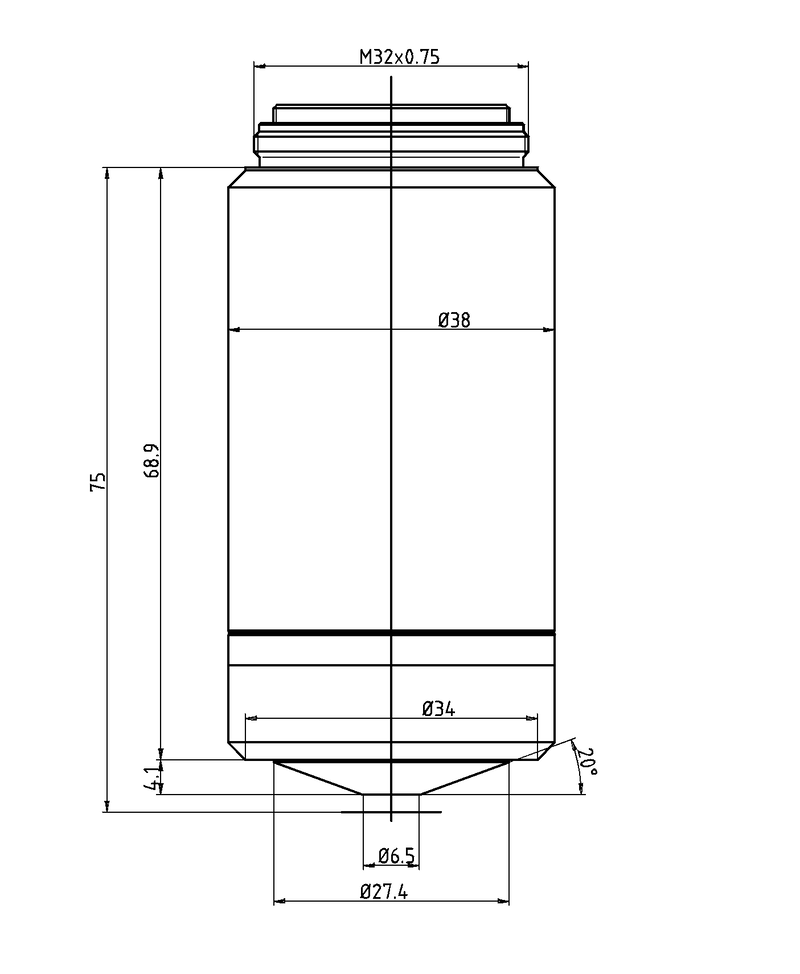

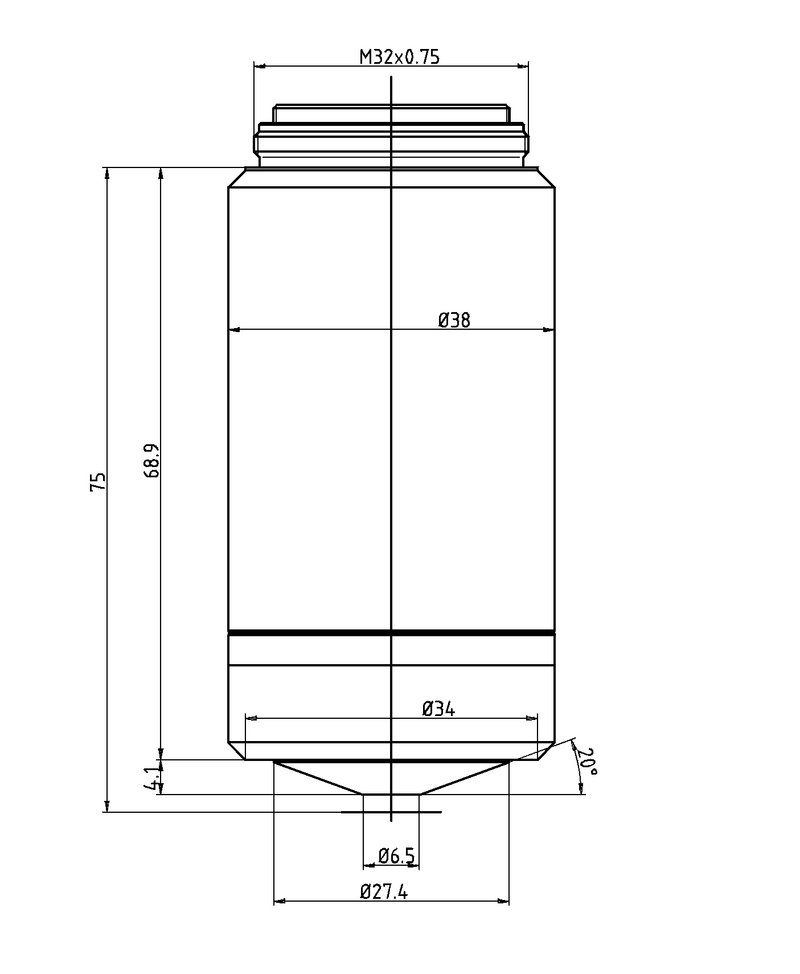

Dimension Sheet
