HC FLUOTAR L 25x/1,0 IMM (ne=1,457) motCORR VISIR

Article Number 11507703
Correction Ring (CORR) motCORR
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 20
Free Working Distance (WD in mm) 6
Immersion IMM
Iris Diaphragm Without
Magnification 25⨉
Contrasting Methodes TL-BF, FLUO
Numerical Aperture 1
Objective Thread M32
Objective Type HC FLUOTAR L VISIR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques MotCorr, MP
Transmission IR (up to 1300nm)

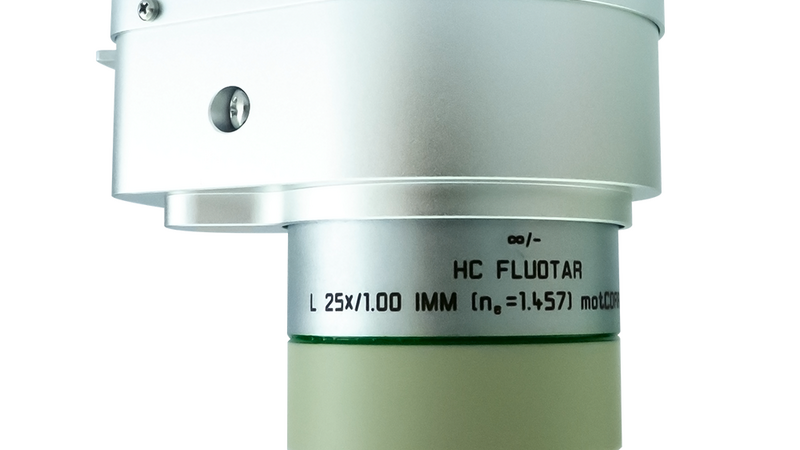

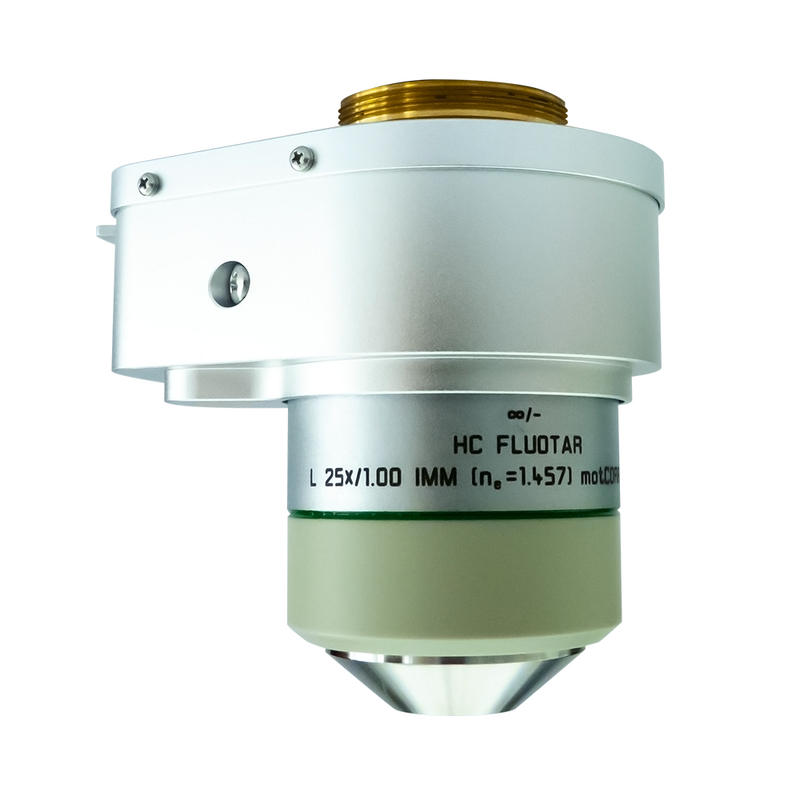

Figure

HC FLUOTAR L 25x/1,0 IMM (ne=1,457) motCORR VISIR

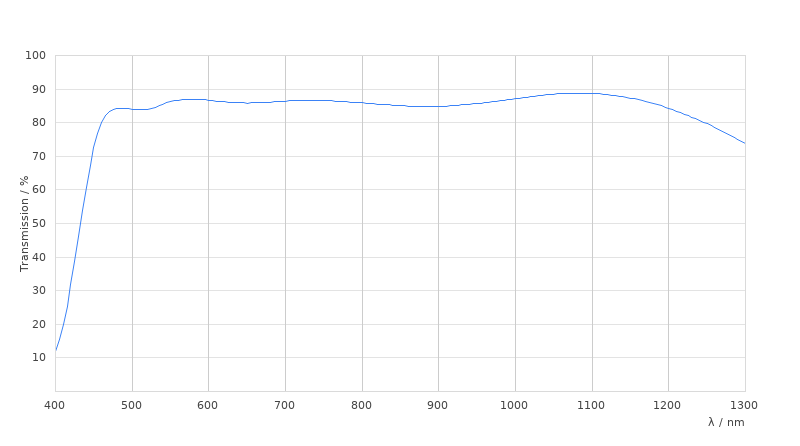

Transmission Curve

HC FLUOTAR L 25x/1,0 IMM (ne=1,457) motCORR VISIR

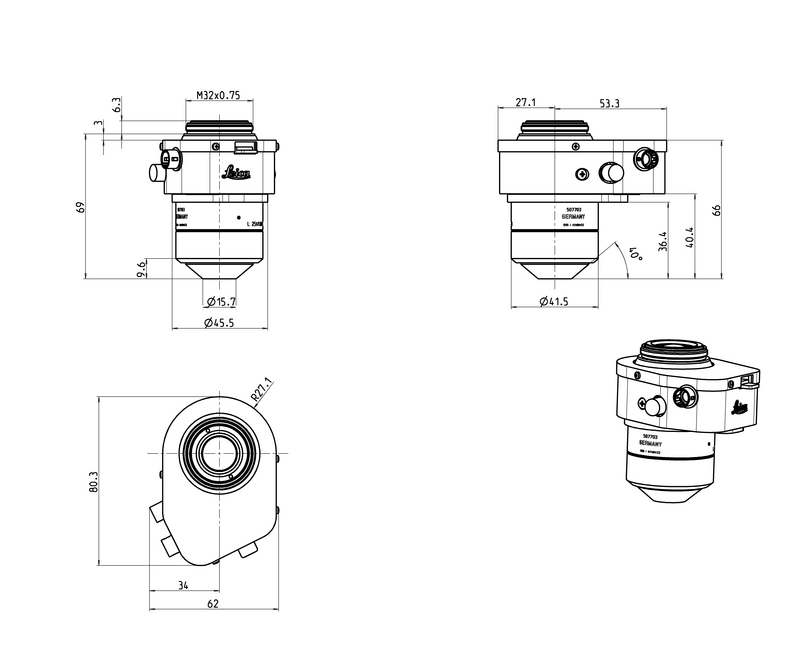

Dimension Sheet

HC FLUOTAR L 25x/1,0 IMM (ne=1,457) motCORR VISIR
