| Article Number | 11507706 |
|---|---|
| Correction Ring (CORR) | motCORR |
| Coverglass | With & without |
| Exit Pupil Position/DIC prism | - |
| Field of View (FOV in mm) | 20 |
| Free Working Distance (WD in mm) | 8.15 |
| Immersion | IMM |
| Iris Diaphragm | Without |
| Magnification | 16⨉ |
| Contrasting Methodes | TL-BF, FLUO |
| Numerical Aperture | 0.8 |
| Objective Thread | M32 |
| Objective Type | HC FLUOTAR L VISIR |
| Spring Loaded | No |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | Electrophysiology, MotCorr, MP |
| Transmission | IR (up to 1300nm) |
Figure

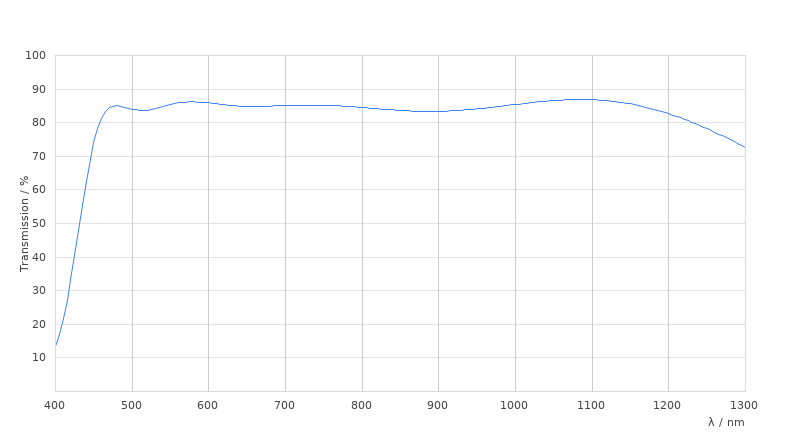

Transmission Curve
Dimension Sheet
