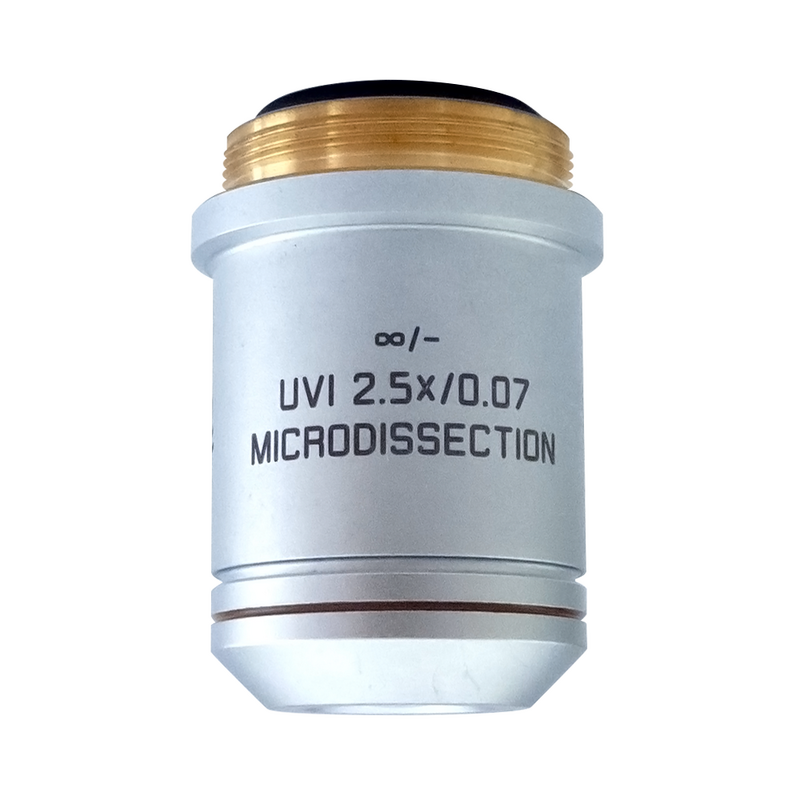

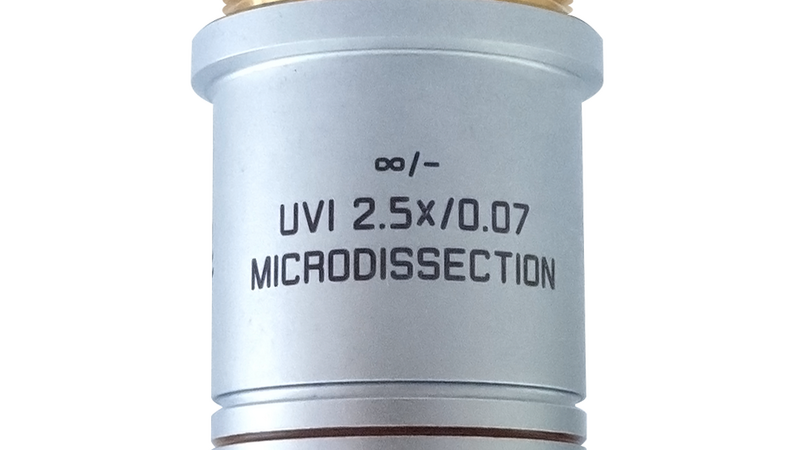

Microscope Objective UVI 2,5x/0,07 MICRODISSECTION
<p>Objective UVI 2,5x/0,07 MICRODISSECTION has a magnification of 2.5X and a numerical aperture of 0.07mm. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 11.7mm and a FN of 22.</p>
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Technical Specs
Article Number | 11518148 |
---|---|
Correction Ring (CORR) | - |
Coverglass | With & without |
Exit Pupil Position/DIC prism | - |
Field Number (FN) | 22 |
Free Working Distance (WD in mm) | 11.7 |
Immersion | Dry |
Iris Diaphragm | Without |
Magnification | 2.5⨉ |
Contrasting Methodes | TL-BF, TL-DF, FLUO |
Numerical Aperture | 0.07 |
Objective Thread | M25 |
Objective Type | HI PLAN |
Spring Loaded | No |
Suitable for AFC (Adaptive Focus Control) | - |
Techniques | LMD |

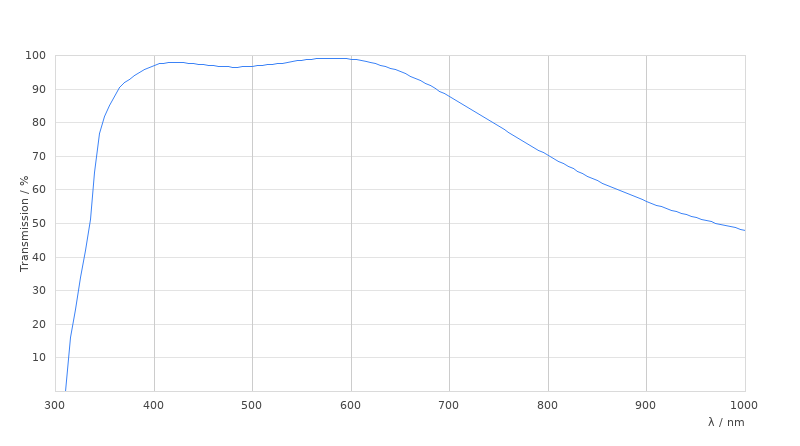

Transmission | UV (340nm) |
