Microscope Objective HC PL FLUOTAR 10x/0.30 MIRAU

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
HC PL FLUOTAR 10x/0.30 MIRAU
HC PL FLUOTAR 10x/0.30 MIRAU
HC PL FLUOTAR 10x/0.30 MIRAU
HC PL FLUOTAR 10x/0.30 MIRAU

Technical Specs

Article Number 11532670
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism -
Field Number (FN) 22
Free Working Distance (WD in mm) 4.27
Immersion Dry
Iris Diaphragm Without
Magnification 10⨉
Contrasting Methodes TL-BF, TL-P, IL-BF, IL-P
Numerical Aperture 0.3
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques IL, Interferometry

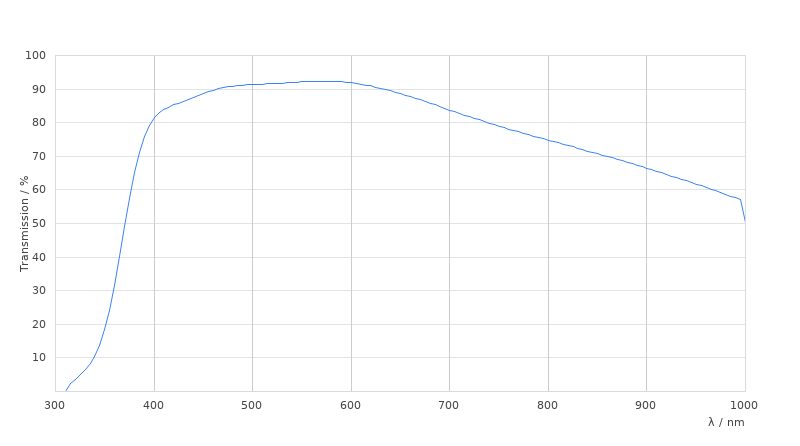

Transmission UV (340nm)
